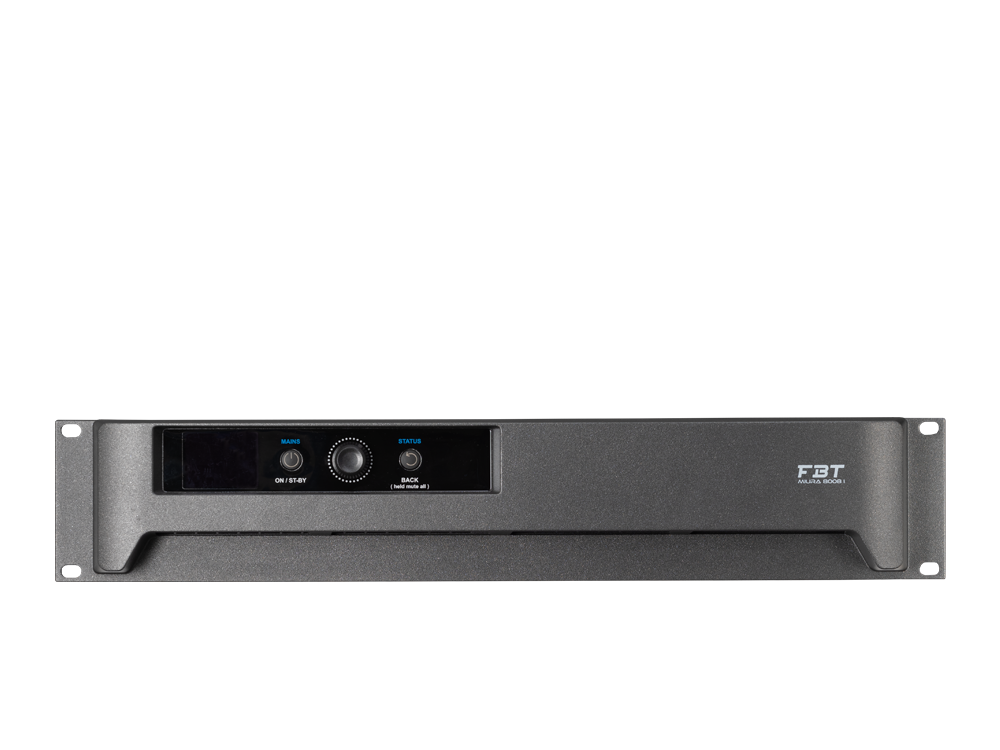

The MIURA 8008I is a high-power, 8-channel Class D amplifier designed for fixed installations requiring flexibility, precision, and reliable high-output performance. Delivering up to 8×1000W at 4Ω, or 4×2000W at 100V in bridge mode, it supports both low-impedance (4/8/16Ω) and high-impedance (70/100V) lines with full asymmetric power distribution. Integrated Dante audio streaming (4 channels) and TCP/IP control (AES70 compatible) via EtherCON ports allow seamless integration into networked systems through INFINITO software. The amplifier also features AES3 digital inputs with link, to ensure compatibility with professional-grade systems. A front OLED display with encoder ensures onboard setup, while Euroblock I/O, GPIO, and comprehensive protection features guarantee safe, long-term operation in demanding installation environments.
Technical Specifications
| Code |
44014 |
| Frequency response |
20 - 20k (-0.5dB , 3dB below rated power) |
| Class |
Class D - PWM modulator with ultra low distortion |
| Protections |
Short Circuit, DC, Undervoltage, Temperature, Overload |
| Net Dimensions (WxHxD) |
482 x 88 x 504 mm / 18.97 x 3.46 x 19.84 inch 2U Rack Mount |
| Net weight |
9 Kg / 19.84 Lb |
