Description

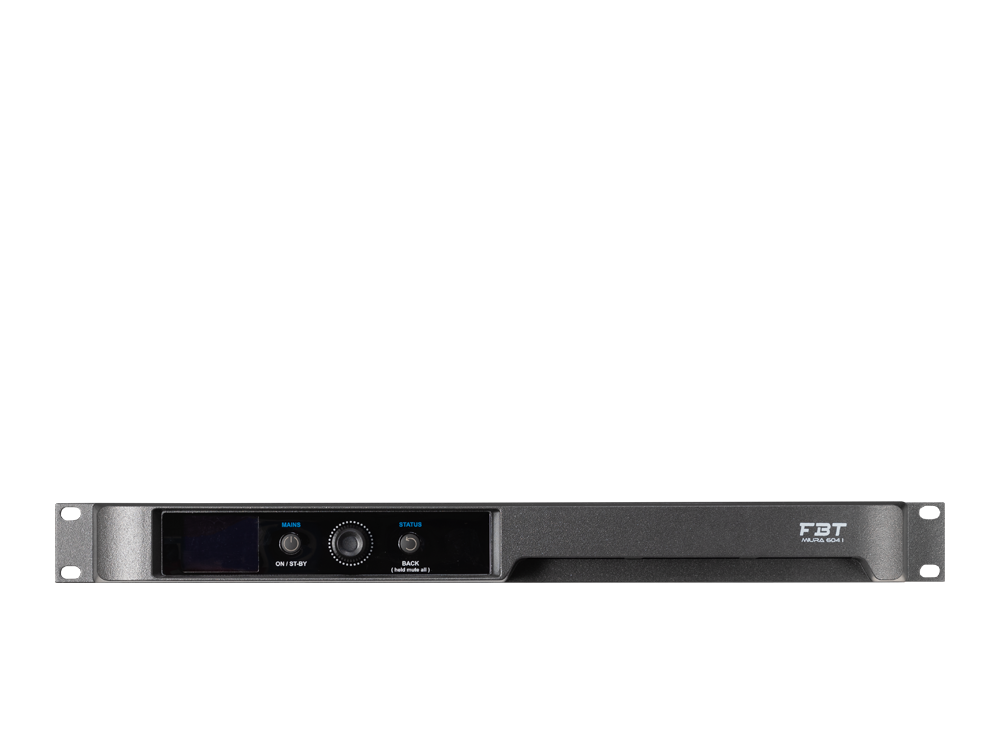

MIURA 604I is a compact 1U, 4-channel Class D amplifier developed for installation applications requiring efficiency, flexibility, and low-profile integration. It delivers 4×150 W at 4–16 Ohm or 2×300 W at 70/100V in bridge mode, supporting both low-impedance and high-impedance systems with full asymmetric loading.
Dante audio streaming (4 channels), TCP/IP network control (AES70), and AES3 digital audio I/O with link are all integrated, enabling complete system configuration via INFINITO software.
The unit features a universal SMPS with Power Factor Correction, an Auto-Standby/Wake function, and a front OLED display for onboard control. Connections include Euroblock I/O, EtherCON ports, 8-channel GPIO, and an IEC 20A power inlet, ensuring safe installation and professional-grade integration.
Technical Specifications
| Code | 45512 |
| Frequency response | 20 - 20k (-0.5dB , 3dB below rated power) |
| Class | Class D - PWM modulator with ultra low distortion |
| Protections | Short Circuit, DC, Undervoltage, Temperature, Overload |
| Net Dimensions (WxHxD) | 482 x 44 x 485 mm / 18.97 x 1.73 x 19.09 inch 1U Rack Mount |
| Net weight | 4.5 Kg / 9.92 |
