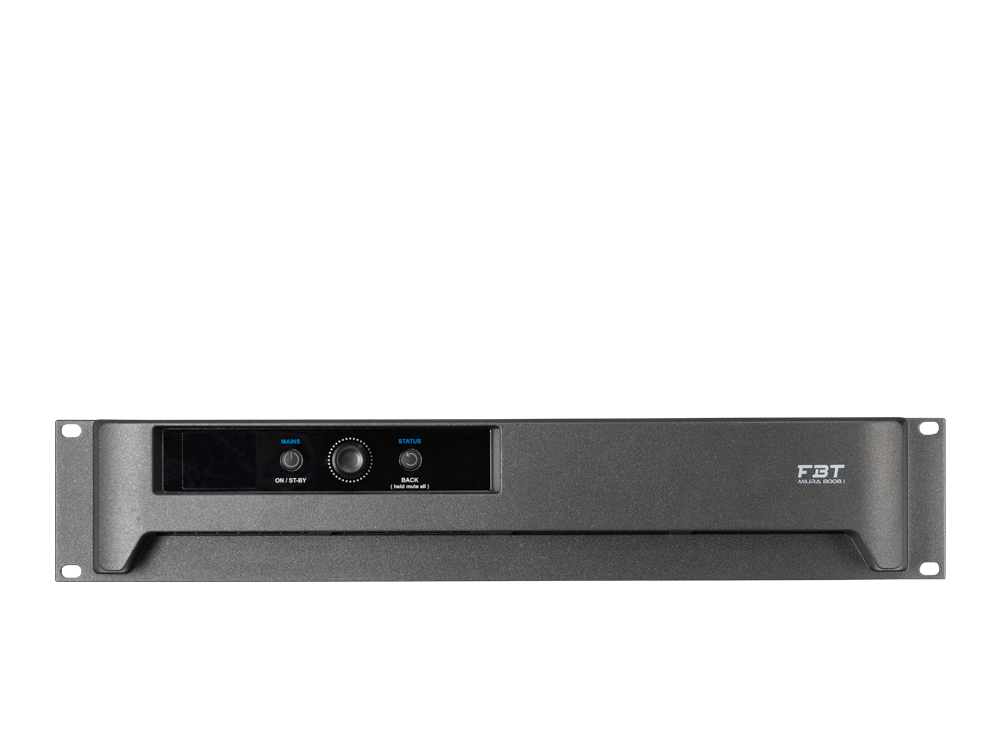

The MIURA 4004I is a high-power 4-channel Class D amplifier housed in a robust 2U chassis, designed for fixed installations and demanding AV applications. It delivers up to 4×1000 W at 4 Ohm, 4×900 W at 70V, or 2×2000 W at 100V in bridge mode, with asymmetric output distribution per channel. The amplifier supports Single-Ended, Bridge, and Parallel modes, offering direct drive to both low and high-impedance systems with extended headroom and efficiency. Network control is enabled via TCP/IP (AES70 compatible) and fully integrated with INFINITO software. A 4-channel Dante receiver, AES3 digital audio input/output with link, and EtherCON ports provide full network integration. The front OLED display with encoder enables onboard configuration, while rear Euroblock I/O and GPIO ensure secure and professional installation.
Technical Specifications
| Code |
45513 |
| Frequency response |
20 - 20k (-0.5dB , 3dB below rated power) |
| Class |
Class D - PWM modulator with ultra low distortion |
| Protections |
Short Circuit, DC, Undervoltage, Temperature, Overload |
| Net Dimensions (WxHxD) |
482 x 88 x 504 mm / 18.97 x 3.46 x 19.84 inch 2U Rack Mount |
| Net weight |
6.7 Kg / 14.77 Lb |
