Blackmagic Mini Converter Optical Fiber 12G, Compact converter for extending SDI connections over massive distances by converting SDI to optical fiber and optical fiber to SDI in both directions at the same time!

Compact converter for extending SDI connections over massive distances by converting SDI to optical fiber and optical fiber to SDI in both directions at the same time!

Make the move to Ultra HD with the world's most advanced 6G-SDI converters!

Blackmagic Mini Converters are the world's most advanced converters because they include the latest 6G-SDI technology, automatically detect the input video format and instantly change between virtually all SD, HD and Ultra HD video standards up to 2160p30! You get advanced features such as redundant SDI inputs, re-clocked loop outputs, HDMI instant lock, 33 point LUT support, and full analog and AES/EBU audio connections so you can convert video, as well as embed or de-embed audio! Choose from a wide range of 3G and 6G-SDI models, depending on the conversion you need!

Mini Converter UpDownCross HD Compact 3G-SDI and HDMI converter for converting any SD or HD video format to any other SD or HD format! Mini Converter UpDownCross HD is a full standards converter that lets you convert any SD or HD video format to any other SD or HD video format using high quality Teranex algorithms! Simply set the output format you need and the input format is automatically converted, protectin g your equipment from receiving an incorrect signal. It's also perfect for connecting HDMI computers to SDI projectors because it scales the computer's video to the broadcast television output standard that you choose. Mini Converter UpDownCross HD features multi rate 3G-SDI connections for working in all formats up to 1080p60 including Level A and B devices plus computer resolution scaling via HDMI in. You also get an HDMI input, reference in, audio delay for perfect AV sync, timecode conversion and both 3G-SDI and HDMI inputs and outputs allowing you to connect to virtually anything!

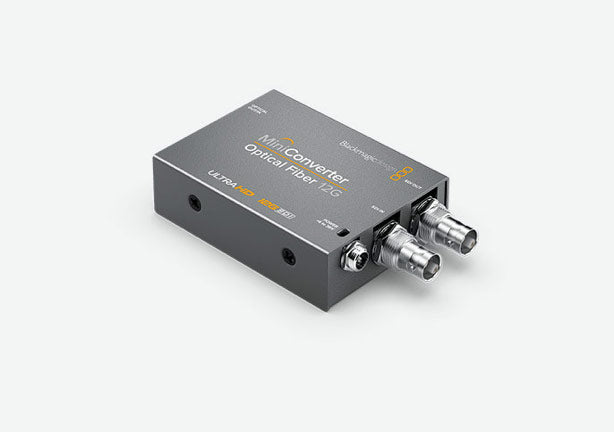

Mini Converter Optical Fiber 12G Extend SDI connections over extremely long distances by converting to optical fiber! Now you can extend SDI massive distances up to 10 miles away! Mini Converter Optical Fiber 12G converts SDI to optical fiber and optical fiber to SDI in both directions at the same time, so it's like getting two converters in one. You can even have different video standards going in each direction! The 12G-SDI connections are multi rate, which makes it compatible with all SD, HD and Ultra HD formats and equipment up to 2160p60, including Level A and B devices. The fiber socket lets you install any standard 3G, 6G or 12G-SDI SFP optical fiber module so you can send SDI using the same low cost optical fiber cables that are commonl y used for computer networks. Plus, the included international power supply has a locking connector so the power cannot be accidentally disconnected!

Broadcast quality SD, HD and Ultra HD converters

The broadcast, post production and AV industry rely on Blackmagic Mini Converters to connect all of their equipment together and keep their studios running. With over 20 different models available, there are Mini Converters with analog, SDI, and HDMI conversions that let you work with virtually all SD, HD and Ultra HD equipment! That means you can connect analog decks to digital equipment, switch HDMI to SDI, de-embed or embed audio, or even extend signals over massive distances with optical fiber! With so many conversion options, there's no limit to the equipment you can connect!

Specifications

Connections

• SDI Video Inputs: 1 x SD, HD and 12G-SDI Video and 1 x Optical Fiber Input.
• SDI Video Outputs: Automatically matches the SD, HD and 12G-SDI video input on the Optical Fiber.
• Optical Fiber Connection (optional): 1 x SMPTE optical fiber SFP socket. Optical fiber SFP module sold separately.
• Optical Fiber Video Inputs: 1 x 10 bit SD/HD/12G-SDI switchable.
• Optical Fiber Video Outputs: Automatically matches the SD, HD and 12G-SDI video input.
• Optical Fiber Audio Inputs: 16 channel embedded.
• Optical Fiber Audio Outputs: 16 channel embedded.
• Multi Rate Support: Auto detection of SD, HD or 12G-SDI.
• Reclocking: Yes

Standards

• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
• 2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
• 4K Video Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE, SMPTE ST-2081, ITU-R BT.656, ITU-R BT.601 and SMPTE 297M for Optical Fiber SDI.
• SDI Video Rates: SDI video inputs are automatically detected between standard definition, high definition, level A or level B 3G-SDI, 6G-SDI and 12G-SDI.
• SDI Video Sampling: 4:2:2 and 4:4:4
• SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.
• SDI Color Precision: 4:2:2 and 4:4:4
• SDI Color Space: YUV and RGB
• SDI Auto Switching: Automatically detects SD, HD or 12G-SDI.
• ASI Support: Yes

Power Requirements

• Power Supply: +12V universal power supply included with international socket adapters for most countries. Cable tie point.
• Power Consumption: 2 Watts
• Operational Voltage Range: 6 - 36V DC

Environmental Specifications

• Operating temperature: 0° to 40° C (32° to 104° F)
• Storage temperature: -20° to 45° C (-4° to 113° F)
• Relative Humidity: 0% to 90% non-condensing

Physical

• Weight: 0.99 lb
