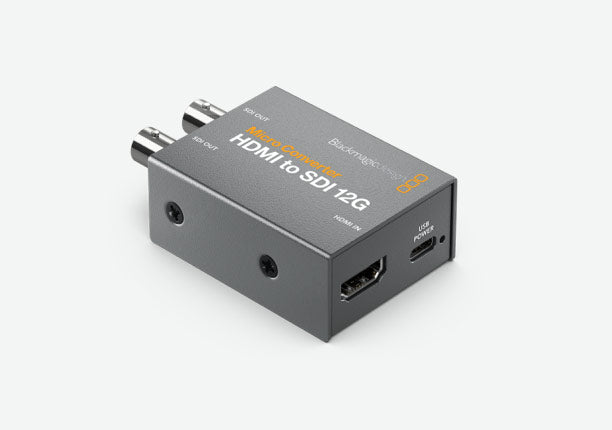

Blackmagic Micro Converter HDMI to SDI 12G, This model is perfect for connecting Ultra HD HDMI cameras and computers to professional 12G-SDI equipment!

This model is perfect for connecting Ultra HD HDMI cameras and computers to professional 12G-SDI equipment! Supports level A or level B formats in 3G video formats, plus supports DCI film rates.

Blackmagic Micro Converters The world's smallest USB powered broadcast converters! The new Blackmagic Micro Converters are incredibly tiny broadcast video converters that let you connect between consumer HDMI and professional SDI equipment. The rugged and miniaturized design makes them small enough to be used anywhere! You get professional 3G-SDI or 12G-SDI connections, depending on the models, so you can work with SD, HD and Ultra HD formats up to 2160p60. Micro Converters use USB for power, so they can be powered directly from televisions or laptop computers. You can even purchase them without power supplies! Only Blackmagic Micro Converters feature custom electronics that conform to global broadcast specifications, and can be updated to new standards in the future.

Six Great Models! Micro Converter SDI to HDMI 3G This model has been specifically designed for professional monitoring. It includes a 17 point 3D LUT for color calibrating any monitor, projector or television. You can even output the 3D LUT on the SDI loop output! Plus it supports DCI film rates including 1080p24, 1080p47.95 and 1080p48.

This model is perfect for connecting HDMI cameras and computers to professional SDI equipment! You get two 3G-SDI outputs which can be set to level A or level B formats. Unlike cheap converters, it even supports feature film video formats including 1080p24, 1080p47.95 and 1080p48.

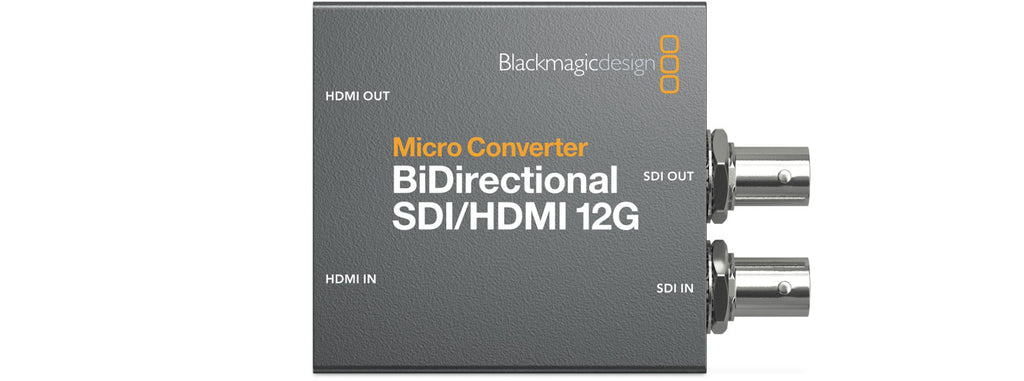

Get the world's smallest bidirectional broadcast quality converter! Convert SDI to HDMI and at the same time HDMI to SDI, even in different formats! Plus it supports camera control protocol conversion, so you can use Blackmagic Pocket Cinema Cameras with professional SDI live production switchers!

Micro Converter SDI to HDMI 12G This model is perfect for monitoring in all SD, HD, 4K and Ultra HD standards up to 2160p60. It includes a 33 point 3D LUT for color calibrating monitors. You can also output the 3D LUT on the 12G-SDI loop output! Plus it supports DCI film rates including 4Kp24, 4Kp47.95 and 4Kp48.

This model is perfect for connecting HDMI cameras and computers to professional SDI equipment! You get two 12G-SDI outputs for connecting to SD, HD or Ultra HD equipment. When working in HD it supports 3G-SDI level A and B. This model also supports film standards including 4Kp24, 4Kp47.95 and 4Kp48.

Specifications

Connections

• SDI Video Outputs: 2 Automatically matches the HDMI input.
• HDMI 2.0 Video Inputs: 1 x type A.
• SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G.
• Multi Rate Support: Auto detection of SD, HD, 2K, Ultra HD and 4K.
• Updates, Configurations and Power: USB Type-C.
• Reclocking: Yes

Standards

• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
• 4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE 2108-1
• SDI Video Rates: SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI.
• SDI Color Precision: 4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color.
• SDI Color Space: YUV
• SDI Auto Switching: Automatically detects SD, HD, Ultra HD and 4K DCI. Level A and B is user selectable on output for 3G-SDI.
• HDMI Video Standards: 525i59.94 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
• HDMI Color Precision: 4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color.
• HDMI Color Space: YUV

Power Requirements

• Power Consumption: 4W max.
• Operational Voltage Range: 4.4V to 5.25V DC

Environmental Specifications

• Operating Temperature: 0° to 40° C (32° to 104° F)
• Storage Temperature: -20° to 60° C (-4° to 140° F)
• Relative Humidity: 0% to 90% non-condensing

Physical

• Weight: 0.35 lb
• Dimensions: 3 1/4"x2"x1 1/8"
