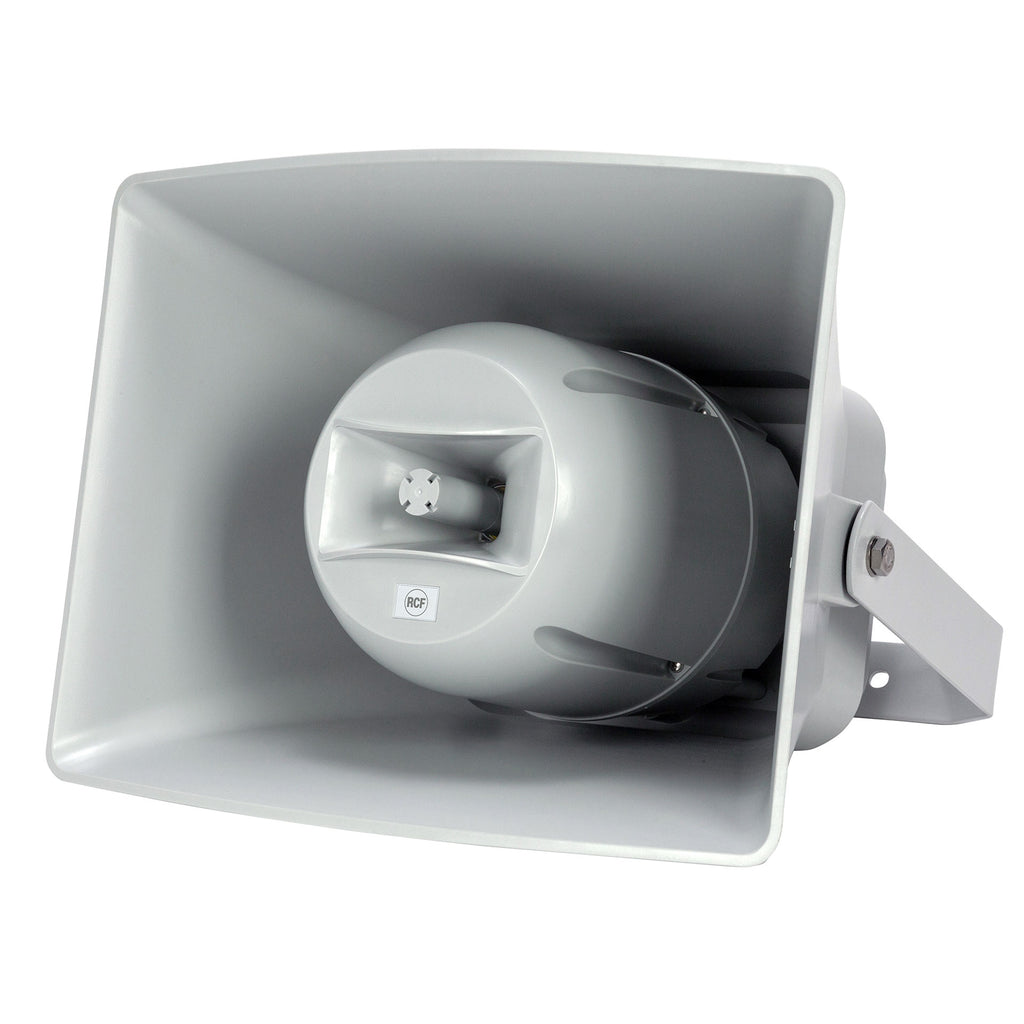

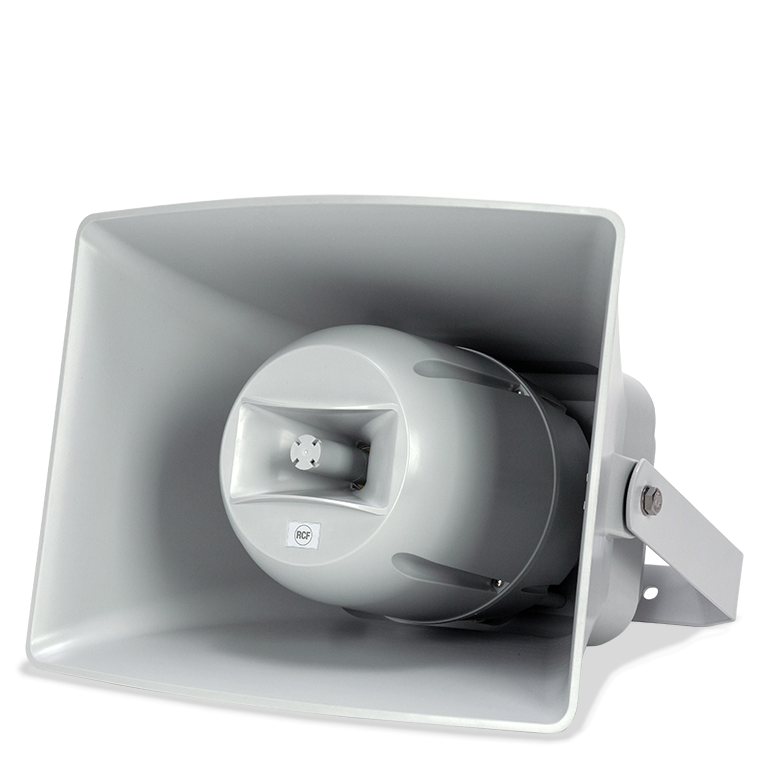

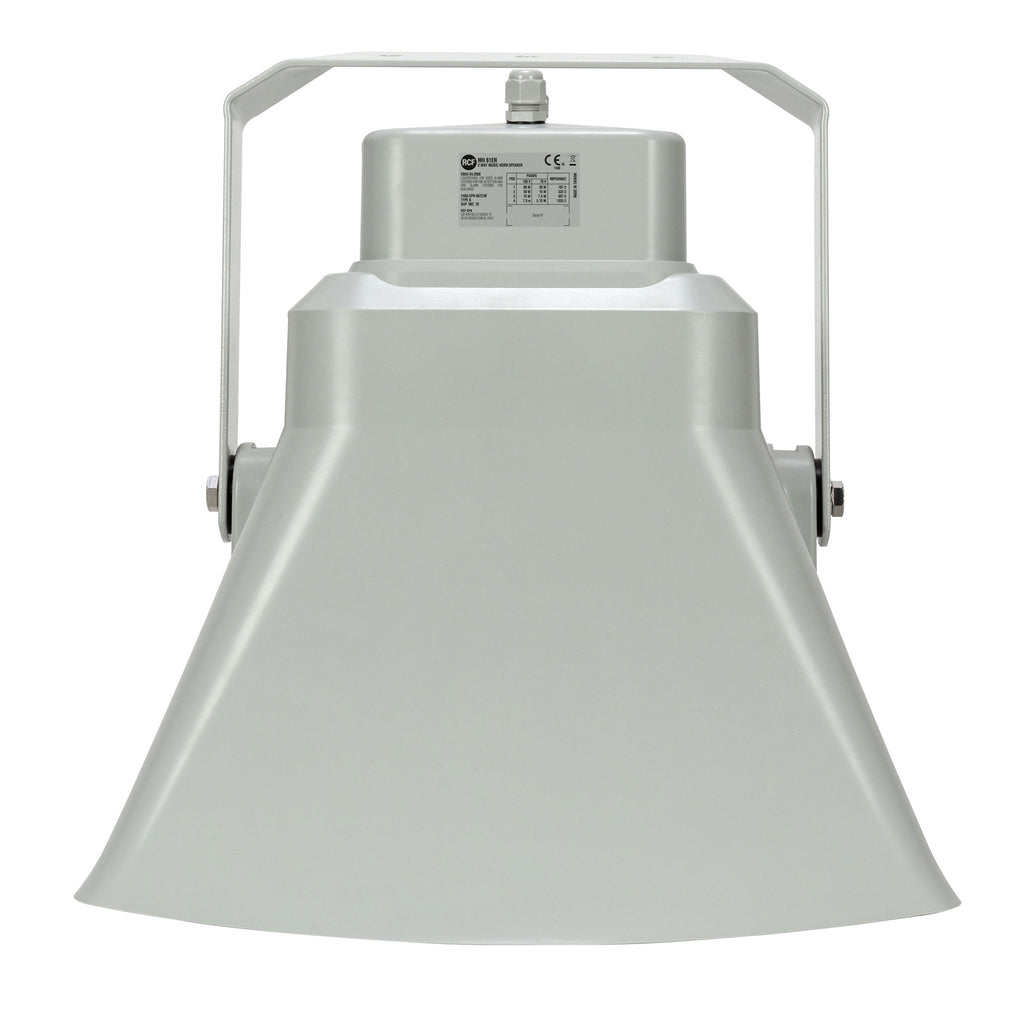

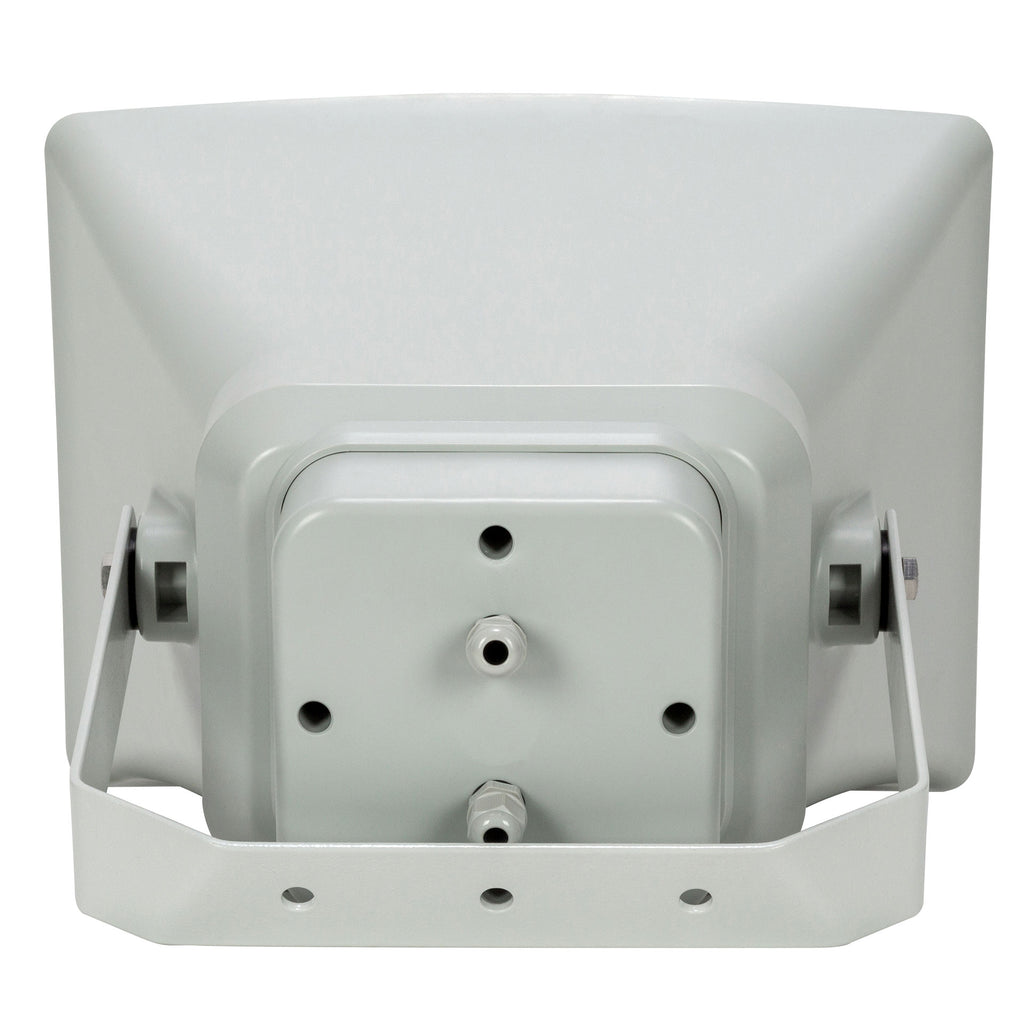

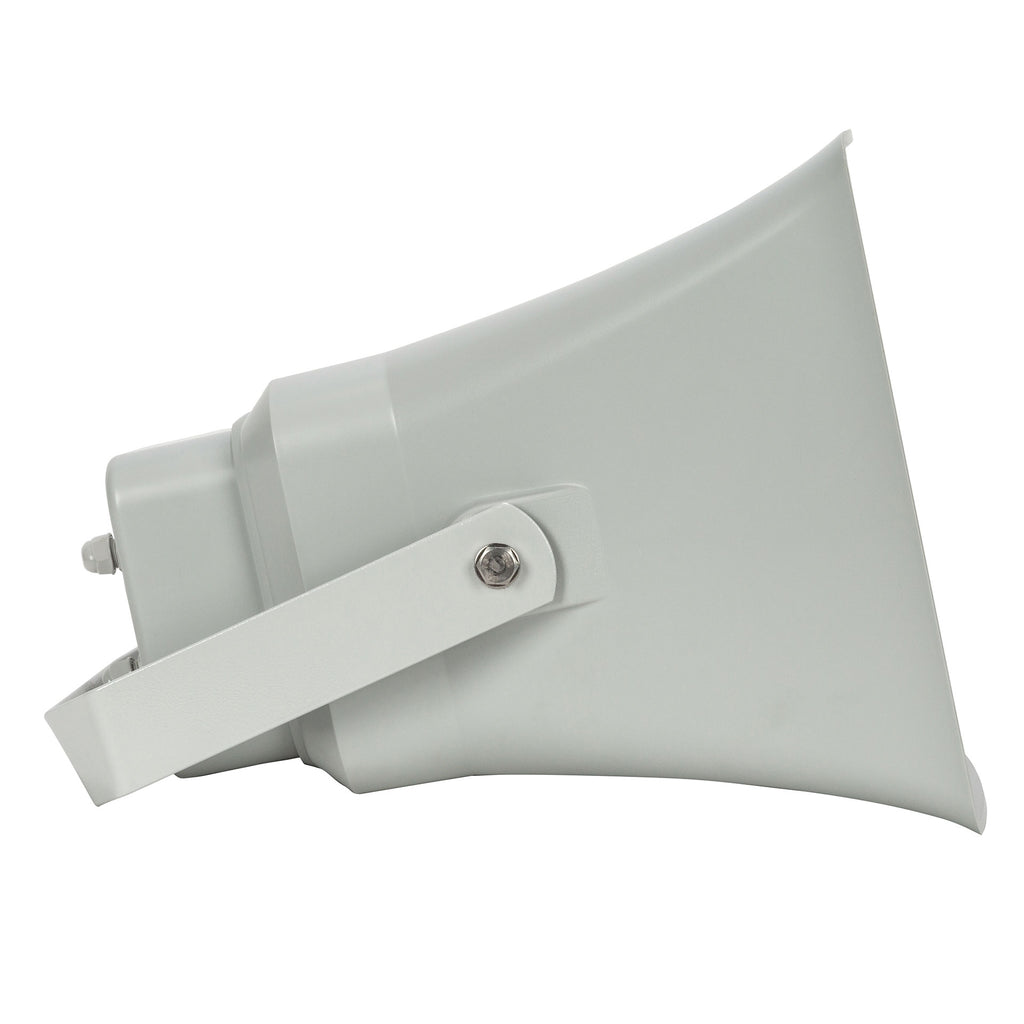

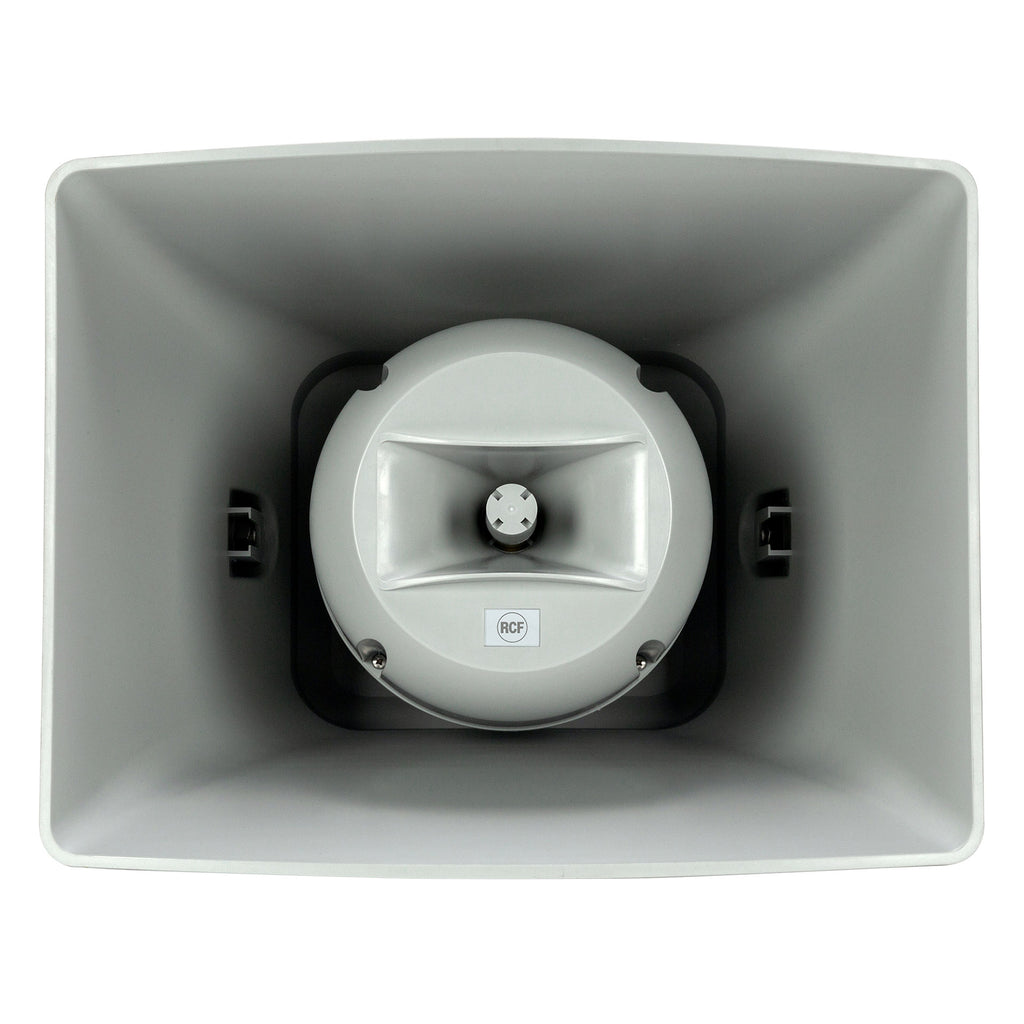

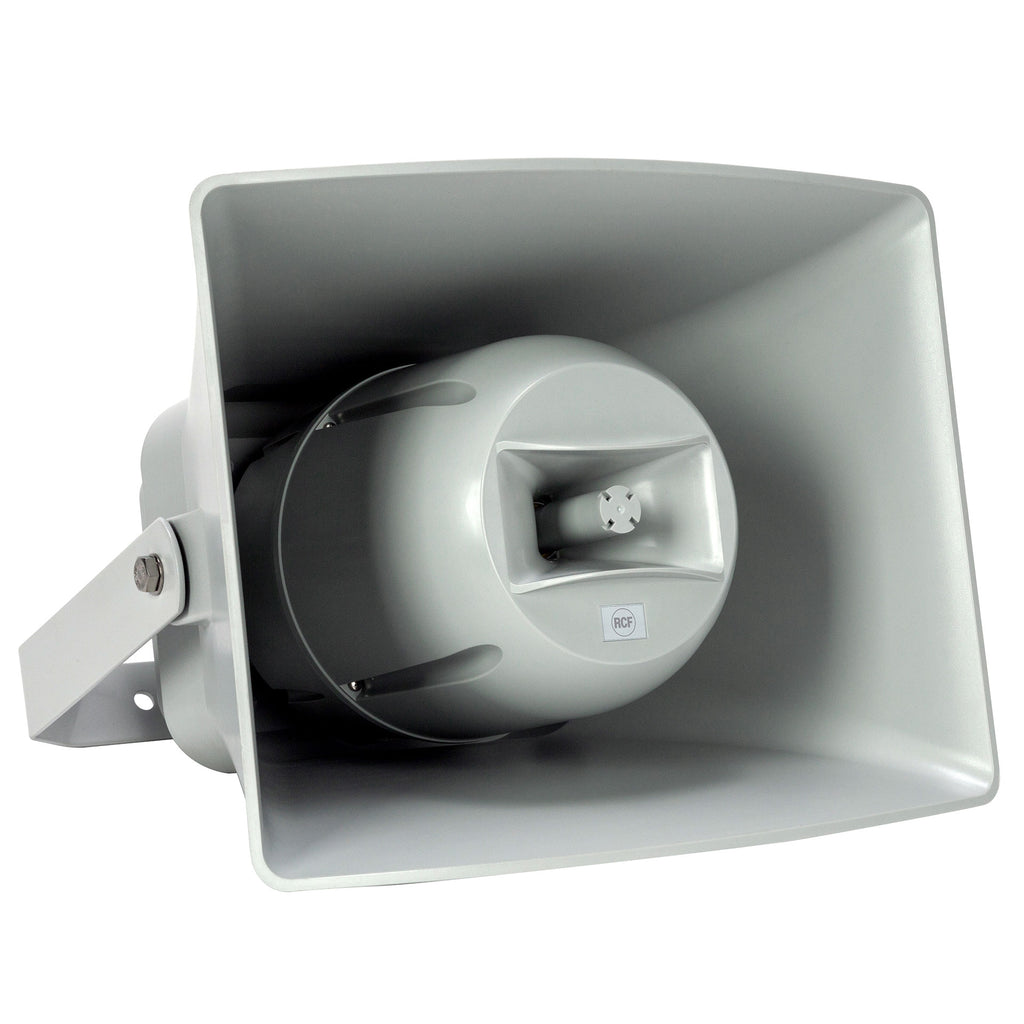

VOICE ALARM EN54 | COMMERCIAL | INSTALLED | MH 61EN | TWO-WAY PLASTIC HORN SPEAKER | 6.5" woofer with 1" dome tweeter.
Technical Specifications
| Acoustical specifications |
| Frequency Response (-10dB) |
100 Hz - 20000 Hz |
| Max SPL @ 1m |
115 dB |
| Max SPL @ 4m |
103 dB |
| Horizontal coverage angle |
70° |
| Vertical coverage angle |
90° |
| System Sensitivity |
99 dB |
| System Sensitivity 1W @ 4m |
87 dB |
| Power section |
| Nominal Impedance |
8 ohm |
| Power Handling |
60 W |
| Peak Power Handling |
240 W PEAK |
| Protections |
Thermal fuse |
| Recommended Amplifiers |
DXT 3000, DXT 4000, DXT 7000 |
| Transducers |
| Dome Tweeter |
1 x 1.0'' |
| Woofer |
1 x 6.5'' |
| Input/Output section |
| Input connectors |
Ceramic screw terminals |
| Output connectors |
Constant Voltage Transformer |
| 100 V |
Power selection 1 |
| 60 W - 167 ohm |
Power selection 2 |
| 30 W - 333 ohm |
Power selection 3 |
| 15 W - 667 ohm |
Power selection 4 |
| 7.5 W - 1333 ohm |
| Standard compliance |
| IP protection grade |
IP 66 |
| Safety agency |
CE compliant |
| EN54-24 certified |
Yes |
| CPR number |
1488-CPR-0672/W |
| Physical specifications |
| Cabinet/Case Material |
ABS |
| Hardware |
Steel bracket |
| Color |
Grey - RAL 7035 |
| Size / Weight |
| Height |
332 mm / 13.07 inches |
| Width |
418 mm / 16.46 inches |
| Depth |
391 mm / 15.39 inches |
| Weight |
7.35 kg / 16.2 lbs |
| Shipping information |
| Package Height |
450 mm / 17.72 inches |
| Package Width |
360 mm / 14.17 inches |
| Package Depth |
430 mm / 16.93 inches |
| Package Weight |
8.6 kg / 18.96 lbs |
