Description

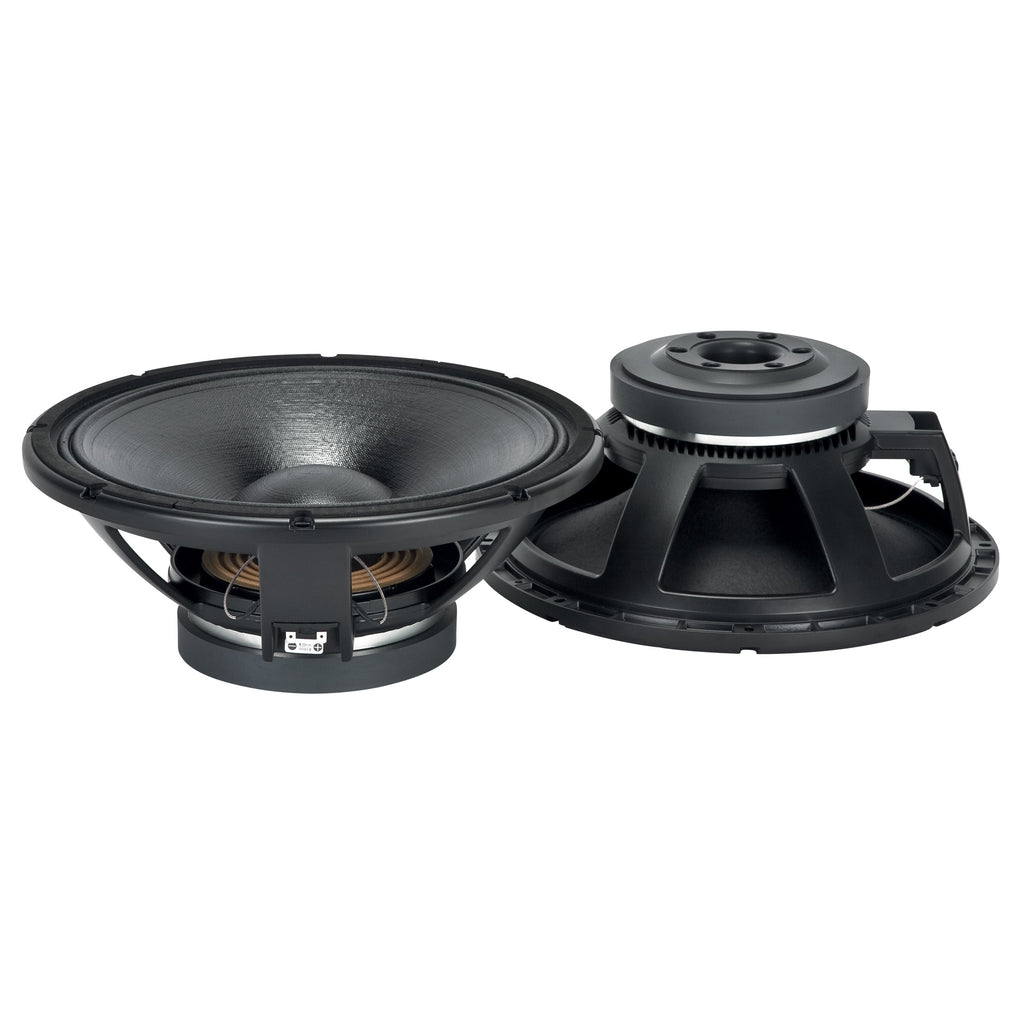

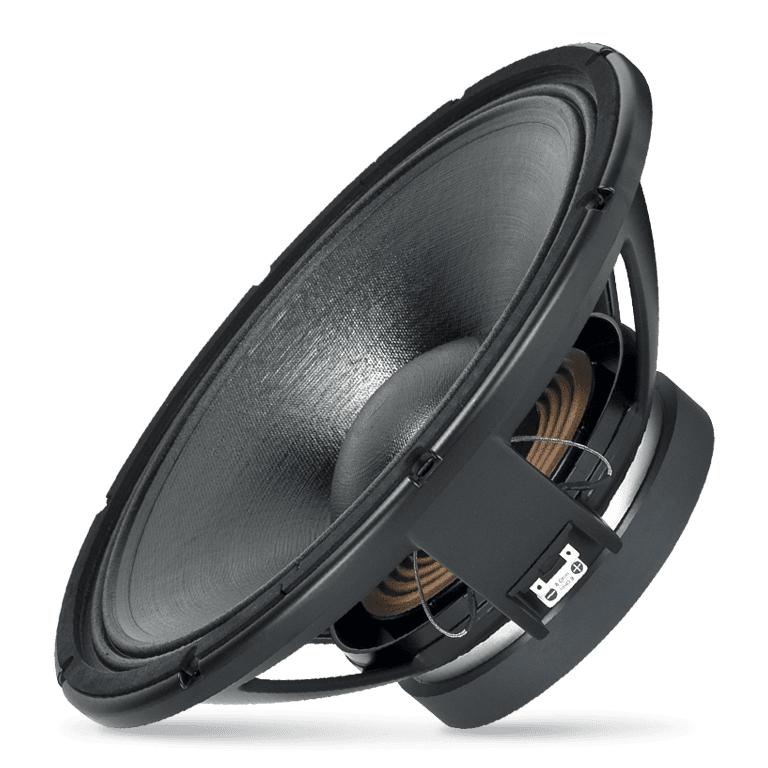

The MB15N351 is designed to provide an excellent frequency response linearity with very low distortion. A very strong neodymium magnetic structure guarantee dynamic and precision, a new and unique 3,5" voice coil design provides a very high power handling, especially recommended in comparison to a standard 3" voice coil. The new dual forced hyper-venting system guarantee a very efficient voice coil ventilation for minimum power compression and incredible power handling.
Features
- 3.5-inch, fiberglass inside/outside copper voice coil
- 1400W continuous program power handling
- 99 dB Sensitivity
- 40 Hz - 2.5 kHz Frequency range
- Dual Forced Hyperventing System
- Dual spider design with silicon based dampening control
- M-roll surround and corrugated straight cone geometry
Specifications
| General specifications | |
| Nominal Diameter | 15 inch / 381 mm |
| Rated Impedance | 8 ohm |
| Program Power (watt) | 1400 W |
| Power handling capacity | 700 W |
| Sensitivity | 99.0 dB |
| Frequency range | 40 - 2500 Hz |
| Effective piston diameter | 330 mm / 12.99 inch |
| Max. Excursion Before Damage | 40 mm / 1.57 inch |
| Minimum Impedance (ohm) | 6.5 ohm |
| Voice Coil Diameter | 3.5 inch / 89 mm |
| Voice Coil Winding Material | Copper |
| Voice Coil Length | 19 mm / 0.75 inch |
| Number of layers | 2 |
| Kind of layers | inside/outside |
| Top Plate Thickness | 10 mm / 0.39 inch |
| Cone Design | Curved |
| Surround Material | Polycotton |
| Surround Design | M-roll |
| Magnets | Ceramic |
| Dual-force air ventilation | Yes |
| Spider | 03 |
| Thiele - small parameters | |
| Resonance frequency (Fs) | 46 Hz |
| DC resistance (Re) (ohm) | 5.40 ohm |
| Mechanical factor | 6.70 Qms |
| Electrical factor | 0.33 Qes |
| Total factor | 0.31 Qts |
| Bl factor (Bl) (T x m) | 22.80 T x m |
| Effective moving mass (Mms) | 106.0 g |
| Equivalent Cas air loaded (Vas) | 114.0 liters |
| Effective piston area (Sd) | 0.090 m2 |
| Max. linear excursion (Xmax) | 7 mm |
| Voice coil inductance @ 1kHz (Le1k) | 0.90 mH |
| Half-space efficency (Eff) | 3.20% |
| Mounting information | |
| Overall diameter | 393 mm / 15.47 inches |
| Bolt circle diameter | 371-376 mm / 14.61-14.8 inch |
| Bolt hole diameter | 7 mm / 0.28 inch |
| Front mount baffle cut-out | 354 mm / 13.94 inch |
| Rear mount baffle cut-out | 354 mm / 13.94 inch |
| Volume occupied by the driver | 4.5 liters / 0.18 ft3 |
| Standard compliance | |
| Safety agency | CE compliant |
| Size / Weight | |
| Height | 167 mm / 6.57 inches |
| Diameter | 393 mm / 15.47 inches |
| Weight | 8.2 kg / 18.08 lbs |
| Shipping information | |
| Package Height | 209 mm / 8.23 inches |
| Package Width | 439 mm / 17.28 inches |
| Package Depth | 434 mm / 17.09 inches |
| Package Weight | 9.5 kg / 20.94 lbs |
