Description

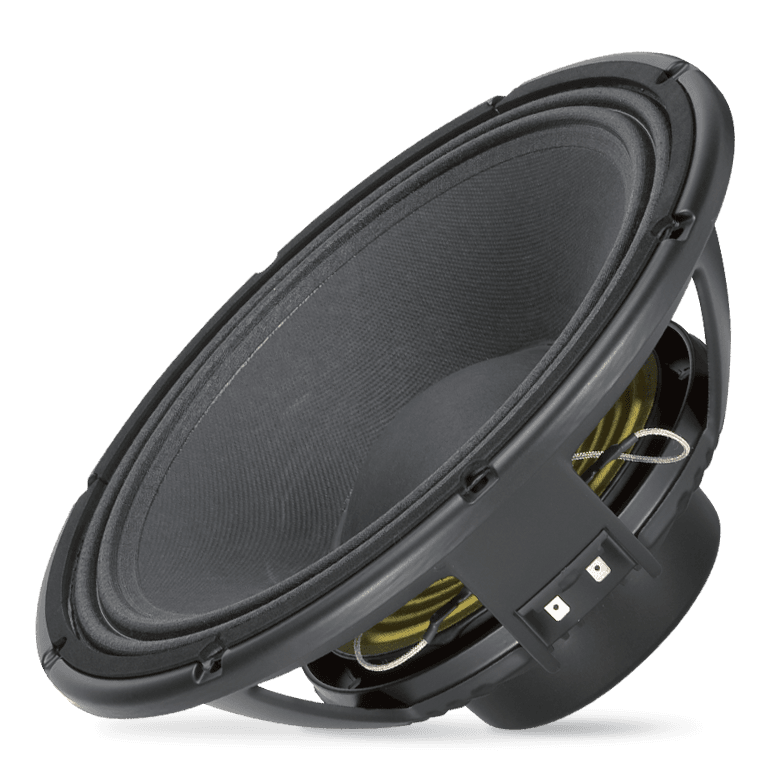

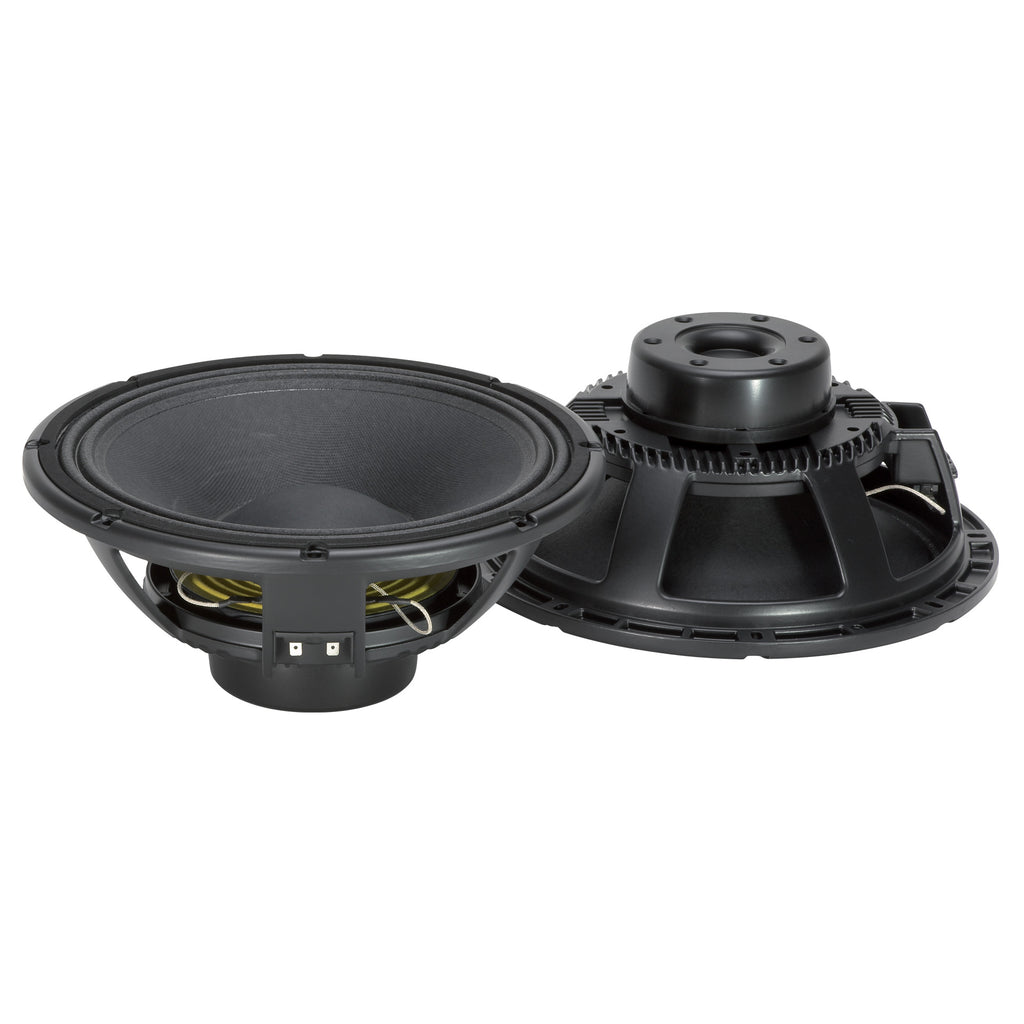

The MB12N351 is designed to provide an excellent frequency response linearity with very low distortion. A very strong neodymium magnetic structure guarantee dynamic and precision, a new and unique 3.5" voice coil design provides a very high power handling, especially recommended in comparison to a standard 3" voice coil. The unique Dual-forced air venting system guarantee a very efficient voice coil ventilation to minimize the power compression and provide higher power handling.
Features
- 3.5-inch, fiberglass inside/outside copper voice coil
- 1300W continuous program power handling
- 99 dB Sensitivity
- 45 Hz - 3 kHz Frequency range
- Dual-forced air ventilation for minimum power compression
- Single spider design with silicon based damping control
Specifications
| General specifications | |
| Nominal Diameter | 12 inch / 305 mm |
| Rated Impedance | 8 ohm |
| Program Power (watt) | 1300 W |
| Power handling capacity | 650 W |
| Sensitivity | 99.0 dB |
| Frequency range | 45 - 3000 Hz |
| Effective piston diameter | 260 mm / 10.24 inch |
| Max. Excursion Before Damage | 39 mm / 1.54 inch |
| Minimum Impedance (ohm) | 7.0 ohm |
| Voice Coil Diameter | 3.5 inch / 89 mm |
| Voice Coil Winding Material | Copper |
| Voice Coil Length | 17 mm / 0.67 inch |
| Number of layers | 2 |
| Kind of layers | inside/outside |
| Top Plate Thickness | 11 mm / 0.43 inch |
| Cone Design | Curved |
| Surround Material | Polycotton |
| Surround Design | M-roll |
| Magnets | Neodymium |
| Dual-force air ventilation | Yes |
| Spider | 02 |
| Thiele - small parameters | |
| Resonance frequency (Fs) | 55 Hz |
| DC resistance (Re) (ohm) | 5.60 ohm |
| Mechanical factor | 4.50 Qms |
| Electrical factor | 0.21 Qes |
| Total factor | 0.20 Qts |
| Bl factor (Bl) (T x m) | 22.50 T x m |
| Effective moving mass (Mms) | 54.0 g |
| Equivalent Cas air loaded (Vas) | 61.0 liters |
| Effective piston area (Sd) | 0.050 m2 |
| Max. linear excursion (Xmax) | 6 mm |
| Voice coil inductance @ 1kHz (Le1k) | 1.65 mH |
| Half-space efficency (Eff) | 4.66% |
| Mounting information | |
| Overall diameter | 320 mm / 12.6 inches |
| Bolt circle diameter | 293-304 mm / 11.54-11.97 inch |
| Bolt hole diameter | 7 mm / 0.28 inch |
| Front mount baffle cut-out | 282 mm / 11.1 inch |
| Rear mount baffle cut-out | 284 mm / 11.18 inch |
| Volume occupied by the driver | 2.2 liters / 0.09 ft3 |
| Standard compliance | |
| Safety agency | CE compliant |
| Size / Weight | |
| Height | 151 mm / 5.94 inches |
| Diameter | 320 mm / 12.6 inches |
| Weight | 4.5 kg / 9.92 lbs |
| Shipping information | |
| Package Height | 210 mm / 8.27 inches |
| Package Width | 360 mm / 14.17 inches |
| Package Depth | 360 mm / 14.17 inches |
| Package Weight | 5.49 kg / 12.1 lbs |
