Description

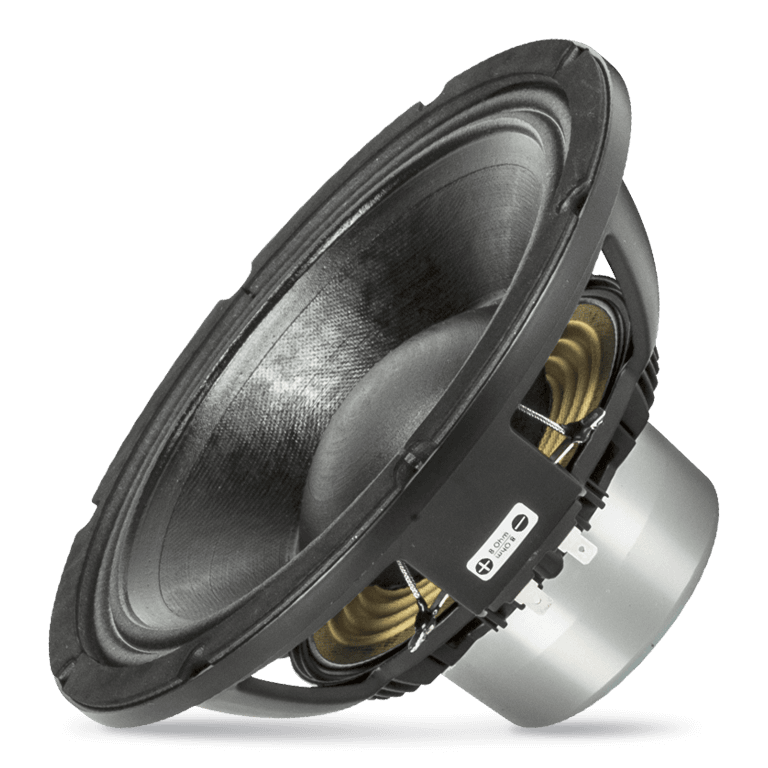

The MB10N305 is a hypervented neo, high linearity mid-bass. The magnetic structure is powered by a large neodymium magnet that provides an extremely high flux density in the gap. The new hyper-vented aluminium basket and magnetic assembly design provide an excellent heat dissipation and lower power compression. Special airforced ventilations are provided for voice coil, magnet assembly and basket. M-roll surround and spider design offer great linearity and precise reproduction.
Features
- 3-inch, fibreglass inside/outside aluminium voice coil
- 1000W continuous program power handling
- 97.5 dB Sensitivity
- 55 Hz - 3.5 kHz Frequency range
- Dual-forced air ventilation for minimum power compression
- M-roll surround and exponential cone geometry
Specifications
| General specifications | |
| Nominal Diameter | 10 inch / 254 mm |
| Rated Impedance | 8 ohm |
| Program Power (watt) | 1000 W |
| Power handling capacity | 500 W |
| Sensitivity | 97.5 dB |
| Frequency range | 55 - 3500 Hz |
| Effective piston diameter | 210 mm / 8.27 inch |
| Max. Excursion Before Damage | 34 mm / 1.34 inch |
| Minimum Impedance (ohm) | 6.9 ohm |
| Voice Coil Diameter | 3.0 inch / 76 mm |
| Voice Coil Winding Material | Aluminum |
| Voice Coil Length | 14 mm / 0.55 inch |
| Number of layers | 1 |
| Kind of layers | inside/outside |
| Top Plate Thickness | 10 mm / 0.39 inch |
| Cone Design | Curved |
| Surround Material | Polycotton |
| Surround Design | M-roll |
| Magnets | Neodymium |
| Hypervented magnetic structure | Yes |
| Spider | 01 |
| Thiele - small parameters | |
| Resonance frequency (Fs) | 60 Hz |
| DC resistance (Re) (ohm) | 5.60 ohm |
| Mechanical factor | 4.00 Qms |
| Electrical factor | 0.24 Qes |
| Total factor | 0.23 Qts |
| Bl factor (Bl) (T x m) | 18.50 T x m |
| Effective moving mass (Mms) | 37.0 g |
| Equivalent Cas air loaded (Vas) | 31.0 liters |
| Effective piston area (Sd) | 0.040 m2 |
| Max. linear excursion (Xmax) | 5 mm |
| Voice coil inductance @ 1kHz (Le1k) | 0.90 mH |
| Half-space efficency (Eff) | 2.90% |
| Mounting information | |
| Overall diameter | 260 mm / 10.24 inches |
| Bolt circle diameter | 241-246 mm / 9.49-9.69 inch |
| Bolt hole diameter | 6 mm / 0.24 inch |
| Front mount baffle cut-out | 234 mm / 9.21 inch |
| Rear mount baffle cut-out | 234 mm / 9.21 inch |
| Volume occupied by the driver | 1.4 liters / 0.06 ft3 |
| Standard compliance | |
| Safety agency | CE compliant |
| Size / Weight | |
| Height | 126 mm / 4.96 inches |
| Diameter | 260 mm / 10.24 inches |
| Weight | 3.2 kg / 7.05 lbs |
| Shipping information | |
| Package Height | 169 mm / 6.65 inches |
| Package Width | 289 mm / 11.38 inches |
| Package Depth | 289 mm / 11.38 inches |
| Package Weight | 3.8 kg / 8.38 lbs |
