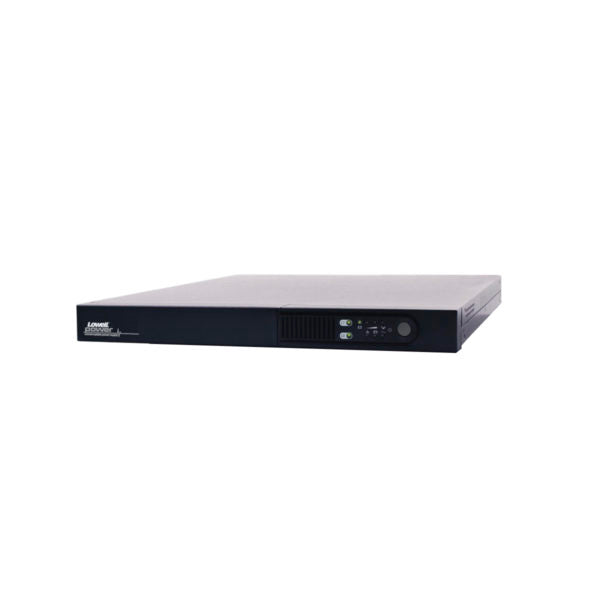

UPS9AC-1000: Online UPS, 1000VA (800W), 1U

Online double conversion UPS solution offers power conditioning and outage protection in a compact 1U format. Includes standard 3-year warranty (optional 5-year extended warranty available).

SPECIFICATIONS

• Power Rating:  1000VA (800W)
• Receptacles:  (3) NEMA 5-15R
• Line Cord:  C14 inlet, 5 ft. 5-15P to C13 line cord
• Chassis:  17.2 x 17.8 x 1.7 in. (1U)
• Weight (approx.):  28 lbs.
• Battery Quantity/Size:  (4) 6V 290W
• Battery Run Times:  20 minutes (50% load); 8 minutes (100% load).
  Note: Battery run times will vary based on condition, age, cycles, and ambient temperature.
• Output Voltage: 120VAC
• Pure sine wave output
• Efficient operation: up to 98%
• Hot swappable battery
• Fast recharge
• 4-point rail kit
• 3 year warranty (electronics, battery)

COMPLIANCE & CERTIFICATION

• UL Listed
• RoHS compliant
• TAA compliant

A&E SPECIFICATIONS

• The uninterruptible power supply (UPS) shall be Lowell model UPS9AC-1000, which shall include a 4-point rackmount rail kit. The chassis shall measure 17.2"x 17.8" x 1.7". The UPS shall operate on 120VAC/60Hz current. Power rating shall be 1000VA. The unit shall feature 3 NEMA 5-15 receptacles and include a power cord with plug. The UPS shall feature a run time of 20 minutes (half load) or 8 minutes (full load).
