Lowell RPC-15U
Roll over image to zoom in Click on image to zoom
Lowell RPC-15U

Lowell RPC-15U

Save $31.07
LowellSKU: RPC-15U
Price:
$227.85 $258.92

Description



RPC-15-U: Standalone RPC (classic, 15A,IEC)

The remote power control can be combined with a variety of switches or sequencers that provide dry contact closure or voltage trigger, for an intrinsically safe, low voltage method of controlling AC power to equipment at remote locations. This model features IEC C14 input and C13 outlets.


FEATURES

  • Chassis:  Steel with black finish, 7.5 in. x 3.25 in. x 1.75 in
  • Power Rating:  100-240VAC, 50/60Hz, 15A
  • Power Inlet:  IEC C14
  • Power Outlets:  IEC C13 duplex

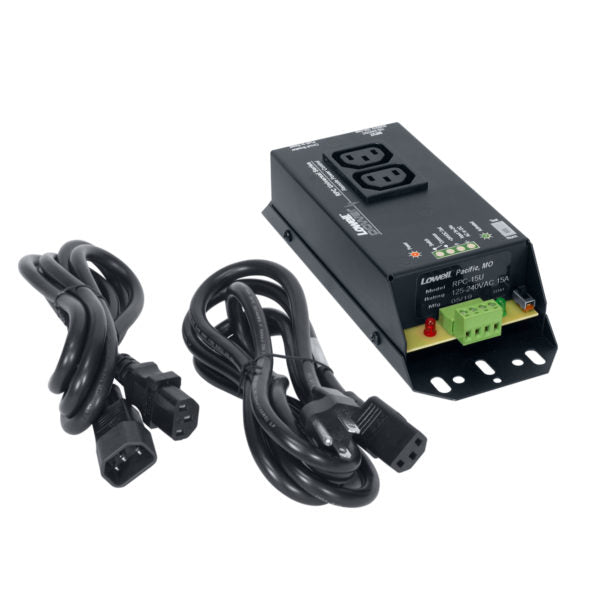

  • Termination:  Includes two 6-ft. cords (C13 to NEMA 5-15P, and C13 to C14)
  • Activation:  Requires connection to external trigger (SPST switch, power sequencer, independent control system with dry contact closure, or DSP voltage connection)

COMPLIANCE & CERTIFICATION

  • ETL Listed (U.S., Canada)
  • Made in U.S.A. with global components

A&E SPECIFICATIONS

  • The device for remotely controlling AC power shall be Lowell model #RPC-15-U, which shall be a 7.5”L x 3.25”W x 1.75”H steel chassis with black powder epoxy finish. Power rating shall be 100-240VAC. The remote power control shall feature one IEC C13 duplex power outlet with 15A power rating and an IEC C14 power inlet. It shall include two 6 ft. cords (C13 to NEMA 5-15P and C13 to C14). Activation shall be via an external control switch or sequencer with dry contact closure, or a voltage trigger source.
