Lowell R7810-72
Roll over image to zoom in Click on image to zoom
Lowell R7810-72

Lowell R7810-72

Save $10.26
LowellSKU: R7810-72-
Price:
$75.24 $85.50

Description

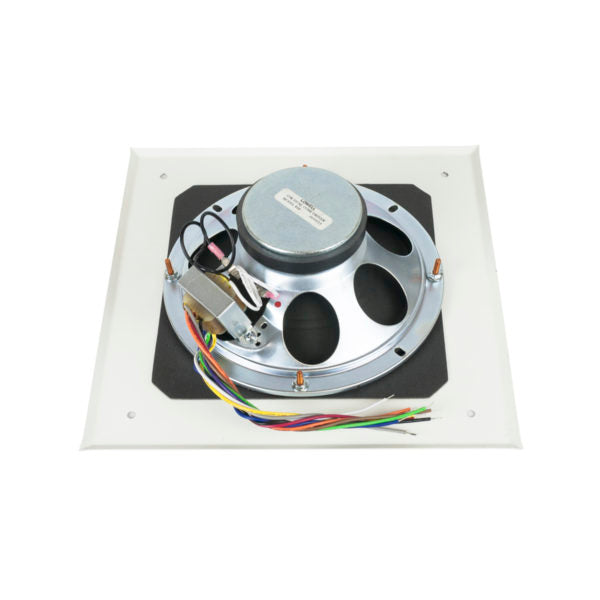

Speaker-Grille Assembly #R7810-72

The speaker-grille assembly, R7810-72, includes an 8 inch driver, transformer and grille. It's designed for general paging and distributed music, to provide consistent performance with clear intelligibility and wide dispersion, where installed cost is a prime consideration.


PERFORMANCE

  • Background music, paging

INCLUDES

  • Driver:  8 in. 15W dual cone driver with 10 oz. ceramic magnet. Cone is molded of a high fiber content material to provide smooth extended frequency response and a clean natural sound.
  • Transformer:  25V/70V transformer. Taps at .25, .5, 1, 2, 5W.
  • Grille:  11.44 in. square steel screw-mount grille. White.

COMPLIANCE & CERTIFICATION

  • Made in U.S.A. with global components

A&E SPECIFICATIONS

  • The speaker-grille assembly shall be Lowell Model No. R7810-72, which shall include an 8 inch dual cone driver with wired transformer and square screw-mount grille. The driver shall have 15 watt RMS power rating and shall employ a 10 oz. ceramic magnet and molded high fiber cone. Frequency response shall be 54Hz-11.6kHz (±6dB); 50Hz-20kHz (±6.6dB) with sensitivity of 97.9dB avg. measured 1W/1M. The wired dual voltage transformer shall be 25/70V with primary taps at .25, .5, 1, 2, and 5W. The steel grille shall be mounted to the driver and have a white powder epoxy finish.
