Description

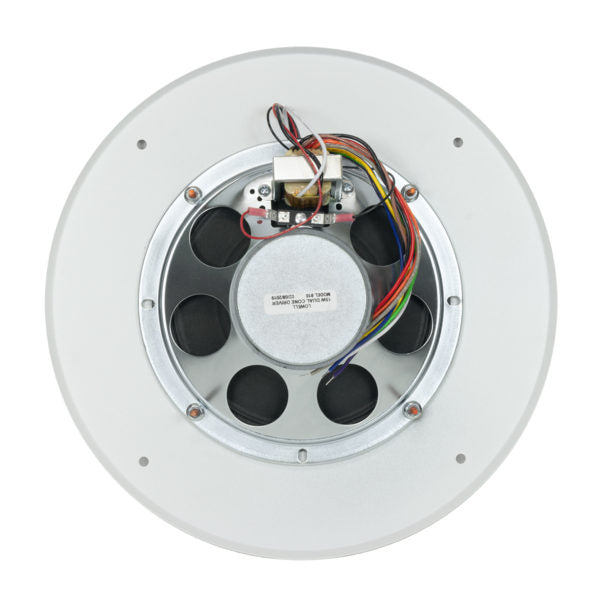

Speaker-Grille Assembly #R1810-72K

Speaker-grille assembly R1810-72K is an excellent choice for general paging and distributed music where installed cost is a prime consideration, this assembly is designed to provide consistent performance with clear intelligibility and wide dispersion. It includes an 8 inch driver, transformer and grille with volume control knob.


PERFORMANCE

  • Background music, paging

INCLUDES

  • Driver (810): 8 in. 15W dual cone driver with 10 oz. ceramic magnet. Cone is molded of a high fiber content material to provide smooth extended frequency response and a clean natural sound.
  • Transformer (TLM-572):  25V/70V transformer. Taps at 0.25, 0.5, 1, 2 and 5W
  • Grille (WB-8):  Screw-mount steel grille with 12.875 in. diameter. White. Volume control knob in center.

COMPLIANCE & CERTIFICATION

  • Made in U.S.A. with global components

A&E SPECIFICATIONS

  • The speaker-grille assembly shall be Lowell Model No. R1810-72K, which shall include an 8 inch dual cone driver with wired transformer and screw-mount grille with a volume control knob in the center. The driver shall have 15 watt RMS power rating and shall employ a 10 oz. ceramic magnet and molded high fiber cone. Frequency response shall be 54Hz–11.6kHz (±6dB); 50Hz–20kHz (±6.6dB) with sensitivity of 97.9dB avg. measured 1W/1M. The wired dual voltage transformer shall be 25/70V with primary taps at .25, .5, 1, 2, and 5W. The steel grille shall be mounted to the driver and have a white powder epoxy finish.
