Lowell PFR-612
Roll over image to zoom in Click on image to zoom
Lowell PFR-612

Lowell PFR-612

Save $35.67
LowellSKU: PFR-612
Price:
$261.55 $297.22

Description

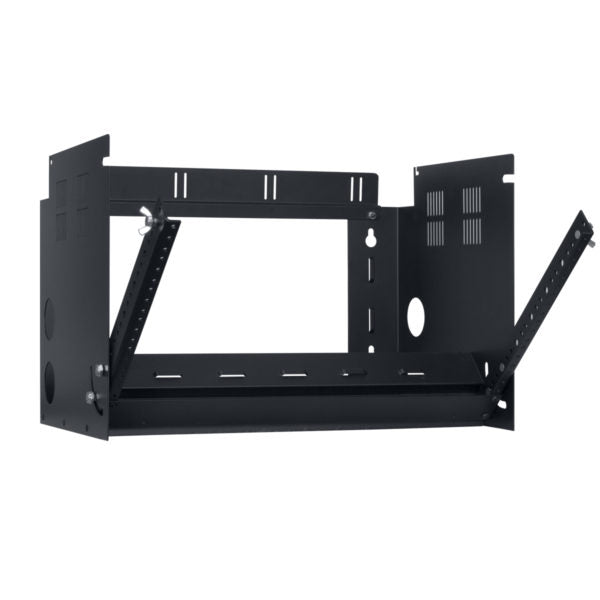

PFR-612: Pivot Frame Rack 6U x 12?D

Wall rack for networking is a great platform for voice/data equipment (patch panels, routers, hubs, network switches) to create a structured, organized cabling system. The hinged panel mounting frame pivots down 90 degrees, with an absolute stop, providing rear access to equipment for punch-down interconnects while in the fully open position.


SPECIFICATIONS

  • Rack Space:  6U
  • Height:  12.75 in.
  • Width:  19.30 in.
  • Depth:  12.00 in. (11.97 usable)

FEATURES

  • Heavy gauge steel
  • Integral tie loop points for cinch straps or wire ties
  • Open base
  • Solid sides
  • One-pair fixed position mounting rails tapped 10-32
  • Black semi-gloss powder epoxy finish
  • Pilot Point rack screws
  • Load capacity 40 lbs.

COMPLIANCE & CERTIFICATION

  • E.I.A./T.I.A. compliant
  • RoHS compliant
  • Certified U.S. steel
  • Made in U.S.A.

A&E SPECIFICATIONS

  • The 19” rack shall be Lowell Model PFR-612, which shall measure 12.75"H x 19.30"W x 12.00"D and provide 6 rack units of panel space. The hinged panel mounting frame shall pivot to 90 degrees with an absolute stop providing rear access to equipment for punch-down interconnects while in the fully open position. The rack shall be constructed of heavy duty certified U.S. steel with a black semi-gloss powder epoxy finish and load capacity of 40 lbs. It shall feature one pair of fixed position mounting rails tapped 10-32 on E.I.A. spacing, integral tie loop points, and an open rear to facilitate mounting over and around existing wall obstructions.
