Lowell PFR-46
Roll over image to zoom in Click on image to zoom
Lowell PFR-46

Lowell PFR-46

Save $21.19
LowellSKU: PFR-46
Price:
$155.41 $176.60

Description

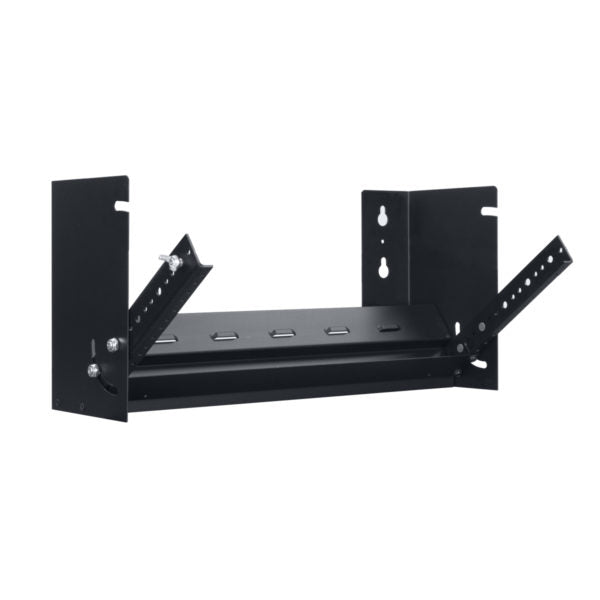

PFR-46: Pivot Frame Rack 4U x 6?D

Wall rack for networking is a great platform for voice/data equipment including patch panels, routers, hubs, and network switches. The hinged panel mounting frame pivots down 90 degrees, with an absolute stop, providing rear access to equipment for punch-down interconnects while in the fully open position.


SPECIFICATIONS

  • Rack Space:  4U
  • Height:  9.25 in.
  • Width:  19.30 in.
  • Depth:  6.00 in. (5.97 usable)

FEATURES

  • Heavy gauge steel
  • Integral tie loop points for cinch straps or wire ties
  • Open base
  • Solid sides
  • One-pair fixed position mounting rails tapped 10-32
  • Black semi-gloss powder epoxy finish
  • Pilot Point rack screws
  • Load capacity 30 lbs.

COMPLIANCE & CERTIFICATION

  • E.I.A./T.I.A. compliant
  • RoHS compliant
  • Certified U.S. steel
  • Made in U.S.A.

A&E SPECIFICATIONS

  • The 19” rack shall be Lowell Model PFR-46, which shall measure 9.25"H x 19.30"W x 6.00"D and provide 4 rack units of panel space. The hinged panel mounting frame shall pivot to 90 degrees with an absolute stop providing rear access to equipment for punch-down interconnects while in the fully open position. The rack shall be constructed of heavy duty certified U.S. steel with a black semi-gloss powder epoxy finish and load capacity of 30 lbs. It shall feature one pair of fixed position mounting rails tapped 10-32 on E.I.A. spacing, integral tie loop points, and an open rear to facilitate mounting over and around existing wall obstructions.
