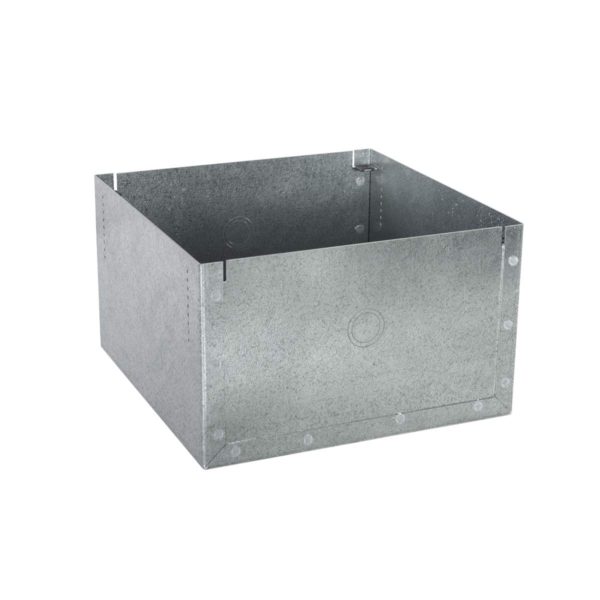

P68XA-6: Recessed Backbox (6?D)

SPECIFICATIONS

• Material: 18-gauge galvanized steel
• Finish:  Galvanized steel
• Height:  10.00 in.
• Width:  10.00 in.
• Depth:  6.00 in.
• Volume:  0.347 cu.ft.
• Acoustical Treatment:  Foam pad lining
• Mounting Aids:  Knockouts, mounting tabs, U-clips, two depth adjustment brackets
• For Grille Type:  Screw-mount

COMPLIANCE & CERTIFICATION

• Made in U.S.A.
• Certified U.S. steel

A&E SPECIFICATIONS

• The enclosure for recessed installation of 8" speakers shall be Lowell model P68XA-6, which shall be 18-gauge galvanized steel (10" x 10" x 6") and shall feature combination knockouts for conduit (1/2" and 3/4") on two opposite sides and rear of enclosure. It shall also feature recessed mounting tabs with four Tinnerman clips, and a foam pad to help reduce acoustic/mechanical resonance. The enclosure shall be made in the U.S.A.
• Retrofit Option: SS9 retrofit bracket (order separately) can be mounted to the enclosure using holes pre-punched to accommodate different ceiling or wall thicknesses.
• Tile Ceiling Option: tile support channel rails _______ (SS24, SS30, or SS48) (order separately) can be mounted to the enclosure using holes pre-punched to accommodate different ceiling or wall thicknesses.
