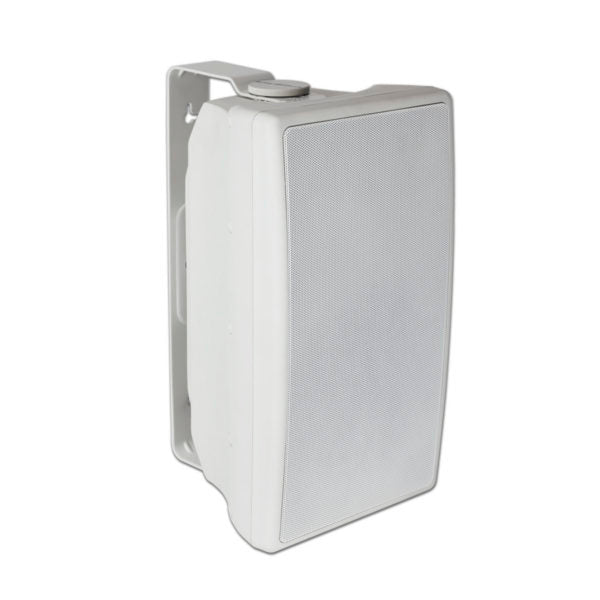

OS-150-TW: 150W Indoor/Outdoor Speaker

PERFORMANCE

• High-fidelity music

ASSEMBLY INCLUDES

• Driver:  Woofer is 8 inch polymer-coated paper composite cone with cloth surround. Frequency response 65Hz–20kHz (±6dB). Average sensitivity 91.0dB at 8ohms (1W/1M). 150W. 80 degrees conical dispersion. Input selector switch. Rear cover plate. 16 in. x 9 in. x 8.3 in. (without bracket).
• Transformer:  25V/70V/100V
• Enclosure: Weather-resistant, UV-resistant polypropylene. Paintable. White.
• Grille: Weather and UV-resistant powder coated aluminum mesh grille. White.
• Mounting Aids:  Adjustable U-shaped bracket for horizontal or vertical installation allows speaker to rotate 90 degrees, depending on install orientation. White.

COMPLIANCE & CERTIFICATION

• Imported

A&E SPECIFICATIONS

• The speaker for indoor or protected outdoor application shall be Lowell Model No. OS-150-TW, which shall have a horn loaded compression driver and 150W power rating with screwdriver adjustable switch for direct 8ohm or distributed 70V, 25V or 100V application. It shall have a frequency response of 65Hz–20kHz (±6dB) and a sensitivity of 91.0dB measured 1W/1M. The housing shall be molded plastic and mesh aluminum grille with white finish. The assembly shall include an adjustable U-bracket for vertical or horizontal installation. Each assembly shall weigh 18 lbs. and measure 16.3 in.x 9 in. x 10 in. with included bracket. Housing shall include 1/4 in.–20 threaded inserts.
