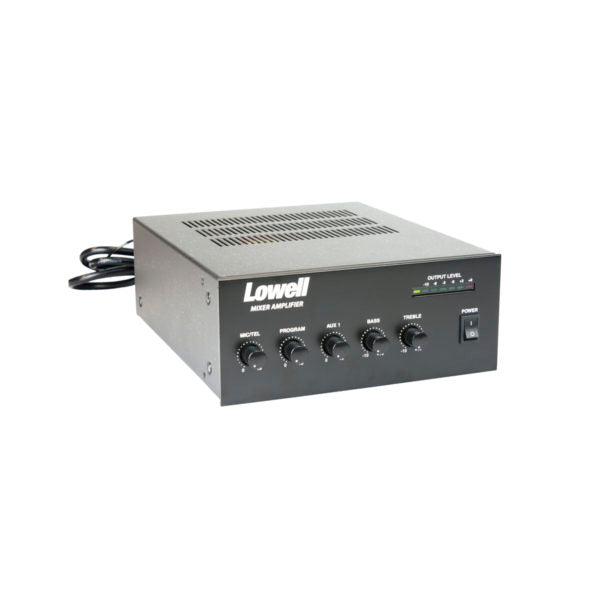

MA30: Mixer w/30W Amplifier (standalone)

FEATURES

• First channel (MIC/TEL):  Switchable for microphone or telephone inputs. When the mute switch is turned on, a dynamic microphone or telephone input will mute the Aux 1, Aux 3, or Program inputs.
• Second channel (PROGRAM):  Switchable for program input screw terminals or AUX 3 dual combining RCA-phono connectors.
• Third channel (AUX 1):  For AUX 1 dual combining RCA–phono connectors.
• AC Supply Voltage:  120VAC 60Hz (±10%)
• Power Consumption:  90W @ Rated Power
• Dimensions:  8.35 in. x 3.46 in. x 10.82 in.
• Speaker Level Outputs:  Screw terminal strips, Main Output: 4 ohms, 8 ohms, 25V, 70V, 30W RMS, Music-On-Hold (MOH): 1W @ 8 ohms
• Mic Input:  Screw terminals, 1mV @ 600 ohms balanced. (Phantom power not available.)
• Telephone Input: Screw terminals, (switchable, same terminals as mic input), 100mV @ 10k ohms balanced
• Program Input:  Screw terminals, 100mV @ 10k ohms balanced
• AUX Inputs 1-3Dual parallel unbalanced RCA-phono jacks, stereo converted to mono, 150mV @10k ohms
• Frequency Response:  50Hz–20kHz (±3dB).  Test signal inserted at AUX input.

A&E SPECIFICATIONS

• The mixer/amplifier shall be Lowell Model No. MA30 which shall have a 30W power amplifier with 4 ohms, 8 ohms, 25V and 70V speaker outputs at screw terminals. It shall feature three channels (microphone/telephone channel [switchable], program input channel and AUX 1 channel—dual-combining RCA/phono connectors), bass control, treble control, power active LED and output level LED. The unit shall measure 8.35 in.W x 3.46 in.H x 10.82 in.D.
