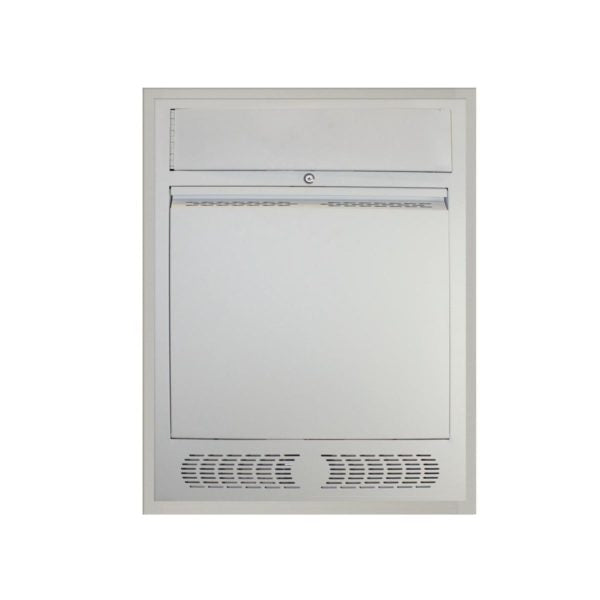

LTCR-3320R: Tilt-out Controlled-release Rack 3U+3U, recessed

SPECIFICATIONS

• Rack Space:  3U (top) + 3U (main)
• Height:  34.06 in. (36.00 w/trim plate)
• Width:  25.00 in. (26.50 w/trim plate)
• Depth:  6.09 in.

FEATURES

• 3U top compartment (horizontal hold) is ideal for a 19 in. panel. Hinge on door allows swing-open access. Fixed rails pivot down for easier access to cables.
• 3U main compartment (vertical hold) for equipment up to 5.25 in. x 15.3 in. x 19 in. Opens with dampers to control rate of descent. Includes fixed rails and a removable shelf.
• Both compartments secure with a single lock
• Backbox with keyholes on 16 in. centers
• Knockouts in top, bottom, rear
• Vents at bottom and along integral formed handle
• 1 in. cable raceway on each side
• E.O. box in base
• Load capacity 50 lbs.
• Network Grey finish

COMPLIANCE & CERTIFICATION

• EIA/TIA compliant
• RoHS compliant
• Certified U.S. steel
• Made in Missouri, U.S.A.

A&E SPECIFICATIONS

• The recessed wall rack with tilt-out operation shall be Lowell Model LTCR-3320R which shall measure 25.00”W x 34.06”H (26.50"W x 36.00"H w/trim plate) and project 6.80 in. from wall.  Construction shall be steel with front/bottom vents and a neutral Network Grey powder epoxy finish. The assembly shall include a backbox and two compartments to mount 19" equipment. The backbox shall feature knockouts in top, bottom, and rear. Oil-filled dampers shall control lowering of equipment when opened. A removable shelf shall be included. The main compartment shall mount equipment measuring up to 5.25" (3U) x 15.3" deep and store it in a vertical position. The top compartment shall mount equipment up to 5.25 in. (3U) x 4.3 in. deep. The assembly shall have a load capacity of 50 lbs. and include a single gang EO?box in the base.
