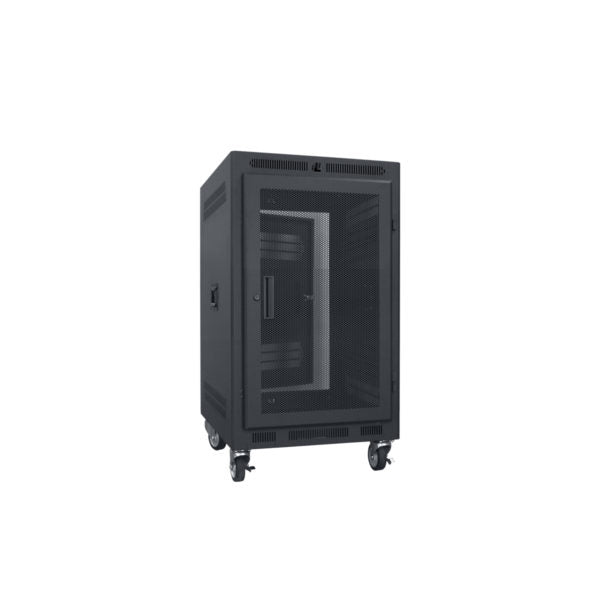

LPR-1427FV: Portable Rack w/Full-vent door 14U x 27?D

SPECIFICATIONS

• Rack Space:  14U
• Height:  30.625 in. (without casters)
• Width:  23.06 in.
• Depth:  27.00 in. (24.34 usable)

FEATURES

• Solid steel top
• Solid steel base with 4 heavy duty swivel casters
• Welded sides with top/bottom vents, recessed handles
• Fully-vented steel front door with key lock
• Steel rear door with top/bottom vents, key lock
• One pair adjustable mounting rails tapped 10-32
• Removable knockout panels in rear with combination knockouts
• Load capacity 900 lbs.
• Black wrinkle powder epoxy finish

COMPLIANCE & CERTIFICATION

• EIA/TIA compliant
• RoHS compliant
• UL 2416 Listed
• Certified U.S. steel
• Made in Missouri, U.S.A.

A&E SPECIFICATIONS

• The EIA/TIA compliant, UL 2416 Listed, 19" portable equipment rack shall be Lowell Model No. LPR-1427FV, which shall be constructed of 16-gauge U.S. steel with 14-gauge steel bottom, reinforced at all loadbearing junctures. It shall measure 30.625"H (without casters) x 27"D x 23.06"W and provide 14 rack units of panel space. It shall include one-pair swivel and one-pair swivel/locking casters which shall be field installed and increase rack height 5.13". Total load rating shall be 900 lbs. The rack frame shall have vents above and below the fully-vented, steel, surface-mount front door, which shall have an integral handle and key lock. The rack shall feature vented side panels with recessed handles, vented recessed rear door with key lock and one-pair of adjustable mounting rails tapped 10-32. The rear shall feature removable knockout panels above and below the door with knockouts for BNC wireless antenna (0.5"), compound knockouts for conduit (0.75–0.50" and 1.5–1.0"), and a blank project panel. Finish shall be black wrinkle powder epoxy.
