Lowell LPOR4-719
Roll over image to zoom in Click on image to zoom
Lowell LPOR4-719

Lowell LPOR4-719

Save $122.58
LowellSKU: LPOR4-719
Price:
$898.88 $1,021.46

Description

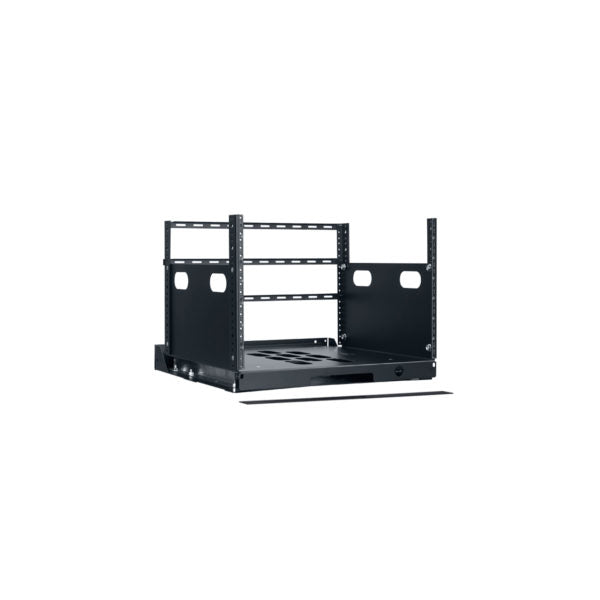

LPOR4-719: Pull-Out Rack 7U x 19?D

Pull out rack (slide out rack) for use in cabinets or custom millwork, the top section of the rack slides forward to access mounted electronics.


SPECIFICATIONS

  • Rack Space:  7U
  • Height:  14.12 in.
  • Width:  19.06 in.
  • Depth:  19.22 in.

FEATURES

  • 11-gauge steel corner post mounting rails tapped 10-32 (7U front, 7U rear)
  • 14-gauge steel base
  • Four bottom rail slides (for loads to 250 lbs.)
  • Three cable lacing bars
  • Front security panel screws into position
  • Black powder epoxy finish
  • Ships unassembled (two cartons)

COMPLIANCE & CERTIFICATION

  • EIA/TIA compliant
  • RoHS compliant
  • Certified U.S. steel
  • Made in Missouri, U.S.A.

A&E SPECIFICATIONS

  • The rack for built-in use shall be Lowell Model No. LPOR4-719 which shall measure 19.06”W x 19.22”D x 14.12”H and provide 7 rack units of panel space (7U front and rear rails). The rack shall be made with certified U.S. steel and feature a 14-gauge steel base and 11-gauge steel mounting rails tapped 10-32. The base shall feature four heavy duty rails which shall allow the rack to slide forward while supporting a load up to 250 lbs. The rack shall include three cable lacing bars in the rear and a front security panel which shall mount with screws to deter slide-out access to equipment as needed for security. The rack shall have a black powder epoxy finish and ship unassembled in two cartons.
