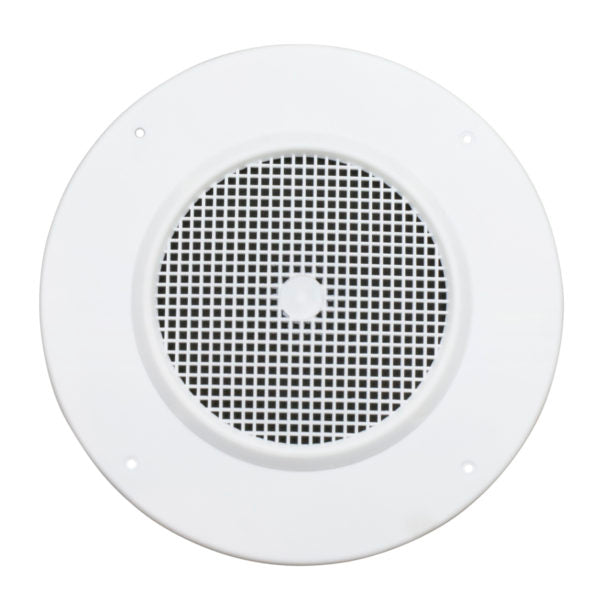

LO8-P: Plastic Speaker Grille

Plastic speaker grille with flush trim ring, round interior rim and honeycomb center provides 60% open area for maximum sound transmission. For use with 8 in. driver

SPECIFICATIONS

• Style:  Screw-mount
• Material:  High-impact polystyrene plastic
• Finish:  White
• Size:  12.625 in. diameter
• Mounting Projection:  0.4375 in.
• Mounting Provisions:  4 screws (white), 4 bosses/screws

CERTIFICATION & COMPLIANCE

• Made in the U.S.A.

A&E SPECIFICATIONS

• The plastic speaker grille for 8 inch speakers shall be Lowell Model LO8-P. The grille shall be molded high-impact, polystyrene plastic with a flush trim ring and a round honeycomb perforation pattern. The grille diameter shall be 12.625 in. with a mounting projection from the ceiling of 0.437 in. The grille shall have four concealed screw bosses spaced at 90-degree intervals for mounting the specified 8 in. speaker using self-tapping screws provided. It shall also have four 0.25 in. holes spaced at 90 degree intervals on a 11.25 in. bolt circle for mounting specified backbox or mounting ring using white screws provided. Model LO8-P shall be white plastic suitable for painting.
