Lowell LHFR-1214
Roll over image to zoom in Click on image to zoom
Lowell LHFR-1214

Lowell LHFR-1214

Save $54.63
LowellSKU: LHFR-1214
Price:
$400.63 $455.26

Description

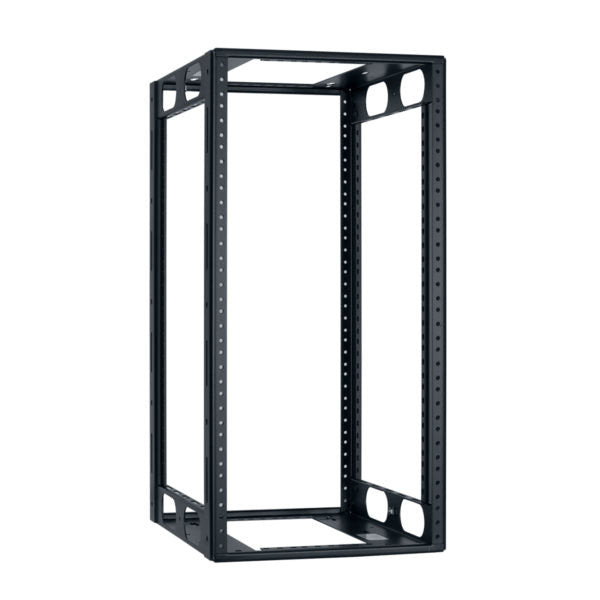

LHFR-1214: Half-width Rack 12U x 14?D

Welded steel frame for half-rack systems and non-standard electronics.


SPECIFICATIONS

  • Rack Space:  12U
  • Height:  21.94 in.
  • Width:  10.69 in.
  • Depth:  14.00 in.

FEATURES

  • 16-gauge steel frame
  • Fixed mounting rails tapped 10-32 on front/back/sides
  • Multiple holes/slots for cable management
  • Grounding studs
  • Black powder epoxy finish
  • Load capacity 125 lbs.
  • Ships ready to install

COMPLIANCE & CERTIFICATION

  • EIA/TIA compliant
  • RoHS compliant
  • Certified U.S. steel
  • Made in Missouri, U.S.A.

A&E SPECIFICATIONS

  • The half rack shall be Lowell Model No. LHFR-1214. Dimensions shall be 21.94 in. high x 14 in. deep x 10.69 in. wide with 12U panel space. The rack shall be welded, certified US steel construction with 16-gauge top/bottom and 11-gauge front, rear, side, top, and bottom fixed rails tapped 10-32 on EIA spacing. The rack shall include top mounting holes to enable installation underneath a desk or counter, and multiple holes for cable and wire management. Finish shall be smooth black powder epoxy.
