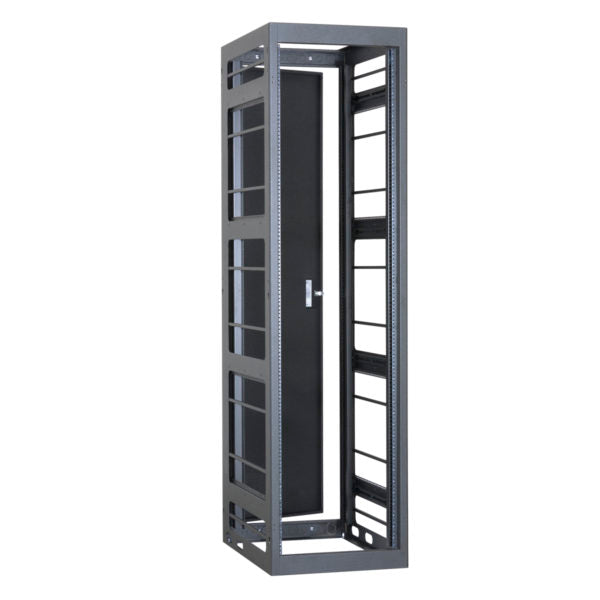

LGVR-4436: Gangable Video Rack 44U x 36?D

SPECIFICATIONS

Rack Space:  44U

Height:  83.125 in.

Width:  22.00 in.

Depth:  36.00 in.

Useable Depth:  33.34 in.

FEATURES

• Configurable top has 10U opening for 19 in. panels. Solid closure panels included.
• Open sides with lacing bars for video cable bundles
• Open front (optional door)
• Solid steel rear door with key lock
• Two-pair fully adjustable rails tapped 10-32 (printed RU scale)
• Cable Management: multiple lacing points, holes, knockout panels
• Pilot Point screws with captive washers
• Grounding stud
• Threaded inserts (for optional leg levelers)
• Beveled corners
• Black wrinkle powder epoxy finish
• Load capacity 3150 lbs.

COMPLIANCE & CERTIFICATION

• EIA/TIA compliant
• UL 2416 Listed
• RoHS compliant
• Certified U.S. steel
• Made in Missouri, U.S.A.

A&E SPECIFICATIONS

• The EIA/TIA compliant, UL Listed (UL2416) 19" EIA gangable equipment rack shall be Lowell Model No. LGVR-4436 which shall measure 83.125"H x 36"D x 22"W (33.34" useable depth x 44 rack units). The rack shall be UL Listed in the U.S. and Canada with a load capacity of 3150 lbs. Construction shall be fully welded 16-ga. steel frame with 14-ga. steel top and 14-ga. steel bottom reinforced at load-bearing junctions and finished with a durable black powder epoxy coating. It shall include two pairs of 11-ga. steel adjustable rails with mounting holes tapped 10-32 and rack unit increments printed on EIA spacing. Top shall have integral rails with mounting holes tapped 10-32 to accept 19"W solid panels (included as shipping stiffeners) or optional accessories. Rear frame shall feature knockouts (1/2", 3/4", 1", 1-1/2") for conduit wiring and BNC knockouts for UHF/VHF antennas. Sides shall feature eight lacing bars. The rack shall include a solid recessed rear door with key lock.
