Lowell LGVR-4432

Save $319.05
LowellSKU: LGVR-4432

Sale price$2,339.71 Regular price$2,658.76

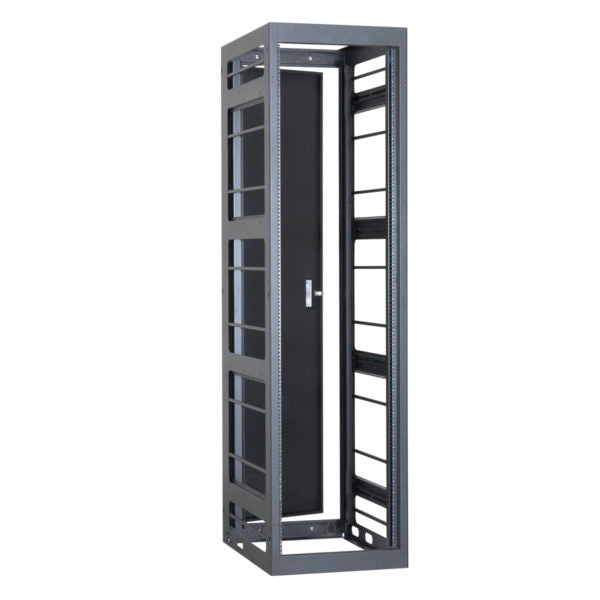

LGVR-4432: Gangable Video Rack 44U x 32?D

Gangable rack with adjustable rails and side lacing bars for video bundles is fully welded 16-gauge steel with 14-gauge base, reinforced at all load-bearing junctions.


  • Rack Space:  44U
  • Height:  83.125 in.
  • Width:  22.00 in.
  • Depth:  32.00 in. (29.34 usable)


  • Configurable top has 10U opening for 19 in. panels. Solid closure panels included.
  • Open frame
  • Side lacing bars for video cable bundles
  • Open front (optional door)
  • Solid steel rear door with key lock
  • Two-pair fully adjustable rails tapped 10-32 with printed RU scale
  • Cable Management:  Multiple lacing points, holes, knockout panels
  • Pilot Point screws with captive washers
  • Grounding stud
  • Threaded inserts (for optional leg levelers)
  • Beveled corners
  • Black wrinkle powder epoxy finish
  • Load capacity 3150 lbs.


  • EIA/TIA compliant
  • UL 2416 Listed
  • RoHS compliant
  • Certified U.S. steel
  • Made in Missouri, U.S.A.


  • The EIA/TIA compliant, UL Listed (UL2416) 19" EIA gangable equipment rack shall be Lowell Model No. LGVR-4432 which shall measure 83.125"H x 32"D x 22"W (29.34" useable depth x 44 rack units). The rack shall be UL Listed in the U.S. and Canada with a load capacity of 3150 lbs. Construction shall be fully welded 16-ga. steel frame with 14-ga. steel top and 14-ga. steel bottom reinforced at load-bearing junctions and finished with a durable black powder epoxy coating. It shall include two pairs of 11-ga. steel adjustable rails with mounting holes tapped 10-32 and rack unit increments printed on EIA spacing. Top shall have integral rails with mounting holes tapped 10-32 to accept 19"W solid panels (included as shipping stiffeners) or optional accessories. Rear frame shall feature knockouts (1/2", 3/4", 1", 1-1/2") for conduit wiring and BNC knockouts for UHF/VHF antennas. Sides shall feature eight lacing bars. The rack shall include a solid recessed rear door with key lock.
