Lowell LGTR-5436-LRD

Save $528.03
LowellSKU: LGTR-5436-LRD

Price:
Sale price$3,872.23 Regular price$4,400.26

Description

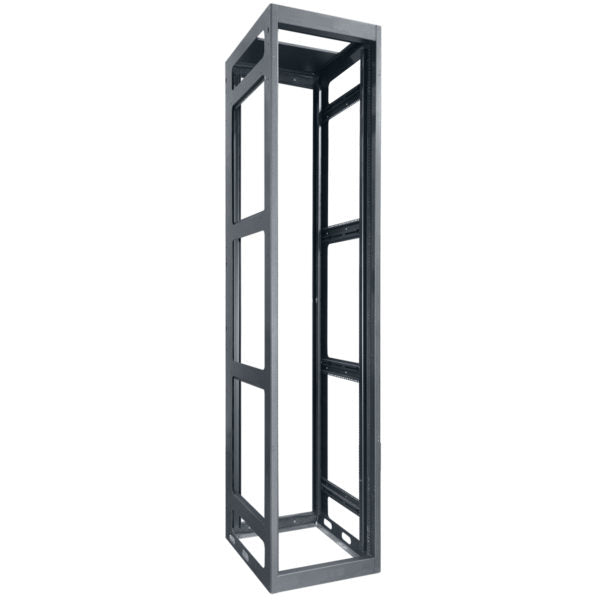

LGTR-5436-LRD: Gangable Tall Rack 54U x 36?D


Extra tall (54U) gangable rack with adjustable rails is fully welded 16-gauge steel with 14-gauge base, reinforced at all load-bearing junctions.


SPECIFICATIONS

  • Rack Space:  54U
  • Height:  100.625 in.
  • Width:  22.00 in.
  • Depth:  36.00 in. (33.34 usable)

FEATURES

  • Configurable top has 10U opening for 19 in. panels. Solid closure panels included.
  • Open sides, front, back (optional doors)
  • Two-pair fully adjustable rails tapped 10-32 with RU scale
  • Cable Management: multiple lacing points, holes, knockout panels
  • Pilot Point screws with captive washers
  • Grounding stud
  • Threaded inserts (for optional leg levelers)
  • Beveled corners
  • Black wrinkle powder epoxy finish
  • Load capacity 3150 lbs.

COMPLIANCE & CERTIFICATION

  • EIA/TIA compliant
  • UL 2416 Listed
  • RoHS compliant
  • Certified U.S. steel
  • Made in Missouri, U.S.A.

A&E SPECIFICATIONS

  • The EIA/TIA compliant, UL Listed (UL2416) 19" gangable equipment rack shall be Lowell Model No. LGTR-5436-LRD, which shall measure 22"W x 36"D x 100.625"H (33.34" useable depth x 54U useable height). The rack shall be UL Listed in the U.S. and Canada with a load capacity of 3150 lbs. Construction shall be fully welded 16-gauge steel frame with 14-gauge steel top and bottom reinforced at load-bearing junctions and finished with a black wrinkle powder epoxy coating. The rack shall include two pairs of 11-gauge steel adjustable rails with mounting holes tapped 10-32 and rack unit increments printed on EIA spacing. The rear frame shall feature knockouts (1/2", 3/4", 1", 1-1/2") for conduit wiring plus BNC knockouts for UHF/VHF antennas.Top shall feature integral rails with mounting holes tapped 10-32 ready to accept blank panels included as shipping stiffeners or optional 19"W accessories. The base shall feature a grounding stud and provisions to add optional leg levelers.
