Lowell LGTR-5432

Save $495.69
LowellSKU: LGTR-5432

Sale price$3,635.09 Regular price$4,130.78

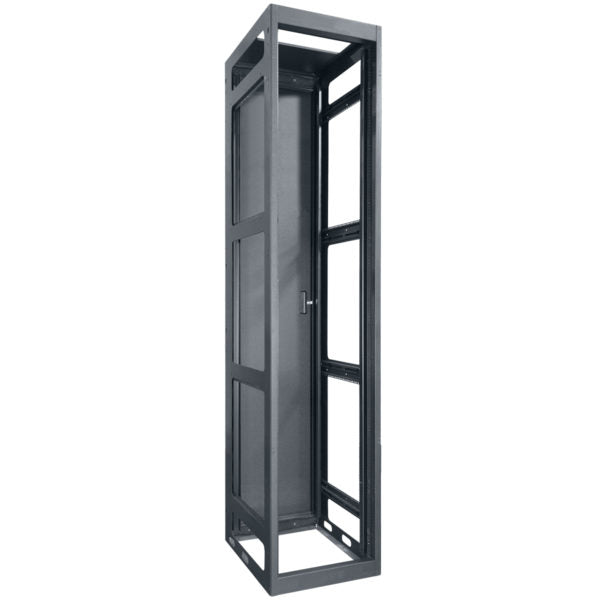

LGTR-5432: Gangable Tall Rack 54U x 32?D

Extra tall (54U) gangable rack with adjustable rails is fully welded 16-gauge steel with 14-gauge base, reinforced at all load-bearing junctions.


  • Rack Space:  54U
  • Height:  100.625 in.
  • Width:  22.00 in.
  • Depth:  32.00 in. (29.34 usable)


  • Configurable top has 10U opening for 19 in. panels (includes solid closure panels)
  • Open sides and front (optional door)
  • Solid steel rear door with key lock
  • Two-pair fully adjustable rails tapped 10-32
  • Cable Management:  Multiple lacing points, holes, knockout panels
  • Pilot Point screws with captive washers
  • Grounding stud
  • Threaded inserts (for optional leg levelers)
  • Beveled corners
  • Black wrinkle powder epoxy finish
  • Load capacity 3150 lbs.


  • EIA/TIA compliant
  • UL 2416 Listed
  • RoHS compliant
  • Certified U.S. steel
  • Made in Missouri, U.S.A.


  • The EIA/TIA compliant, UL Listed (UL2416) 19" gangable equipment rack shall be Lowell Model No. LGTR-5432, which shall measure 22"W x 32"D x 100.625"H (29.34" useable depth x 54U useable height). The rack shall be UL Listed in the U.S. and Canada with a load capacity of 3150 lbs. Construction shall be fully welded 16-gauge steel frame with 14-gauge steel top and bottom reinforced at loadbearing junctions and finished with a black wrinkle powder epoxy coating. The rack shall include a solid steel, recessed rear door with key lock and two pairs of 11-gauge steel adjustable rails with mounting holes tapped 10-32 and rack unit increments printed on EIA spacing. The rear frame shall feature knockouts (1/2", 3/4", 1", 1-1/2") for conduit wiring plus BNC knockouts for UHF/VHF antennas. Top shall feature integral rails with mounting holes tapped 10-32 ready to accept blank panels included as shipping stiffeners or optional 19"W accessories. The base shall feature a grounding stud and provisions to add optional leg levelers.
