Lowell LGR-3527-LRD

Save $166.67
LowellSKU: LGR-3527-LRD

Sale price$1,222.21 Regular price$1,388.88

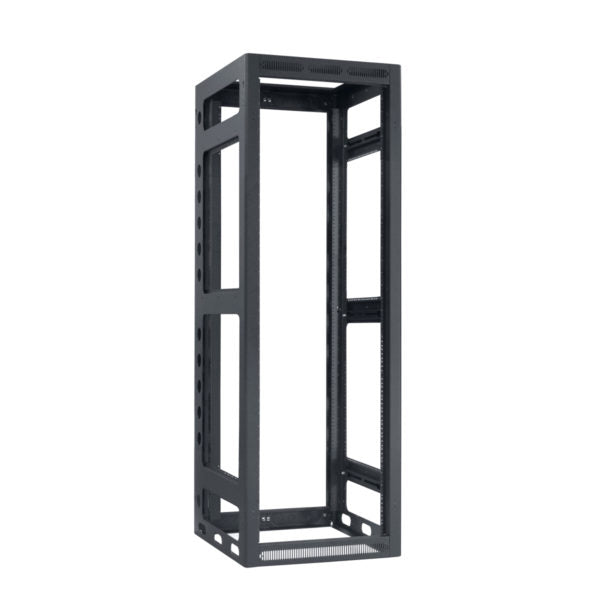

LGR-3527-LRD: Gangable Rack 35U x 27?D


Gangable rack with adjustable rails is fully welded 16-gauge steel with 14-gauge base, reinforced at all load-bearing junctions.



  • Rack Space:  35U
  • Height:  67.375 in.
  • Width:  23.06 in.
  • Depth:  27.00 in. (24.34 usable)


  • Configurable top has 7U opening for 19 in. panels (includes solid closure panels)
  • Open frame with multiple 2 in. holes on sides for cable runs between racks
  • Open front (optional door)
  • Open back (optional door)
  • Two-pair fully adjustable rails tapped 10-32 (printed RU scale)
  • Cable Management:  Multiple lacing points, holes, knockout panels
  • Pilot Point screws with captive washers
  • Grounding stud
  • Threaded inserts (for optional leg levelers)
  • Beveled corners
  • Black wrinkle powder epoxy finish
  • Load capacity 3150 lbs.


  • EIA/TIA compliant
  • UL 2416 Listed
  • RoHS compliant
  • Certified U.S. steel
  • Made in Missouri, U.S.A.


  • The EIA/TIA/RoHS compliant, gangable rack shall be Lowell Model No. LGR-3527-LRD. Overall measurements shall be 67.375"H x 27"D x 23.06"W with panel space of 35 rack units. Load capacity shall be 3150 lbs. The rack shall include a top with 7U opening and compound knockouts; open base with grounding stud; two pairs adjustable mounting rails with printed RU increments; knockout panels with combination knockouts above/below rear opening; blank project panel below rear opening; and provisions to mount an optional surface-mount front door (ordered separately). The rack shall be manufactured in the U.S.A. with certified U.S. steel and have a black wrinkle powder epoxy finish. It shall be listed to UL 2416.
