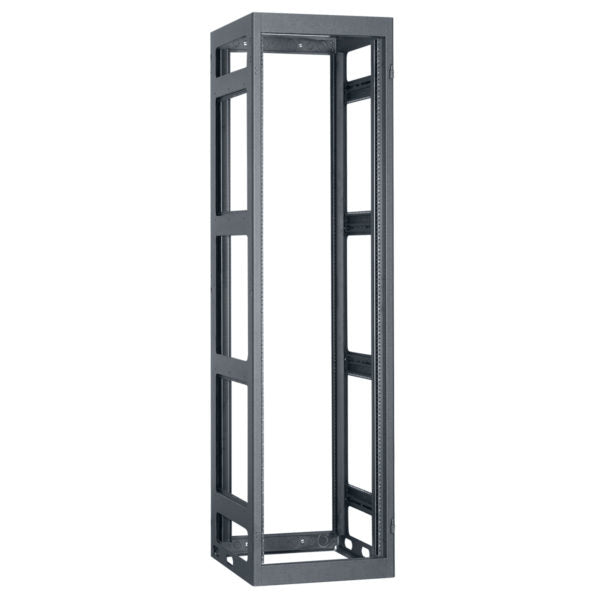

LGNR-4427-LRD: Gangable Narrow Rack 44U x 27?D

44U x 27"D Gangable rack with adjustable rails is fully welded 16-gauge steel with 14-gauge base, reinforced at all load-bearing junctions.

SPECIFICATIONS

• Rack Space:  44U
• Height:  83.125 in.
• Width:  22.00 in.
• Depth:  27.00 in. (24.34 usable)

FEATURES

• Configurable top has 10U opening for 19 in. panels. Solid closure panels included.
• Open sides
• Open front (optional door)
• Open back (optional door)
• Two-pair fully adjustable rails tapped 10-32 with printed RU scale
• Cable Management:  Multiple lacing points, holes, knockout panels
• Pilot Point screws with captive washers
• Grounding stud
• Threaded inserts (for optional leg levelers)
• Beveled corners
• Black wrinkle powder epoxy finish
• Load capacity 3150 lbs.

COMPLIANCE & CERTIFICATION

• EIA/TIA compliant
• UL 2416 Listed
• RoHS compliant
• Certified U.S. steel
• Made in Missouri, U.S.A.

A&E SPECIFICATIONS

• The EIA/TIA compliant, UL Listed (UL2416) 19" gangable equipment rack shall be Lowell Model No. LGNR-4427-LRD, which shall measure 22"W x 27"D x 83.13"H (44U). The rack shall be UL Listed in the U.S. and Canada with a load capacity of 3150 lbs. Construction shall be fully welded 16-gauge steel frame with 14-gauge steel top and 14-gauge steel bottom reinforced at loadbearing junctions and finished with a durable black powder epoxy coating. The rack shall include two pairs of 11-gauge steel adjustable rails with mounting holes tapped 10-32 and rack unit increments printed on EIA spacing. The rear frame shall feature removable knockout panels and combination knockouts (1/2", 3/4", 1", 1-1/2") for conduit wiring, and BNC knockouts for UHF/VHF antenna. The top shall have integral rails with mounting holes tapped 10-32 to accept 19"W solid panels included as shipping stiffeners or optional accessories. The base shall include a grounding stud and provisions to accept leg levelers (optional) or anchor bolts (by others).
