Lowell LFR-3522

Save $126.33
LowellSKU: LFR-3522

Sale price$926.43 Regular price$1,052.76

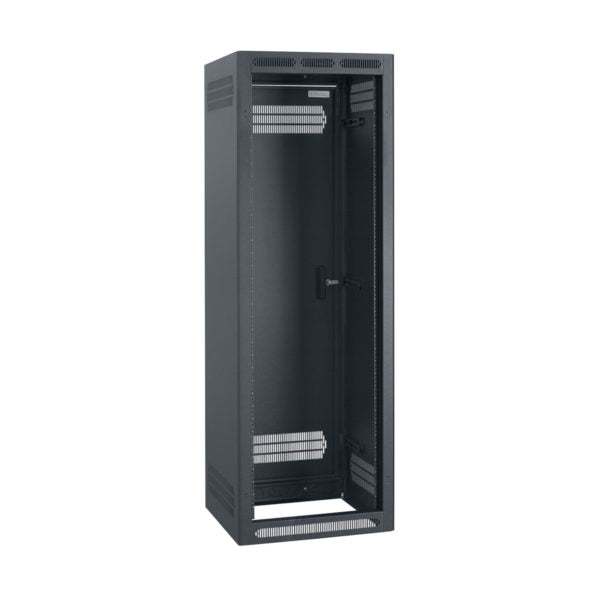

LFR-3522: Fixed-rail Rack 35U x 22?D


35U x 22"D 19-inch equipment rack with fixed-position front rails features welded sides and short rear brackets for semi-adjustable placement of accessories in the rear. Fully welded 16-gauge steel with 14-gauge base, reinforced at all load-bearing junctions.



  • Rack Space:  35U
  • Height:  67.375 in.
  • Width:  23.06 in.
  • Depth:  22.00 in. (19.25 usable)


  • Solid top with vents
  • Welded sides with vents
  • Open front (optional door)
  • Recessed rear door with vents and key lock
  • One-pair fixed-position front rails tapped 10-32 with printed RU scale
  • Cable Management:  Combination knockouts
  • Pilot Point screws with captive washers
  • Grounding stud
  • Threaded inserts (for optional leg levelers)
  • Beveled corners
  • Black wrinkle powder epoxy finish
  • Load capacity 1600 lbs.


  • EIA/TIA compliant
  • UL 2416 Listed
  • RoHS compliant
  • Certified U.S. steel
  • Made in Missouri, U.S.A.


  • The stand alone floor rack shall be Lowell Model No. LFR-3522. Overall measurements shall be 67.375"H x 22"D x 23.06"W with panel space of 35 rack units. Load capacity shall be 1600 lbs. The rack shall include a recessed rear door with vents and key lock, welded side panels with vents, closed top with vents, open base with grounding stud, one pair fixed-position front mounting rails with printed RU increments, combination knockouts above and below rear door, and provisions to mount optional rear rails or optional surface-mount front door. The rack shall be manufactured in the U.S.A. with certified U.S. steel and have a black wrinkle powder epoxy finish.
