Lowell LER-3527-BAV

Save $370.06
LowellSKU: LER-3527-BAV

Sale price$2,713.80 Regular price$3,083.86

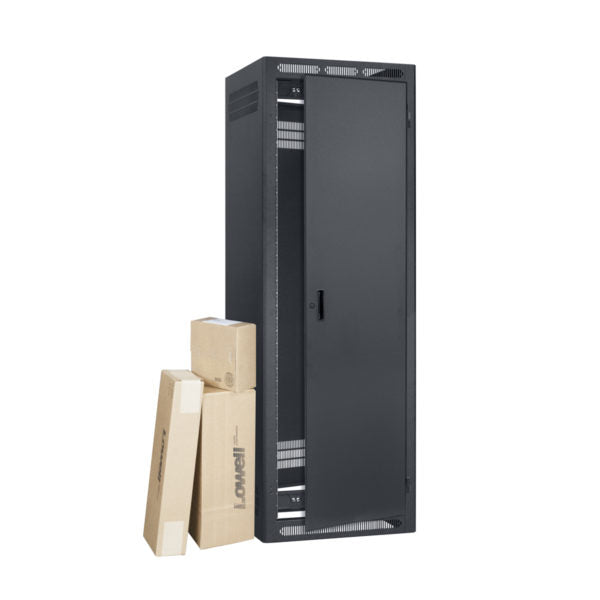

LER-3527-BAV: Rack with accessories


Stand-alone rack with enclosed sides and adjustable rails is fully welded 16-gauge steel with 14-gauge base, reinforced at all load-bearing junctions. This model includes an accessory bundle (not installed).


SPECIFICATIONS (for LER-3527 rack)

• Rack Space:  35U

• Rack Height:  67.38 in.

• Rack Width:  23.06 in.

• Rack Depth:  27.00 in.

• Useable Depth:  24.34 in.


• Surface-mount solid steel front door with keyed lock extends one inch from frame. Mounts left or right, field changeable.

• One pair 35U adj. rear rails, tapped 10-32

• Two power strips with 12 outlets each (eight 15A, four 20A).

• One fan panel with four 4.7 inch diameter whisper fans.

• Four slotted cable managers, horizontal mount (straight)

• Two slotted cable managers, horizontal mount (4 in. offset)

• One vertical cable manager

• Set of heavy-duty leg levelers

• Magnetic vent blocker kit

• Velcro cable wraps

• Extra rack screws


The E.I.A. compliant rack shall be Lowell Model No. LER-3527-BAV, which shall measure 67.375"H x 27.00”D x 23.06"W, with racking space of 35 rack units. The EIA/TIA compliant rack shall be UL Listed under Standard 2416. It shall be 16 gauge welded U.S. steel with 14 gauge base reinforced at all load-bearing junctures. It shall feature compound knockouts on top for conduit size 2"-1" and 1.5"-1" and have 0.5" knockouts for BNC wireless antennas. Rack finish shall be black wrinkle powder epoxy. The rack shall feature welded side panels with top/bottom vents, recessed rear door with top/bottom vents and keyed lock, grounding stud, 7U top opening with riveted rails tapped 10-32, two black steel closure panels for top, and a pair of adjustable front mounting rails tapped 10-32.

The rack shall include the following accessory bundle—solid steel surface mount front door with keyed lock, pair of 35U rear rails tapped 10-32, 7U x 19"W fan panel with four 4.7" dia. whisper fans, two corded power strips each with eight 15A outlets and four 20A outlets, four horizontal-mount cable management bars (straight), two horizontal-mount cable management bars (4" offset), one vertical cable manager, four leg levelers, a pack of velcro cable wraps, a magnetic vent blocker kit, and two extra bags of Pilot Point rack screws (25 screws per bag).
