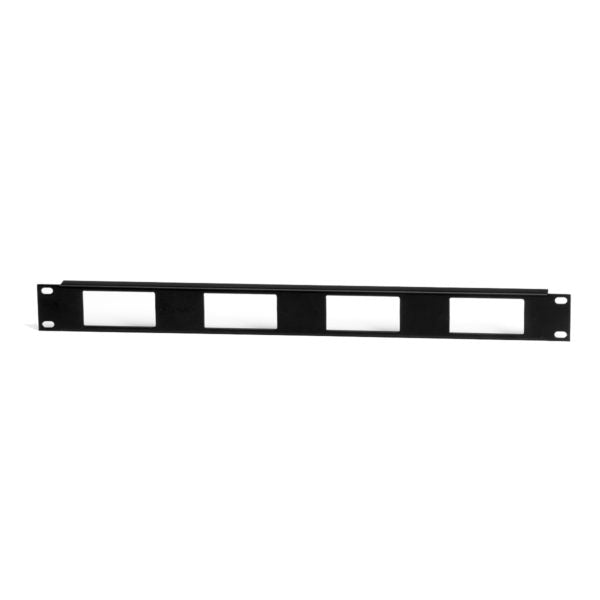

D4P-1: Decorator-device 4-slot Panel 1U

Rackmount panel is punched to mount up to 4 low-voltage decorator style devices horizontally.

SPECIFICATIONS

• Rack Space:  1U

• Height:  1.75 in.

• Width:  19.00 in.

• Depth:  0.625 in. flange

FEATURES

• 16-gauge steel

• Four (4) punches for low-voltage decorator style devices mounted horizontally

• Rear lacing flange for wire management

• Smooth black semi-gloss powder epoxy finish

• Kep nut hardware

COMPLIANCE & CERTIFICATION

• EIA/TIA compliant

• Certified U.S. steel

• Made in Missouri, U.S.A.

A&E SPECIFICATIONS

The rackmount panel for decorator style devices shall be Lowell Model No. D4P-1 and shall measure 19"W x 1.75"H (1U). It shall feature a black semi-gloss powder epoxy finish and be formed steel construction with punched openings to hold up to four (1-gang) decorator style devices, mounted horizontally. The panel shall include Kep nut hardware and a rear lacing flange for wire management. Switches and blank filler plates shall be ordered separately.
