Description

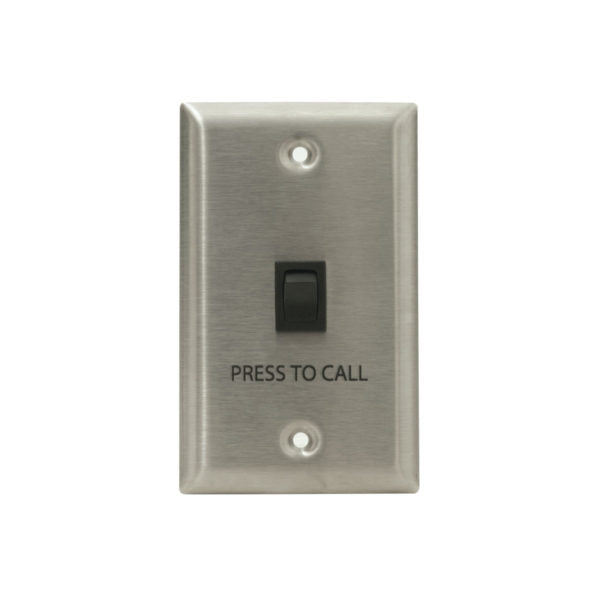

CS10: Call Switch |
| Call switch for intercom systems--general purpose signaling and switching--features a single pole, single throw (SPST) momentary rocker switch and wall plate. |
|
SPECIFICATIONS • SPST rocker switch • Switch Rating: 24VDC 500mA • Switch Function: Momentary (normally open) • Screw terminal connections • Wall Plate: 1-gang standard • Finish: Stainless Steel • Lettering: PRESS TO CALL • 4.5 in. x 2.75 in. x 0.875 in. COMPLIANCE & CERTIFICATION • Made in the U.S.A. with global components
A&E SPECIFICATIONS The call switch shall be Lowell Model #CS10, which shall be a single pole, single throw (SPST) normally open momentary rocker switch mounted on a 1-gang stainless steel wall plate. Switch rating shall be 24VDC 500mA. The wall plate shall have stamped and filled black lettering with the words "PRESS TO CALL." The unit shall be provided with screw terminals and mounting hardware. |
