Lowell ACR-SEQ6-2009

Save $106.77
LowellSKU: ACR-SEQ6-2009

Sale price$782.95 Regular price$889.72

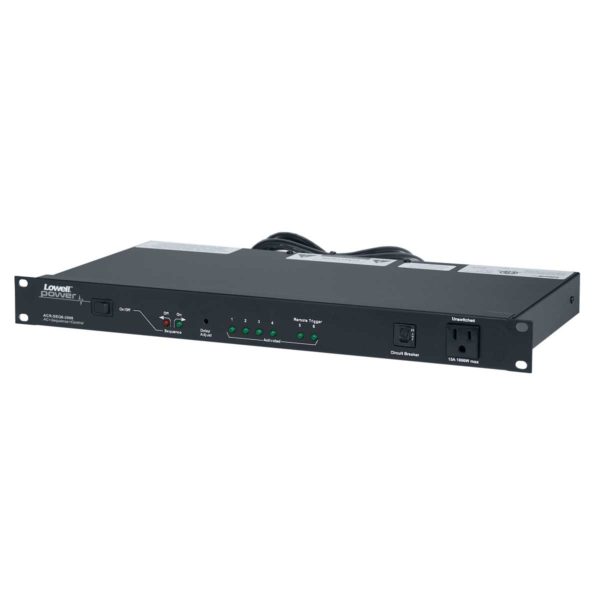

ACR-SEQ6-2009: Rackmount Sequencer (4-step/2-remote)

Rackmount panel with nine outlets (six switched, three un-switched) and sequencer for sequential activation/deactivation of connected equipment. Includes alarm interface.


• Chassis:  19 in. x 9 in. x 1.75 in. (1U)

• Power Rating:  120VAC 60Hz, 20A

• Termination:  9 ft. attached cord with NEMA plug

• Activation:  Rocker switch

• Outlets (9 total):  1 front (15A) un-switched, 2 rear(15A) un-switched , 6 rear (15A) switched.

• Four step sequential power plus two dry contact closures (steps 5 and 6) for triggering remote power control units (RPC series, order separately).

• Adjustable delay between sequenced steps

• Rear termination blocks accommodate remote switches, external triggers and an alarm system interface for use where mandated by fire code.

• Alarm Interface:  Lock on/off and switch lock functions for alarm system or master control panel applications.

• External Control Connections:  Plug-in barrier strip terminal blocks


• ETL Listed (U.S., Canada)

• Made in U.S.A. with global components


The sequential AC rackmount power panel shall be Lowell Model No. ACR-SEQ6-2009. It shall be ETL listed and have a power rating of 120VAC 60Hz/20A with EMI/RFI filtering, 9 (15A) outlets (6 switched, 3 un-switched) and 2 steps providing contact closures to sequentially activate/deactivate equipment (4-6 steps) with a sequence delay of 0.5 to 10 seconds. It shall be housed in a 1U steel rackmount chassis measuring 19 in. x 1.75 in. x 9 in. and having color-coded LEDs. Activation shall be via a rocker switch on the front panel.
