Description

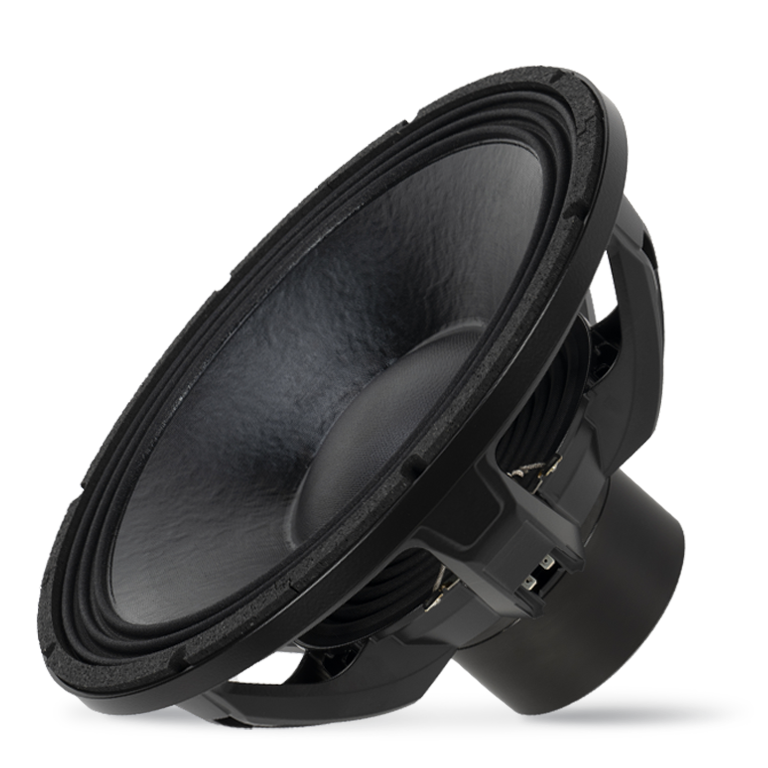

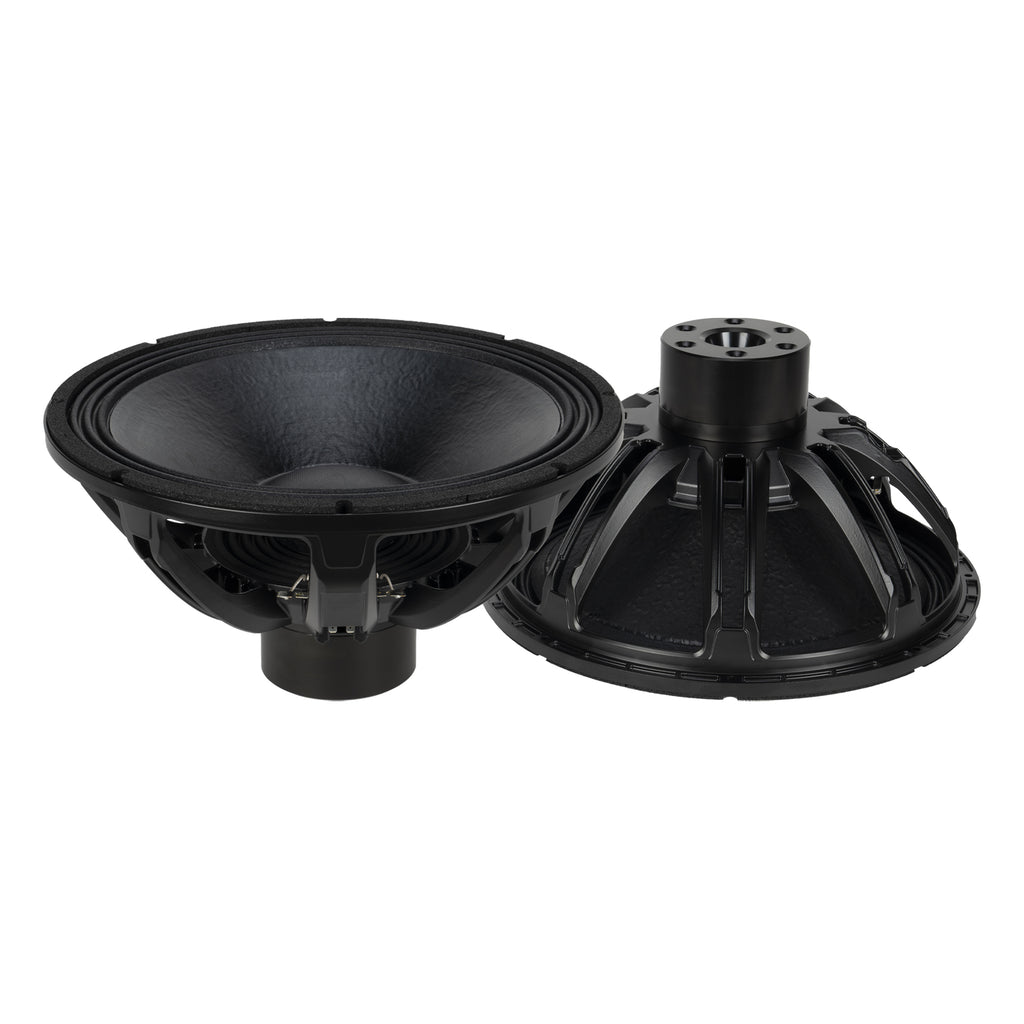

The LN19S400 is a 19-inch extended low-frequency transducer designed with high excursion piston capabilities, perfect for vented enclosures where power and low-frequency extension are priorities. One of the key highlights of the transducer is its ultralight CCAW (copper-clad aluminum wire) voice coil, which is configured in a 4.0-inch, 4-layer inside-outside voice coil with fiberglass former material. The ultra-long excursion moving mass (65mm/2.5" safe peak-to-peak) with high power and fast acceleration capabilities. Employing a cone assembly loaded with fibers and featuring a generous triple-roll surround, the LN19S400 is engineered to decrease flux modulations and enhance transient response. The Hyper-Vented dual-forced air system enhances voice coil ventilation, effectively minimizing power compression.
Features
- 4.0-inch Inside/Outside CCAW (copper-clad aluminum wire) voice coil
- 3000 Watt continuous program power handling
- 98.5 dB Sensitivity
- 25 Hz - 1 kHz Frequency range
- Hypervented magnetic structure for minimum power compression
- Triple roll surround and exponential cone geometry
- Single aluminum demodulation ring
Specifications
| General specifications | |
| Nominal Diameter | 19 inch / 483 mm |
| Rated Impedance | 8 ohm |
| Program Power (watt) | 3000 W |
| Power handling capacity | 1500 W |
| Sensitivity | 98.5 dB |
| Frequency range | 25 - 1000 Hz |
| Effective piston diameter | 410 mm / 16.14 inch |
| Max. Excursion Before Damage | 59 mm / 2.32 inch |
| Minimum Impedance (ohm) | 6.2 ohm |
| Voice Coil Diameter | 4.0 inch / 102 mm |
| Voice Coil Winding Material | Aluminum |
| Voice Coil Length | 42 mm / 1.65 inch |
| Number of layers | 4 |
| Kind of layers | inside/outside |
| Top Plate Thickness | 16 mm / 0.63 inch |
| Cone Design | Curved |
| Surround Material | Polycotton |
| Surround Design | Triple roll |
| Magnets | Neodymium |
| Hypervented magnetic structure | Yes |
| Dual-force air ventilation | Yes |
| Demodulation Rings material | Aluminum |
| Number of Demodulation Rings | 1 |
| Spider | Triple layer sandwich spider |
| Demodulation Ring | Yes |
| Thiele - small parameters | |
| Resonance frequency (Fs) | 32 Hz |
| DC resistance (Re) (ohm) | 4.70 ohm |
| Mechanical factor | 4.00 Qms |
| Electrical factor | 0.27 Qes |
| Total factor | 0.26 Qts |
| Bl factor (Bl) (T x m) | 32.00 T x m |
| Effective moving mass (Mms) | 296.0 g |
| Equivalent Cas air loaded (Vas) | 204.0 liters |
| Effective piston area (Sd) | 0.132 m2 |
| Max. linear excursion (Xmax) | 17 mm |
| Voice coil inductance @ 1kHz (Le1k) | 3.40 mH |
| Half-space efficency (Eff) | 2.37% |
| Mounting information | |
| Overall diameter | 480 mm / 18.9 inches |
| Bolt circle diameter | 460-462 mm / 18.11-18.19 inch |
| Bolt hole diameter | 7 mm / 0.28 inch |
| Front mount baffle cut-out | 446 mm / 17.56 inch |
| Rear mount baffle cut-out | 446 mm / 17.56 inch |
| Volume occupied by the driver | 10 liters / 0.39 ft3 |
| Standard compliance | |
| Safety agency | CE compliant |
| Size / Weight | |
| Height | 232 mm / 9.13 inches |
| Diameter | 480 mm / 18.9 inches |
| Cut out diameter | 446 mm / 17.56 inches |
| Weight | 10.2 kg / 22.49 lbs |
| Shipping information | |
| Package Height | 290 mm / 11.42 inches |
| Package Width | 505 mm / 19.88 inches |
| Package Depth | 515 mm / 20.28 inches |
| Package Weight | 10.9 kg / 24.03 lbs |
