Description

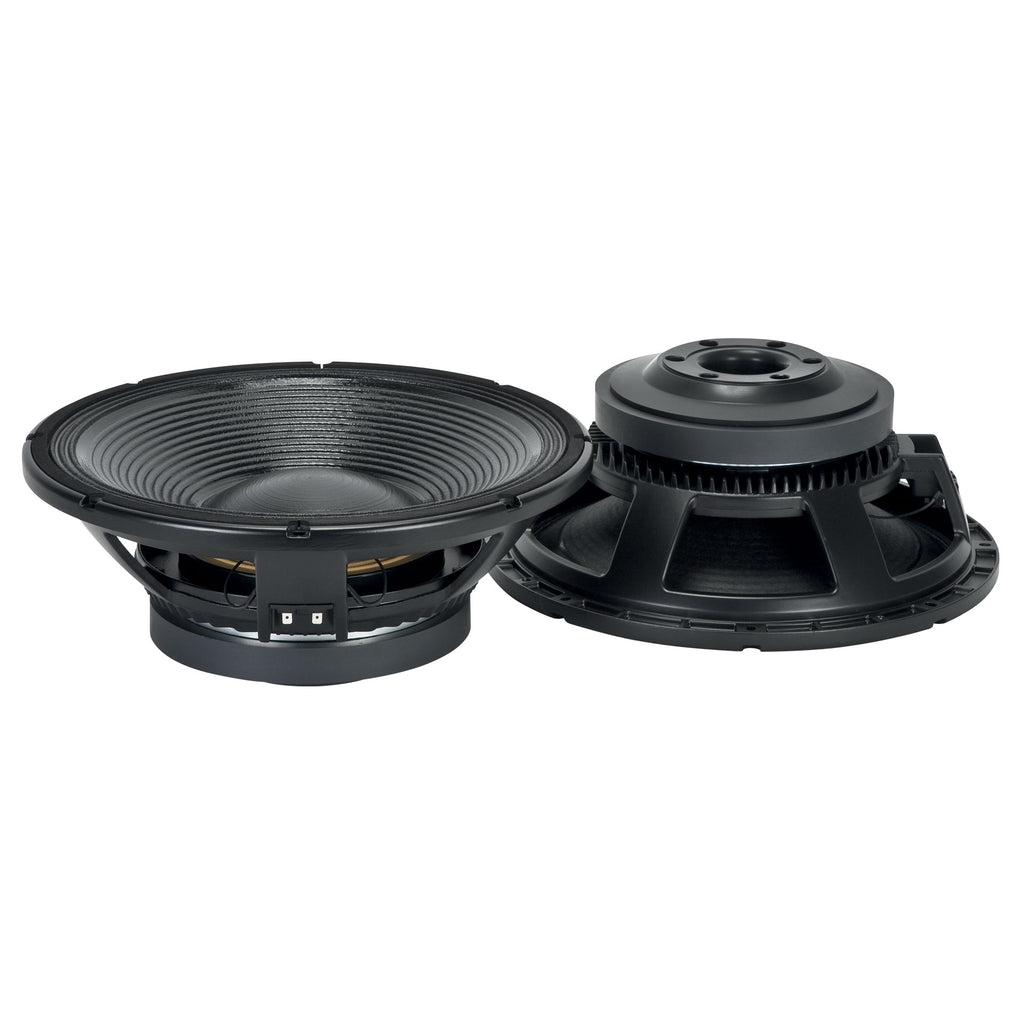

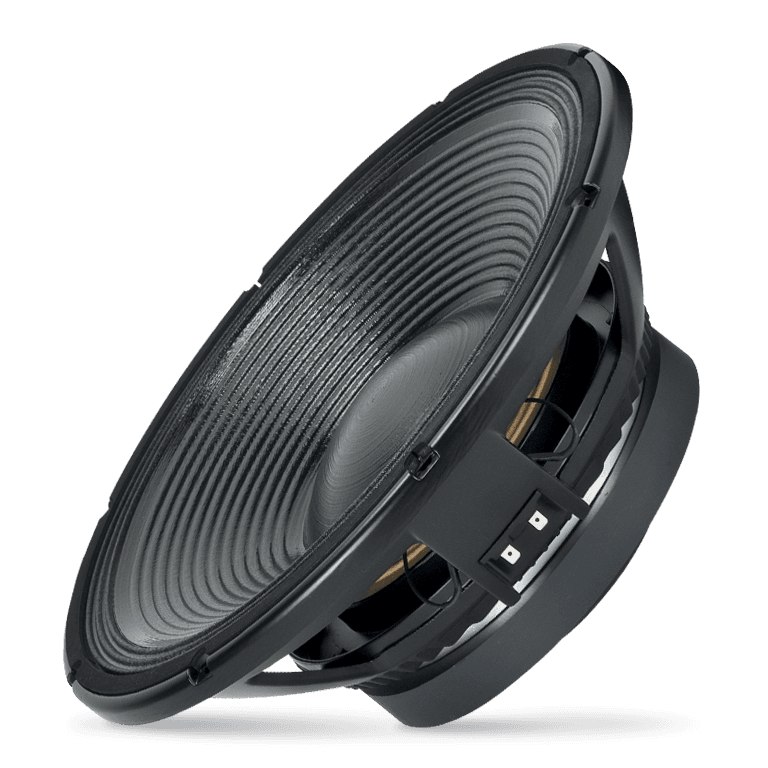

Very linear frequency response characteristics, extreme high power handling while generating the lowest harmonic distortion of any comparable 18-inch transducer within its application range. The LF15X401 uses a fibre loaded cone assembly along with a high excursion triple roll surround. This combination provides remarkable strength and a peak to peak maximum excursion of 50 mm. The new dual forced hyper-venting system guarantee a very efficient voice coil ventilation for minimum power compression and incredible power handling.
Features
- 4-inch, fiberglass inside/outside copper voice coil
- 3000W continuous program power handling
- 96.5 dB Sensitivity
- 30 Hz - 1.5 kHz Frequency range
- Dual Forced Hyperventing System
- Dual spider design with silicon based dampening control
- Triple-roll surround and corrugated straight cone geometry
Specifications
| General specifications | |
| Nominal Diameter | 15 inch / 381 mm |
| Rated Impedance | 8 ohm |
| Program Power (watt) | 3000 W |
| Power handling capacity | 1500 W |
| Sensitivity | 96.5 dB |
| Frequency range | 30 - 1500 Hz |
| Effective piston diameter | 340 mm / 13.39 inch |
| Max. Excursion Before Damage | 50 mm / 1.97 inch |
| Minimum Impedance (ohm) | 6.5 ohm |
| Voice Coil Diameter | 4.0 inch / 102 mm |
| Voice Coil Length | 30 mm / 1.18 inch |
| Number of layers | 2 |
| Kind of layers | inside/outside |
| Top Plate Thickness | 15 mm / 0.59 inch |
| Cone Design | Straight |
| Surround Design | Triple roll |
| Dual-force air ventilation | Yes |
| Thiele - small parameters | |
| Resonance frequency (Fs) | 34 Hz |
| DC resistance (Re) (ohm) | 5.50 ohm |
| Mechanical factor | 7.60 Qms |
| Electrical factor | 0.30 Qes |
| Total factor | 0.29 Qts |
| Bl factor (Bl) (T x m) | 26.50 T x m |
| Effective moving mass (Mms) | 170.0 g |
| Equivalent Cas air loaded (Vas) | 146.0 liters |
| Effective piston area (Sd) | 0.090 m2 |
| Max. linear excursion (Xmax) | 12 mm |
| Voice coil inductance @ 1kHz (Le1k) | 1.30 mH |
| Half-space efficency (Eff) | 1.90% |
| Mounting information | |
| Overall diameter | 393 mm / 15.47 inches |
| Bolt circle diameter | 371-376 mm / 14.61-14.8 inch |
| Bolt hole diameter | 7 mm / 0.28 inch |
| Front mount baffle cut-out | 354 mm / 13.94 inch |
| Rear mount baffle cut-out | 354 mm / 13.94 inch |
| Volume occupied by the driver | 4.3 liters / 0.17 ft3 |
| Standard compliance | |
| Safety agency | CE compliant |
| Size / Weight | |
| Height | 161 mm / 6.34 inches |
| Diameter | 393 mm / 15.47 inches |
| Weight | 12 kg / 26.46 lbs |
| Shipping information | |
| Package Height | 209 mm / 8.23 inches |
| Package Width | 439 mm / 17.28 inches |
| Package Depth | 434 mm / 17.09 inches |
| Package Weight | 13.5 kg / 29.76 lbs |
