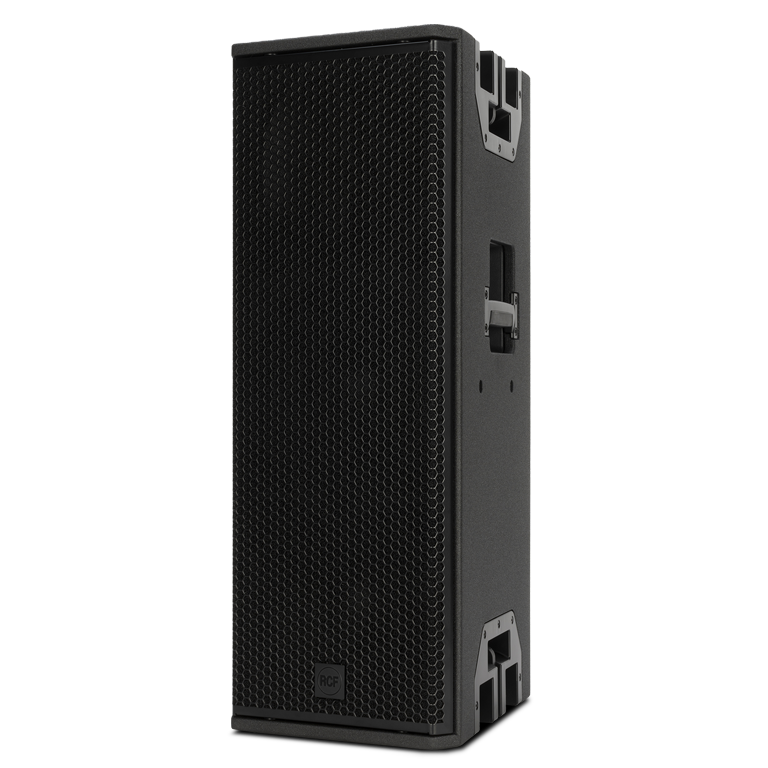

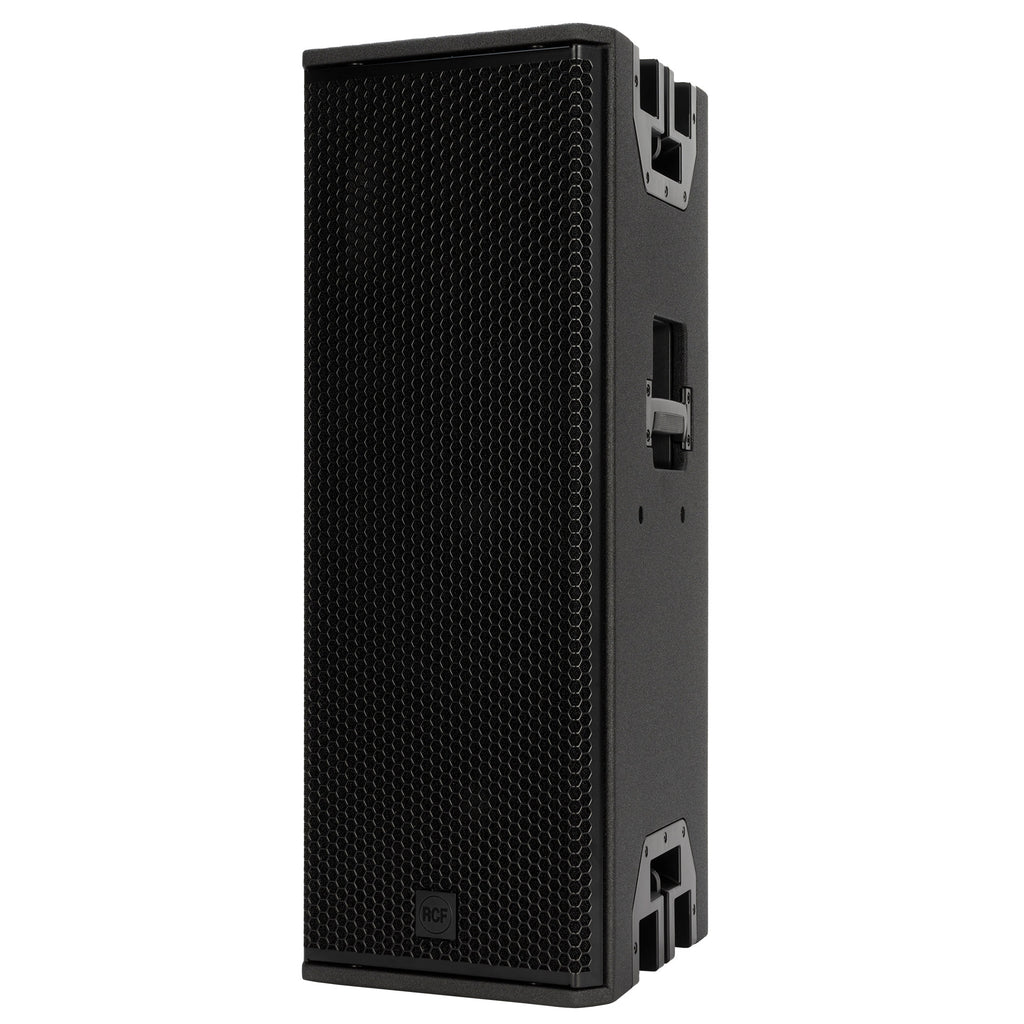

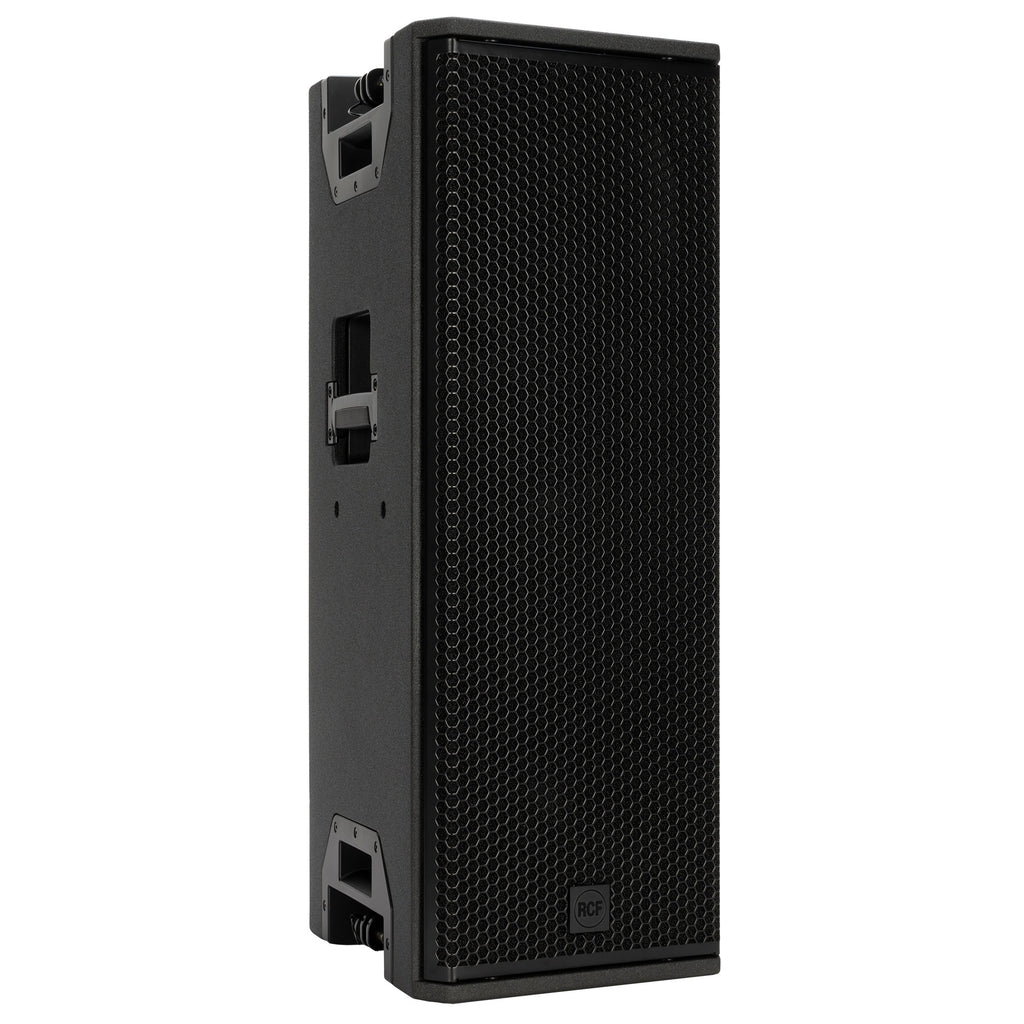

TOURING | KXW 4-A | WIDE DIRECTIVITY ACTIVE TWO-WAY SPEAKER | Technical Specifications | 134 dB max SPL | Rotatable 100° x 50° coverage
Technical Specifications
| Acoustical specifications |
| Frequency Response |
45 Hz - 20000 Hz |
| Max SPL @ 1m |
134 dB |
| Horizontal coverage angle |
100° |
| Vertical coverage angle |
50° |

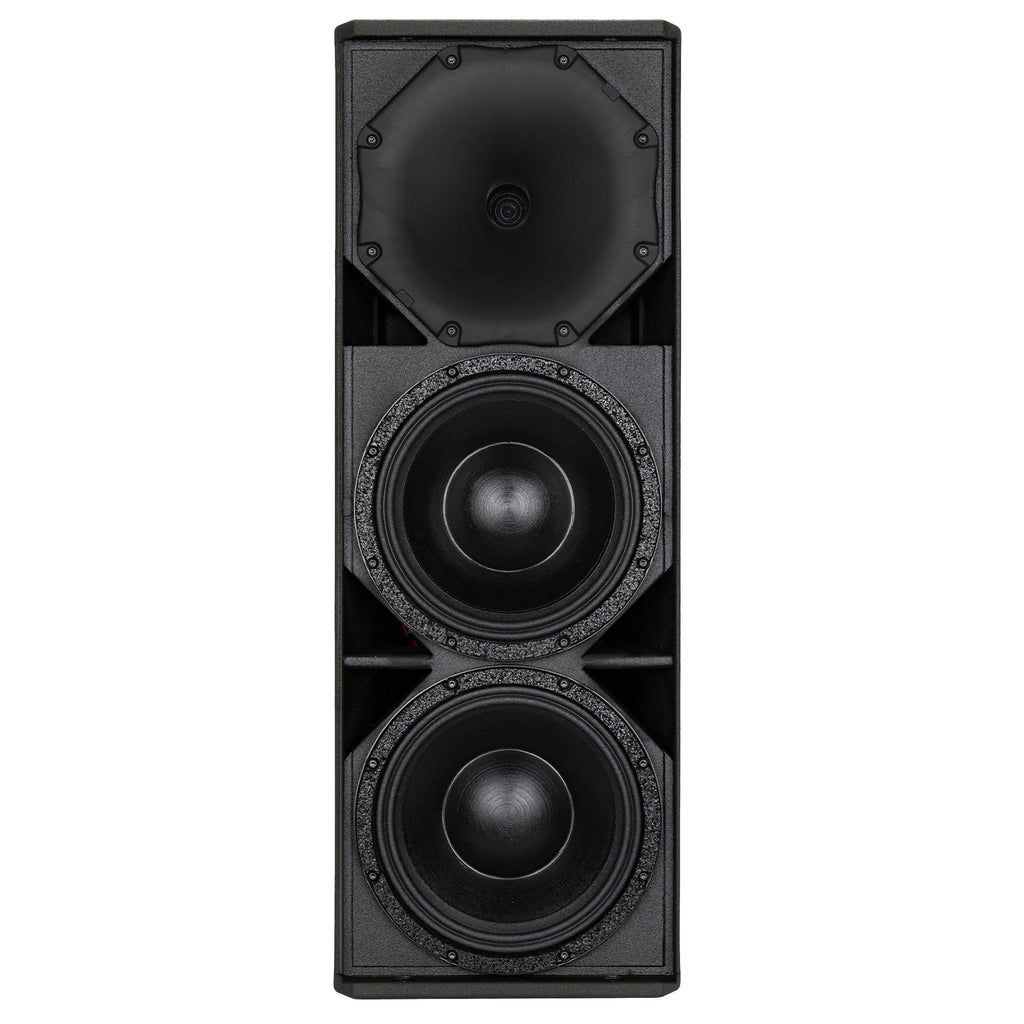

| Transducers |
| Compression Driver |
1 x 1.4'' neo, 4.0'' v.c |
| Woofer |
2 x 10'' neo, 3.0'' v.c |

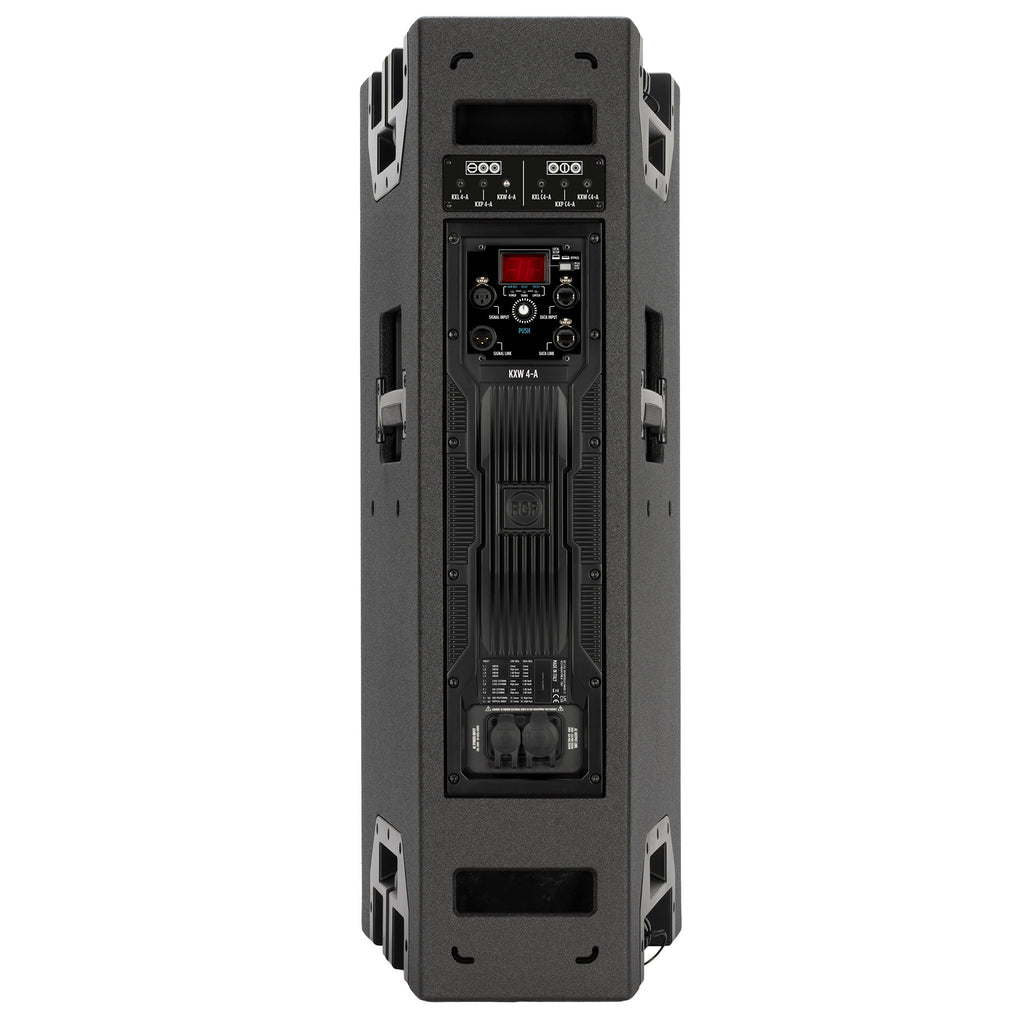

| Input/Output section |
| Input signal |
bal/unbal |
| Input connectors |
XLR, RDNet Ethercon |
| Output connectors |
Input sensitivity |
| +4 dBu |
| Processor section |
| Crossover Frequencies |
900Hz |
| Protections |
Thermal, RMS |
| Limiter |
Fast Limiter |
| Controls |
| Gain Reduction, delay, proces., 8 sel. presets |
Onboard |
| Power section |
| Total Power |
3200 W Peak |
| High frequencies |
1200 W Peak |
| Low frequencies |
2000 W Peak |
| Cooling |
Convection |
| Connections |
| Powercon TRUE1 TOP IN/OUT |
| Standard compliance |
| Safety agency |
CE compliant |
| Physical specifications |
| Cabinet/Case Material |
Baltic birch plywood |
| Hardware |

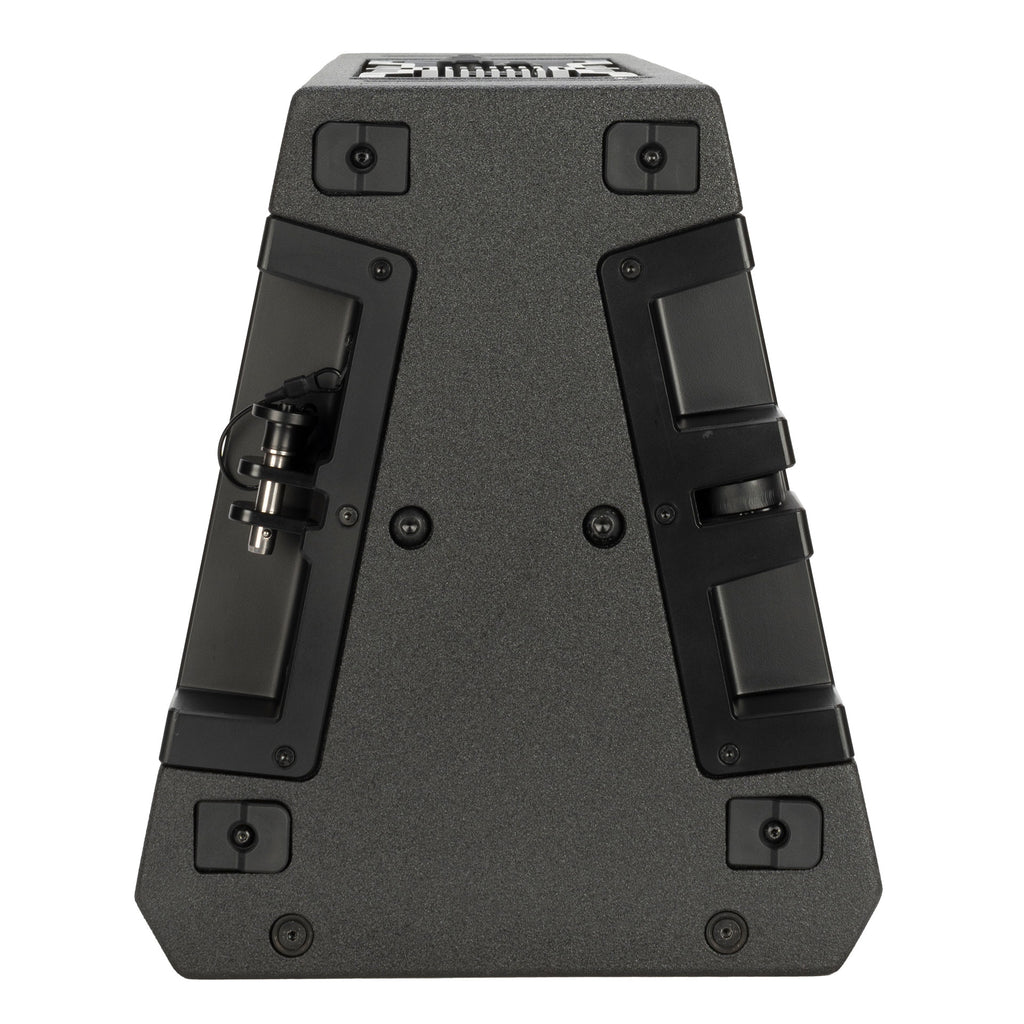

Array fittings, 2xM10 on the top, 2xM8 on each side |

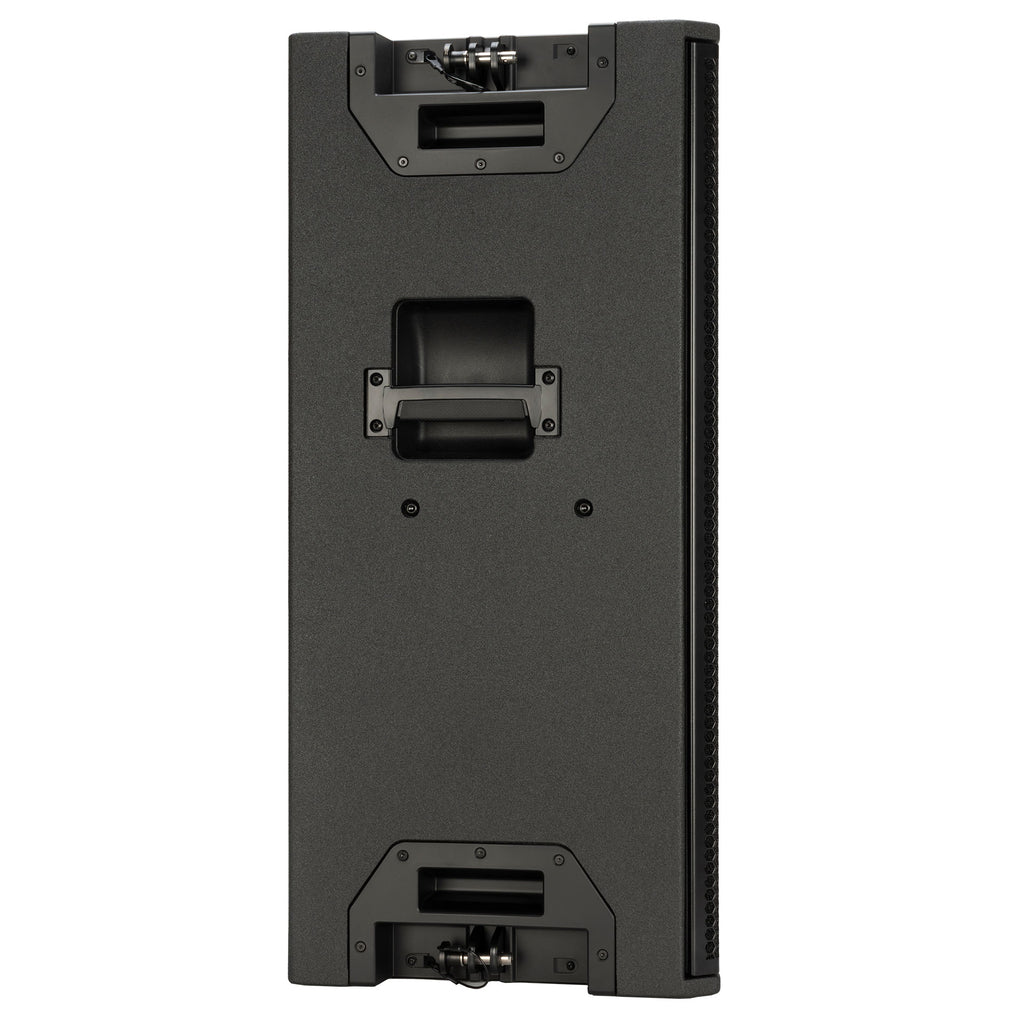

| Handles |
2 Side, 2 Rear |

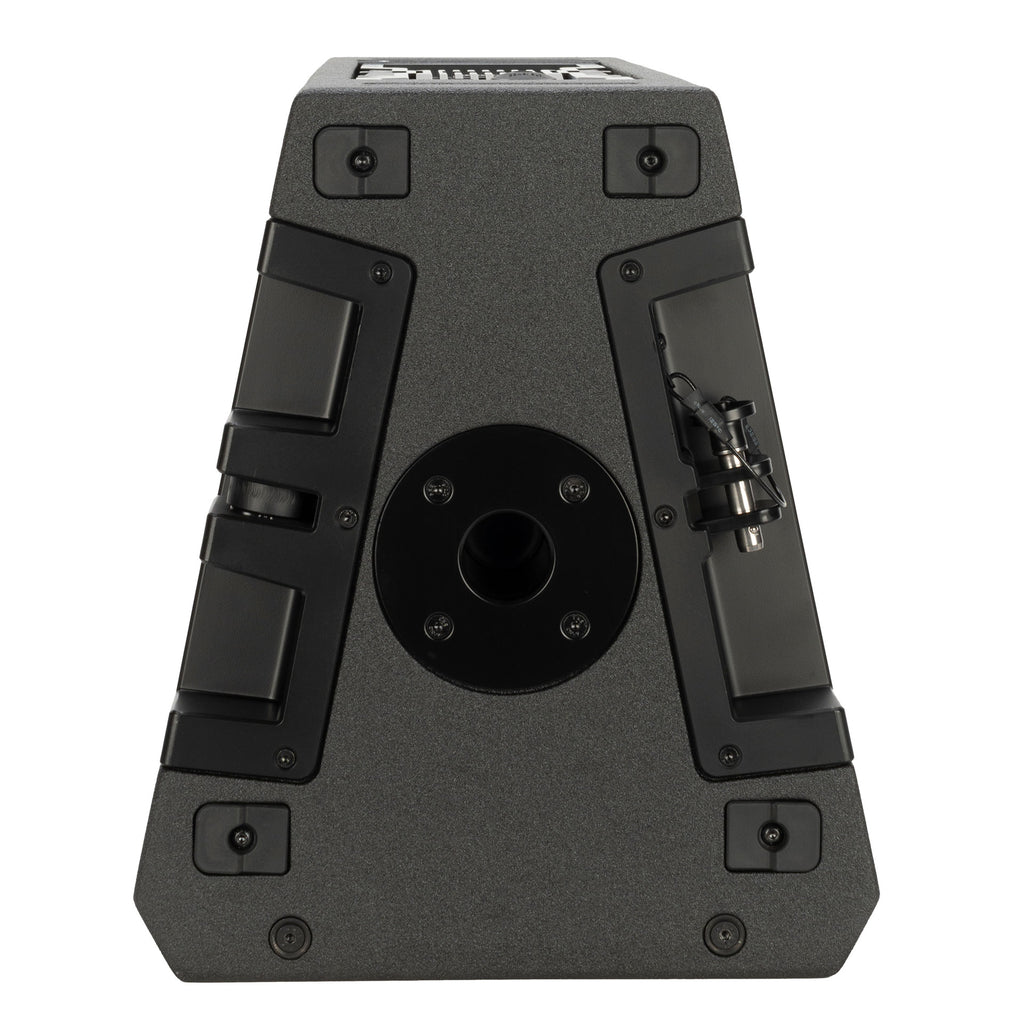

| Pole mount/Cap |
35 mm insert |

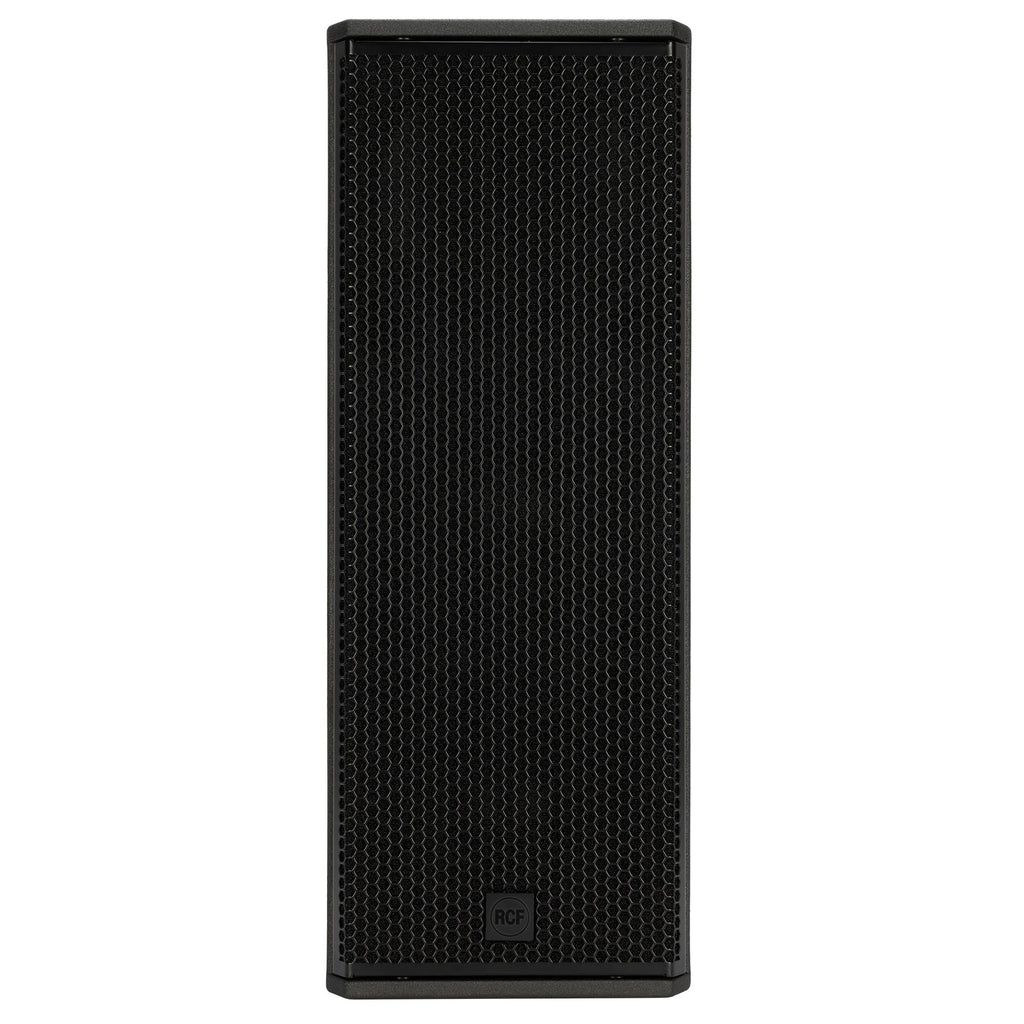

| Grille |
Steel with clothing |
| Color |
Black |
| Size / Weight |
| Height |
825 mm / 32.48 inches |
| Width |
310 mm / 12.2 inches |
| Depth |
369 mm / 14.53 inches |
| Weight |
30.4 kg / 67.02 lbs |
| Shipping information |
| Package Height |
410 mm / 16.14 inches |
| Package Width |
865 mm / 34.06 inches |
| Package Depth |
365 mm / 14.37 inches |
| Package Weight |
33.5 kg / 73.85 lbs |
