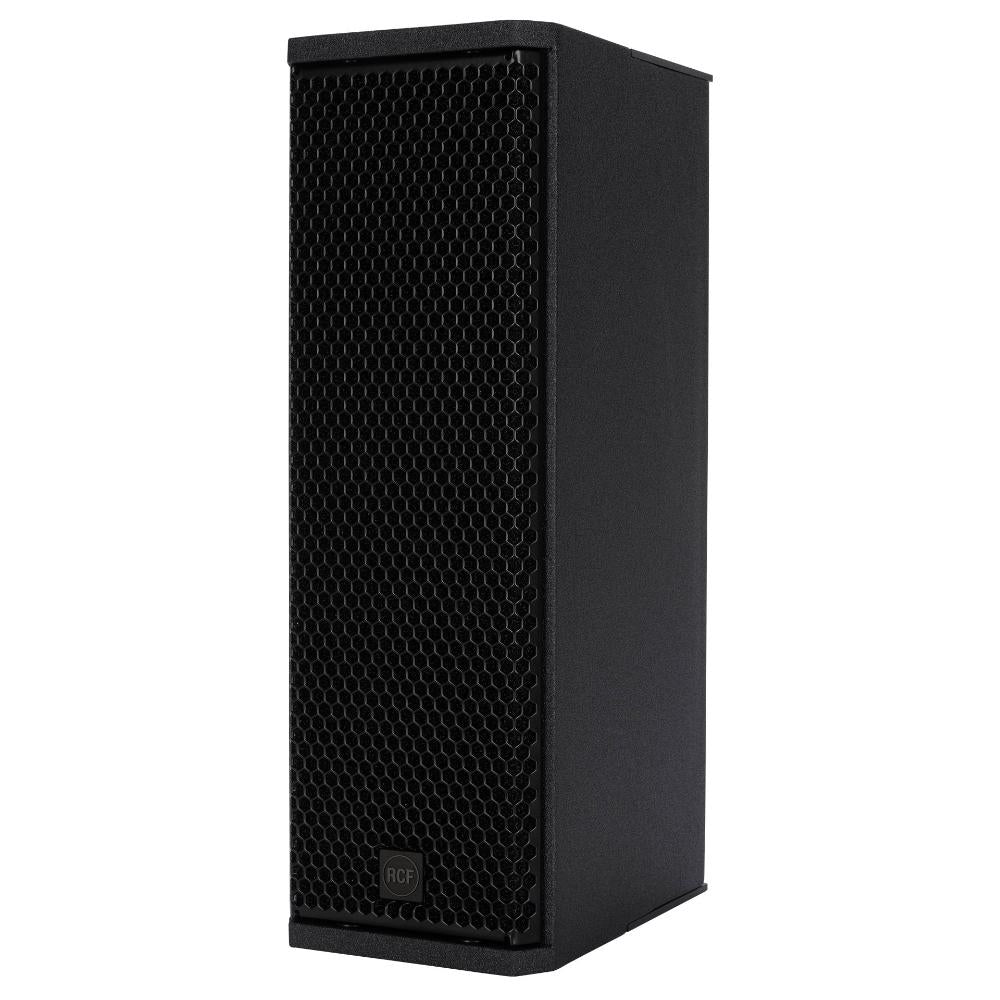

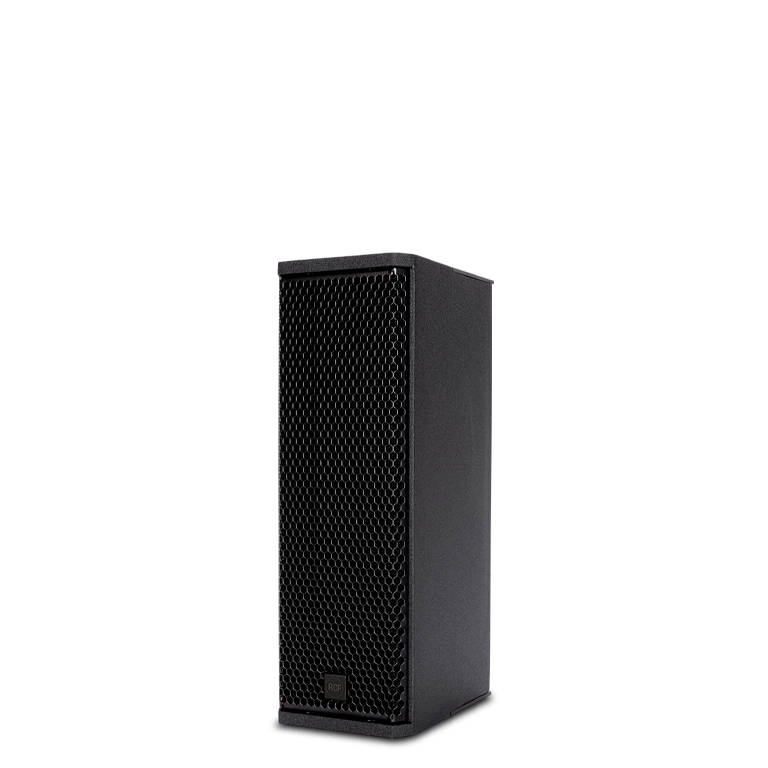

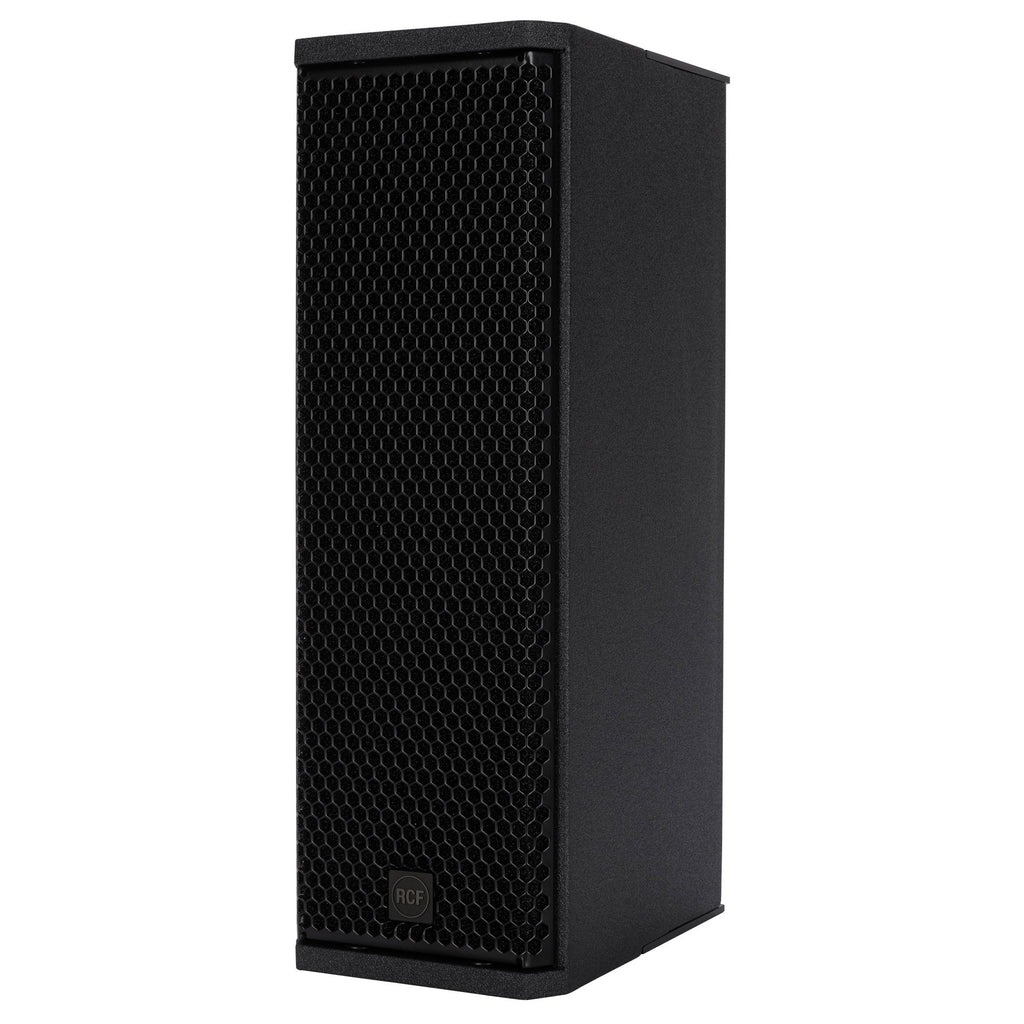

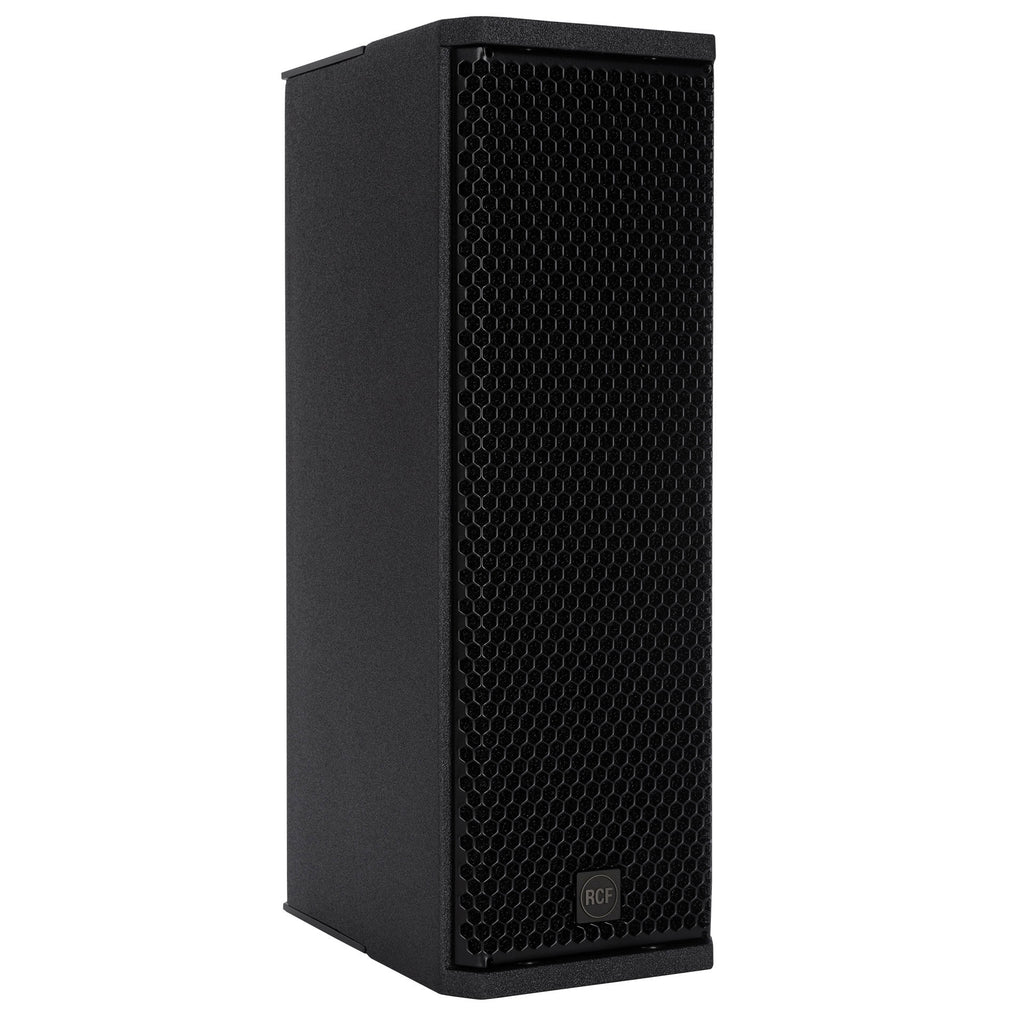

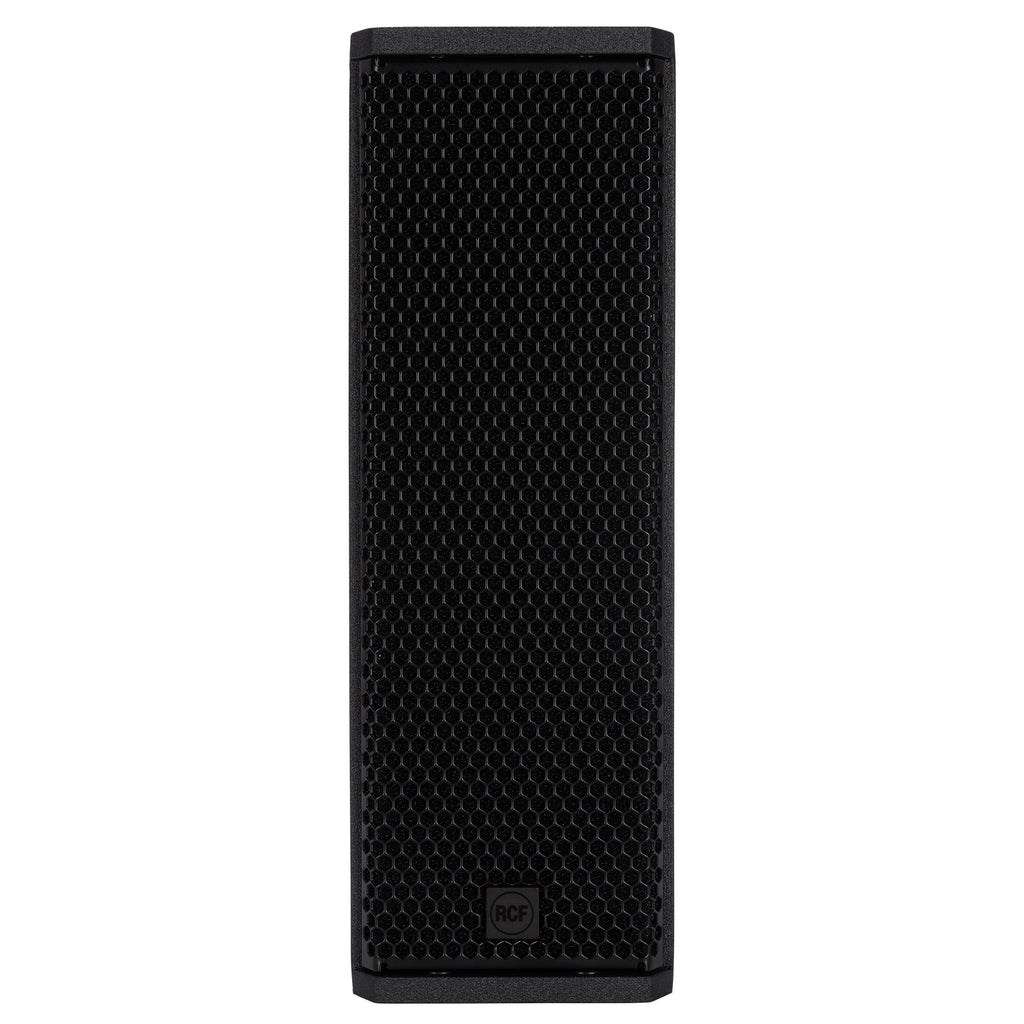

TOURING | KX 515-A | HIGH-PERFORMANCE 2-WAY POINT-SOURCE ACTIVE SPEAKER | Technical Specifications | 127 dB max SPL | Rotatable 100° x 70° CMD horn
Technical Specifications
| Acoustical specifications |
| Frequency Response |
70 Hz - 20000 Hz |
| Max SPL @ 1m |
127 dB |
| Horizontal coverage angle |
100° |
| Vertical coverage angle |
70° |

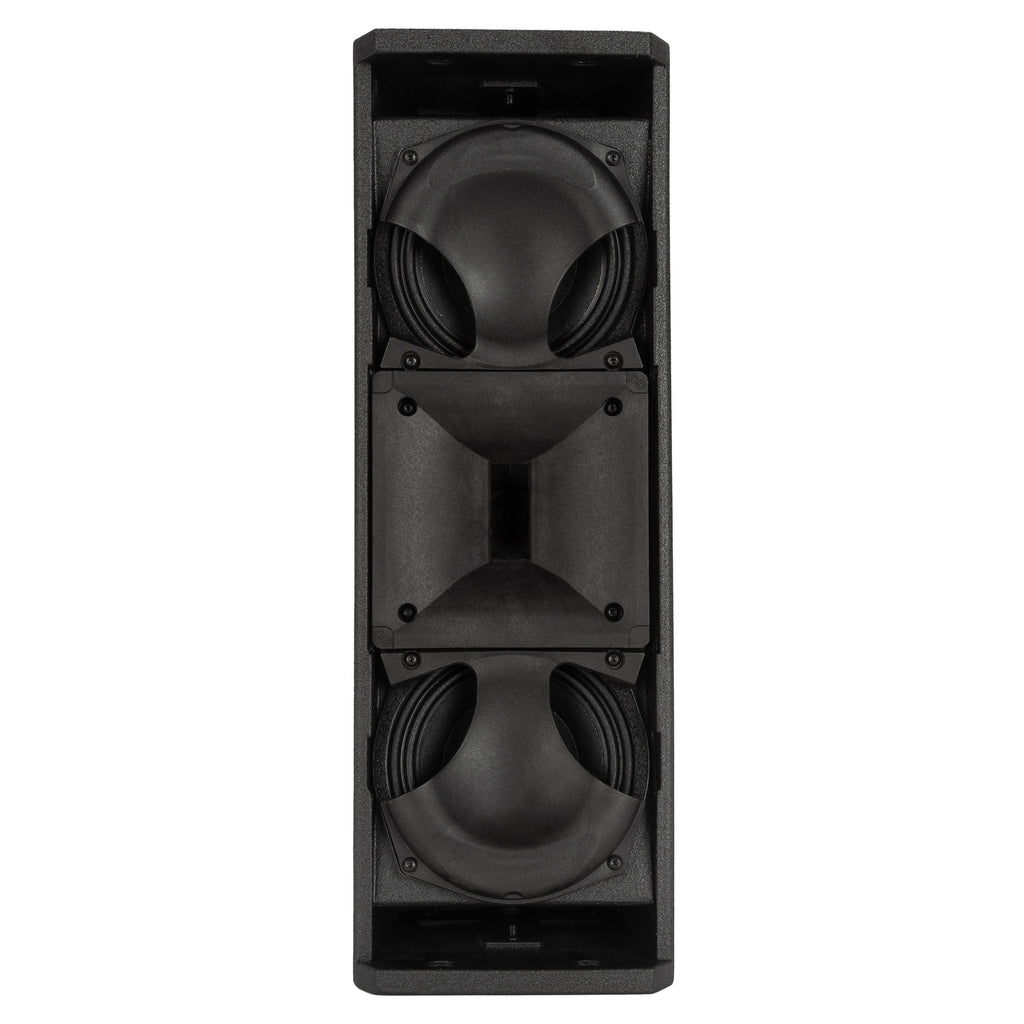

| Transducers |
| Compression Driver |
1 x 1.0'' neo, 1.75'' v.c |
| Woofer |
2 x 5.0'' neo, 2.0'' v.c |

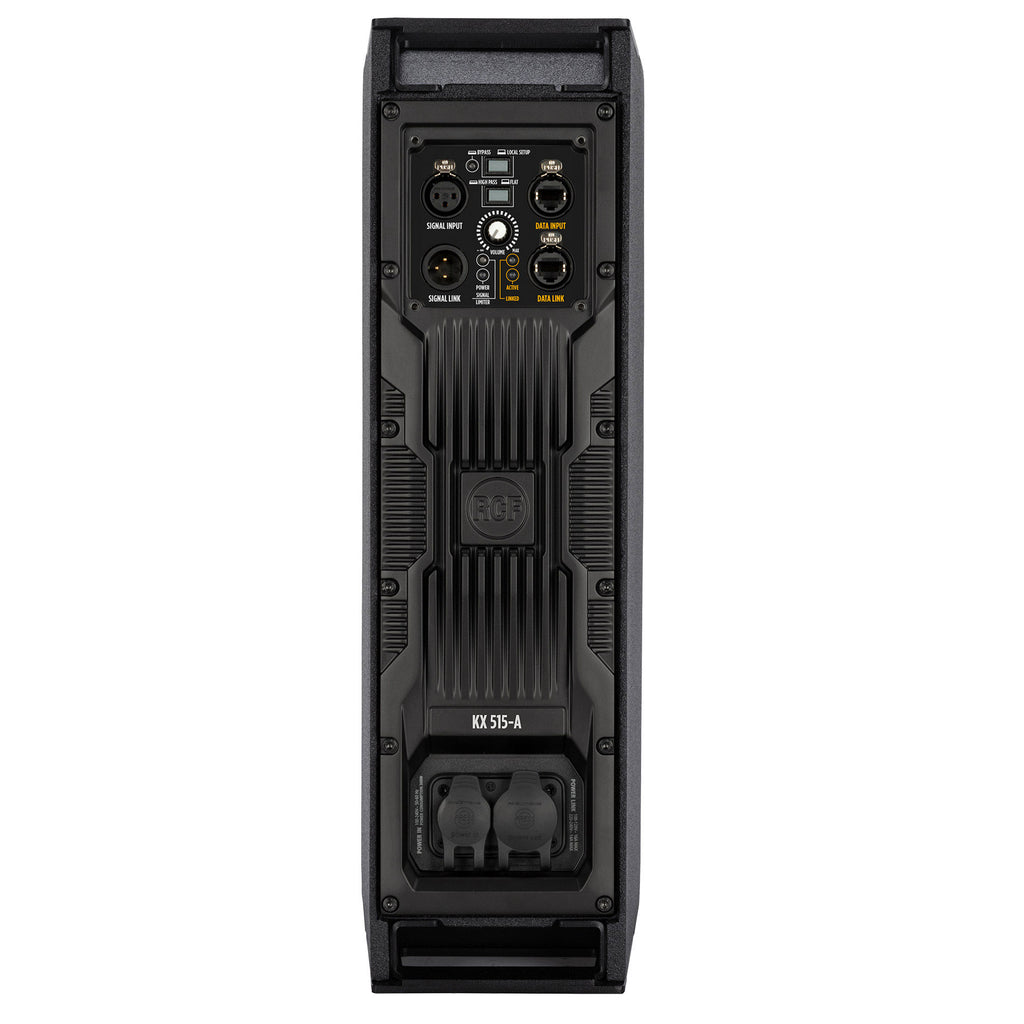

| Input/Output section |
| Input signal |
bal/unbal |
| Input connectors |
XLR, RDNet Ethercon |
| Output connectors |
Input sensitivity |
| -2 dBu/+4 dBu |
| Processor section |
| Crossover Frequencies |
1200 |
| Protections |
Excurs. |
| Limiter |
Fast Limiter |
| Controls |
| Bypass, Linear/High Pass, Volume |
Onboard |
| Power section |
| Total Power |
2000 W Peak |
| High frequencies |
600 W Peak |
| Low frequencies |
1400 W Peak |
| Cooling |
Convection |
| Connections |
| Powercon TRUE1 TOP IN/OUT |
| Standard compliance |
| Safety agency |
CE compliant |
| Physical specifications |
| Cabinet/Case Material |
Baltic birch plywood |
| Hardware |
2X M10 TOP AND BOTTOM |
| 2X PIN D.10 |
Handles |
| 2 TOP AND BOTTOM |

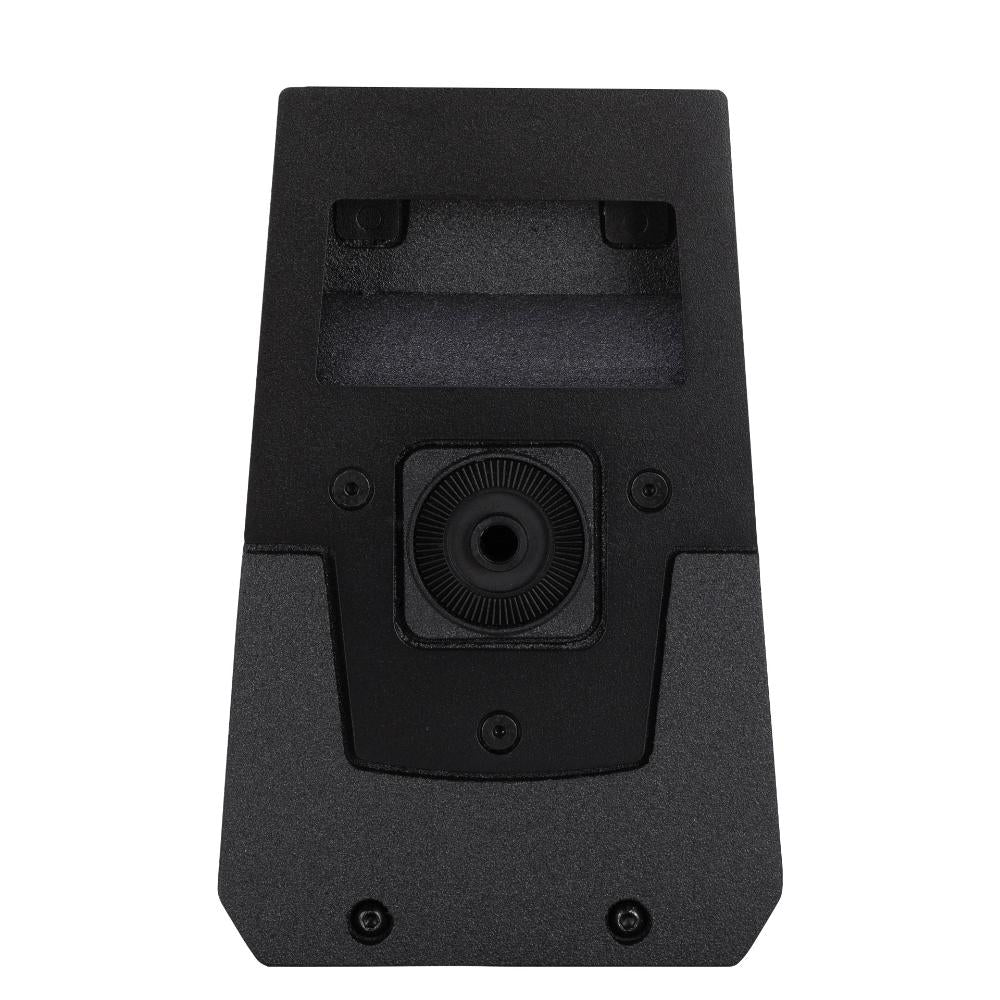

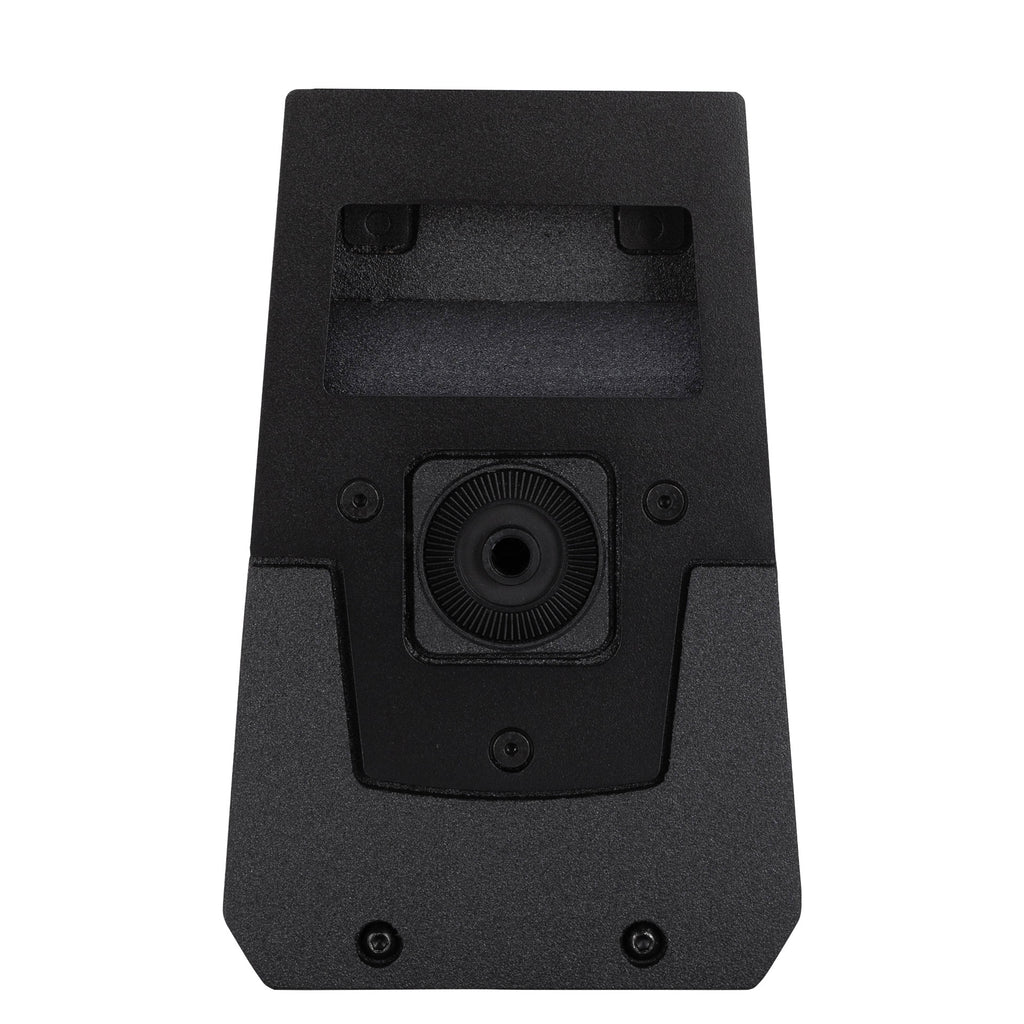

Pole mount/Cap |
| Quick-fit socket |

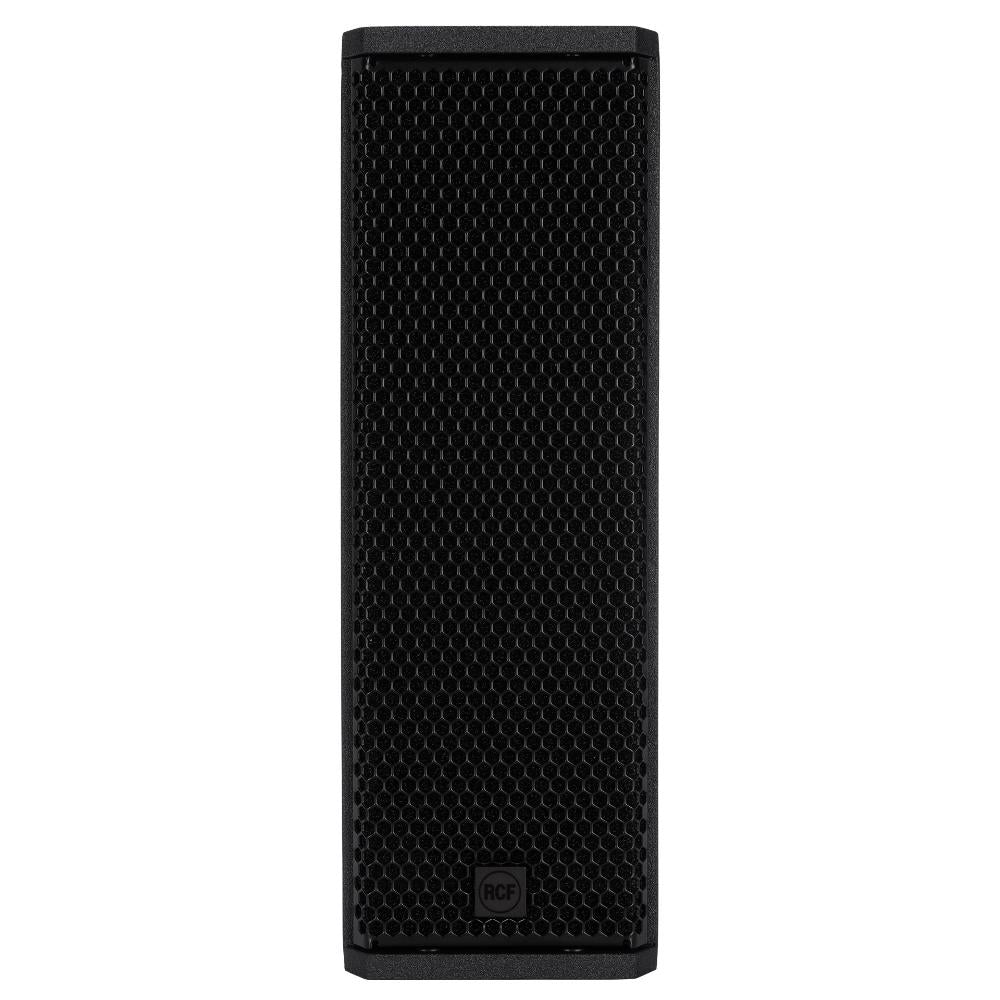

Grille |
| Steel with clothing |

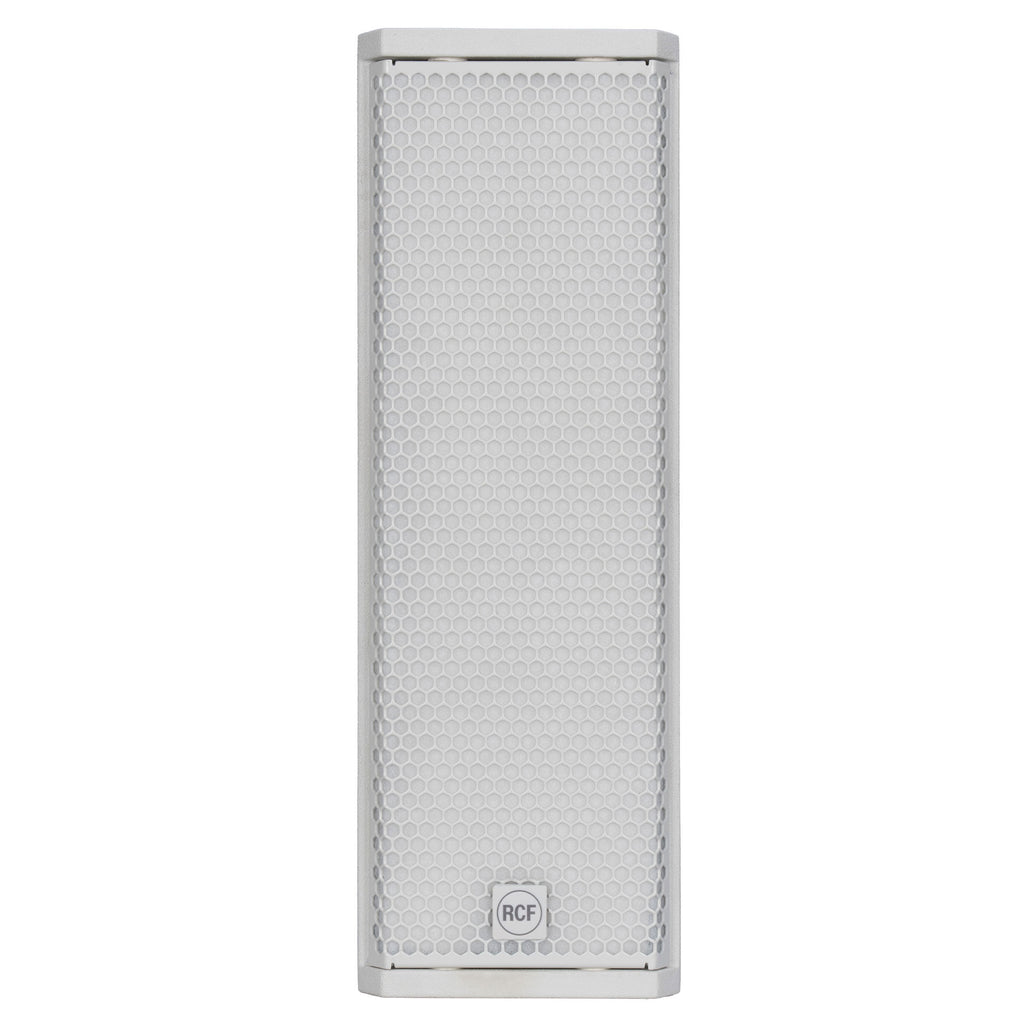

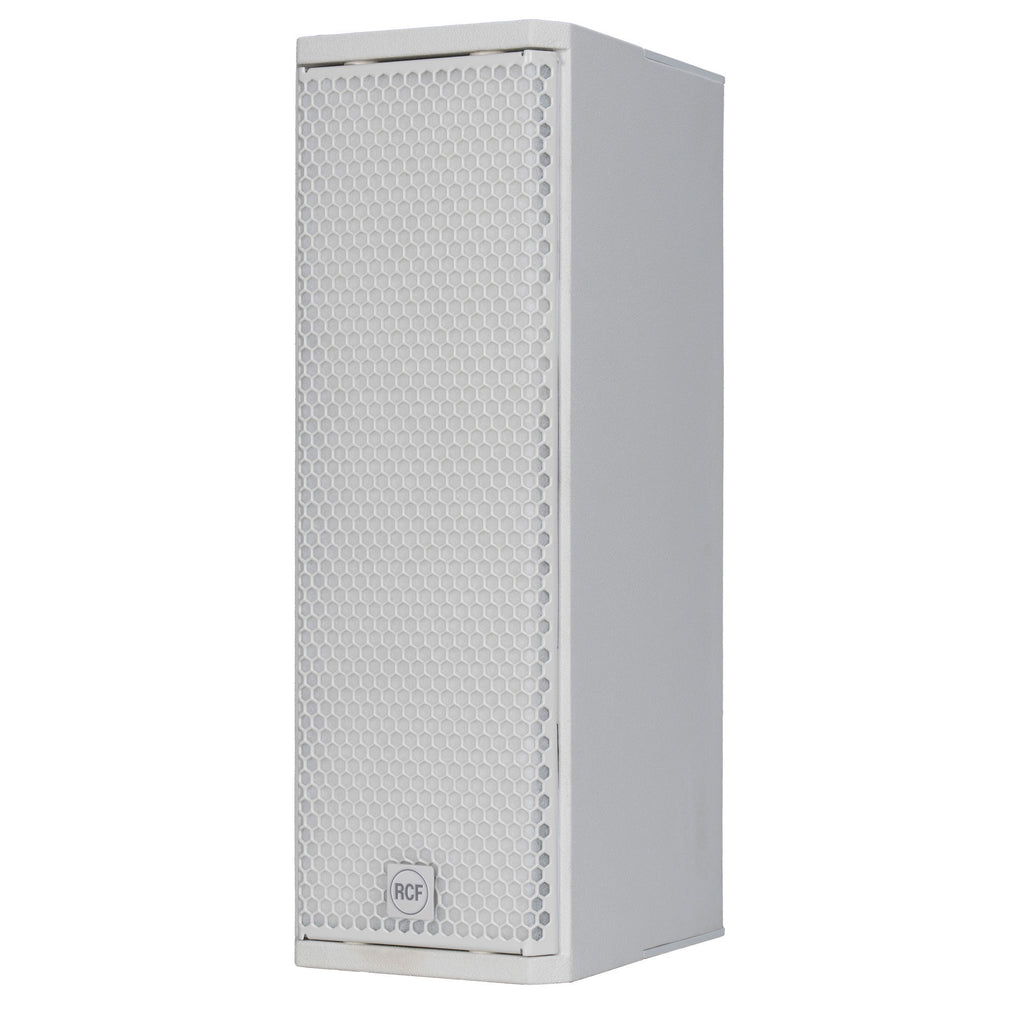

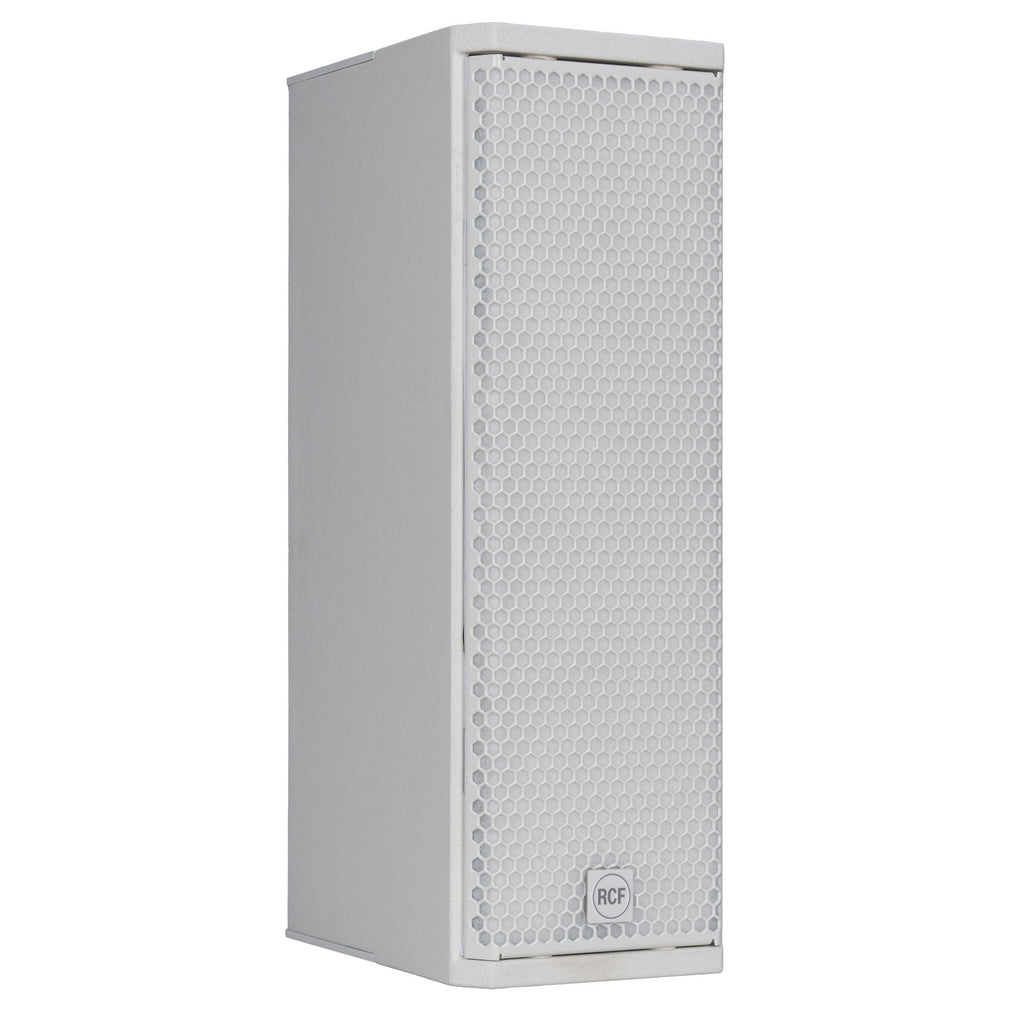

Color |
| Black, White |
| Size / Weight |
| Height |
456 mm / 17.95 inches |
| Width |
154 mm / 6.06 inches |
| Depth |
237.5 mm / 9.35 inches |
| Weight |
9.8 kg / 21.61 lbs |
| Shipping information |
| Package Height |
510 mm / 20.08 inches |
| Package Width |
290 mm / 11.42 inches |
| Package Depth |
200 mm / 7.87 inches |
| Package Weight |
11.3 kg / 24.91 lbs |
