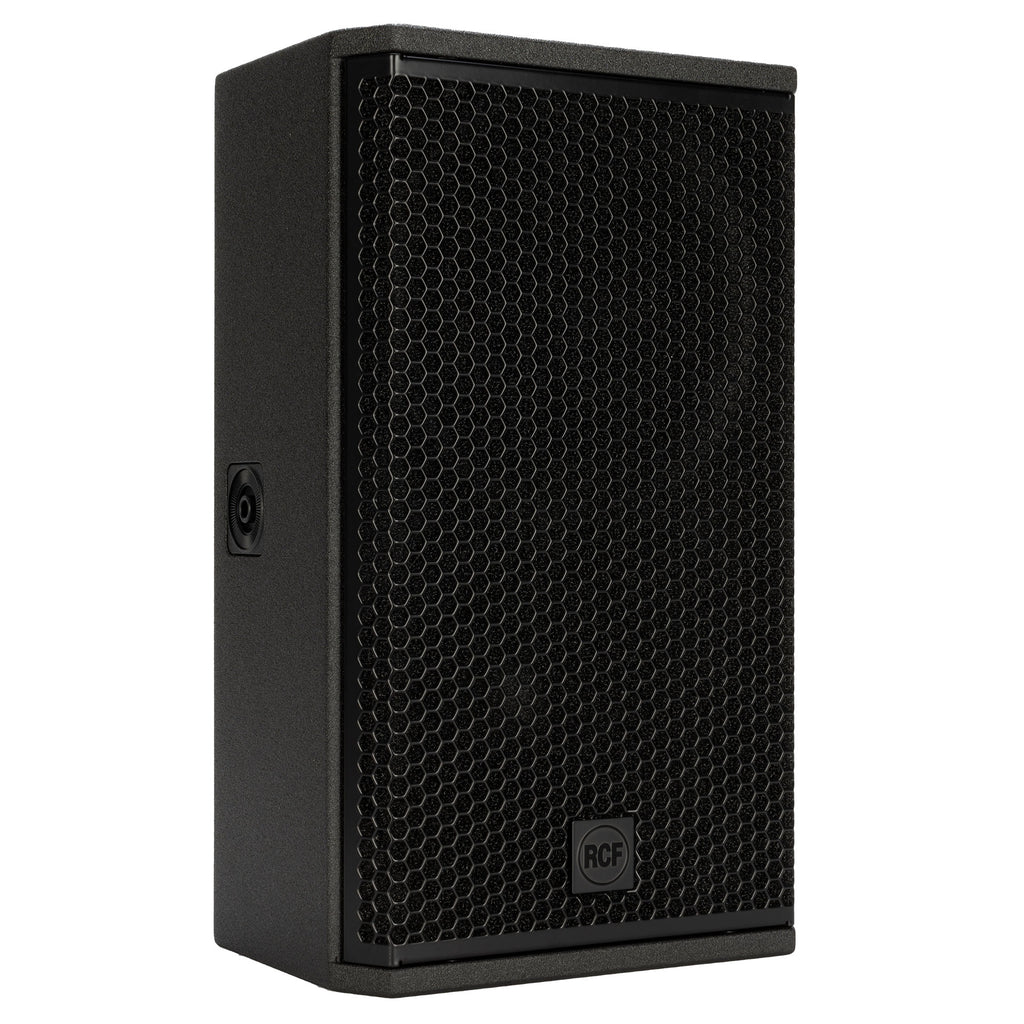

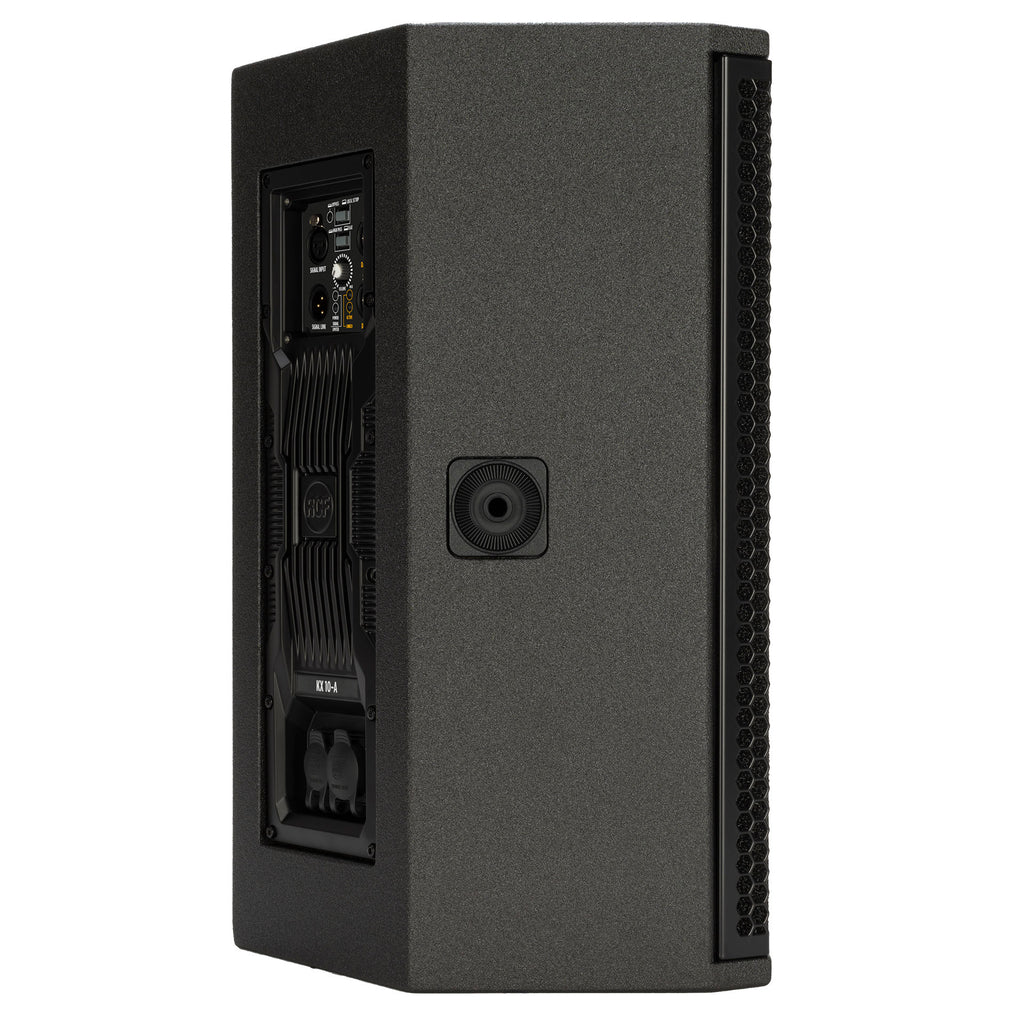

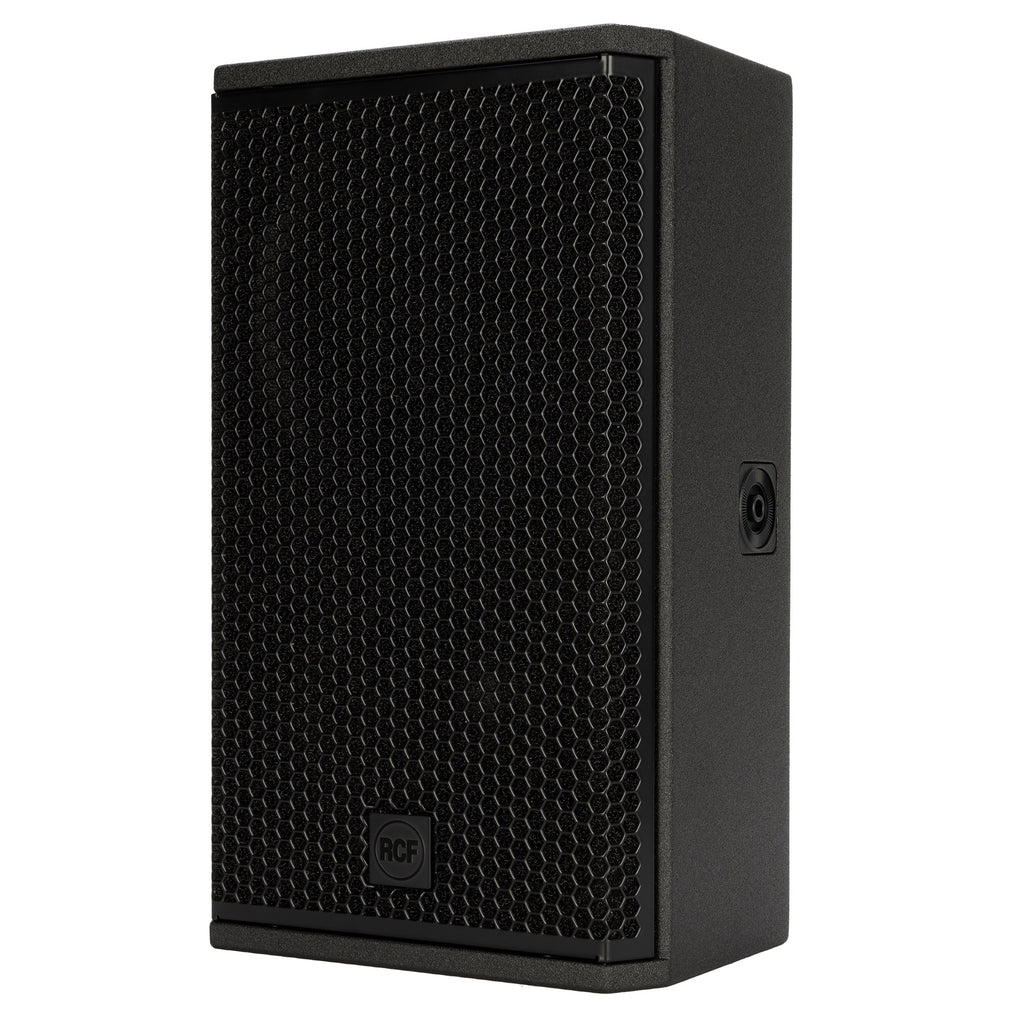

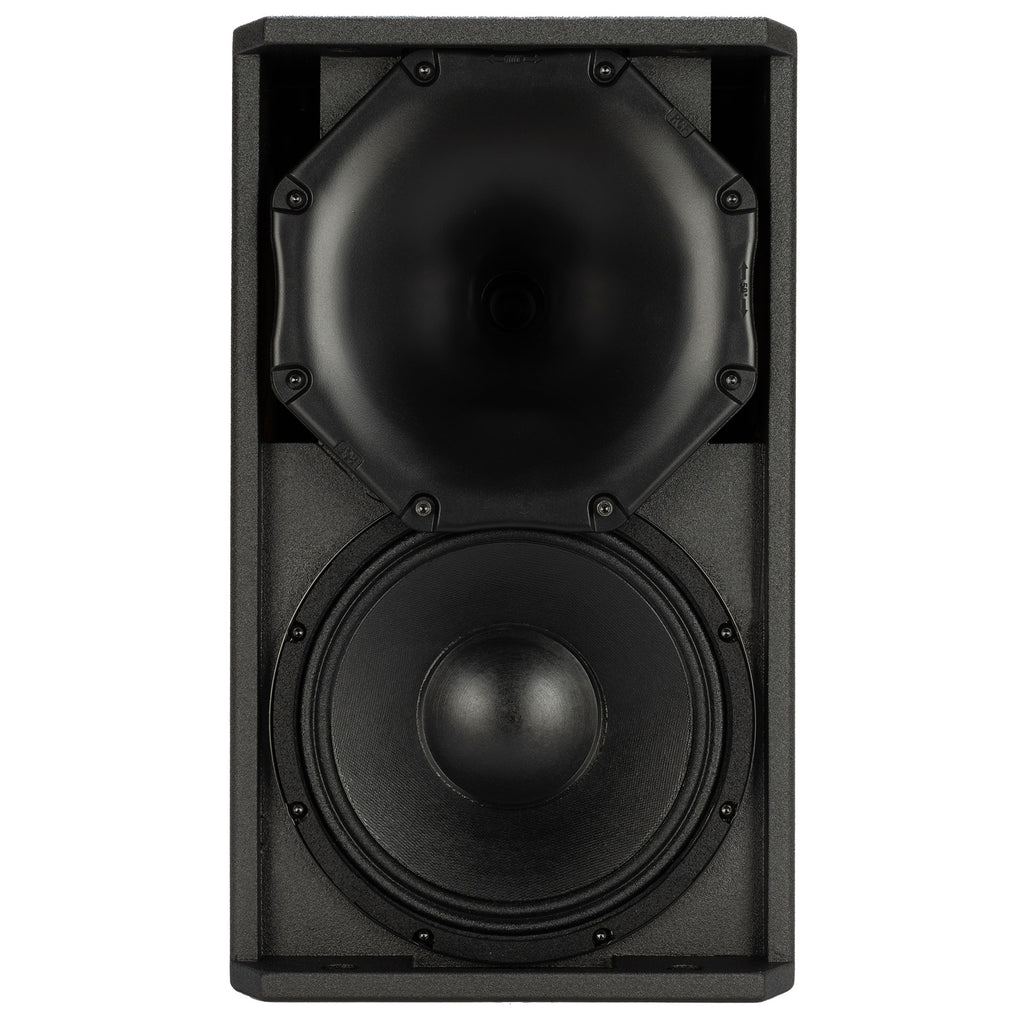

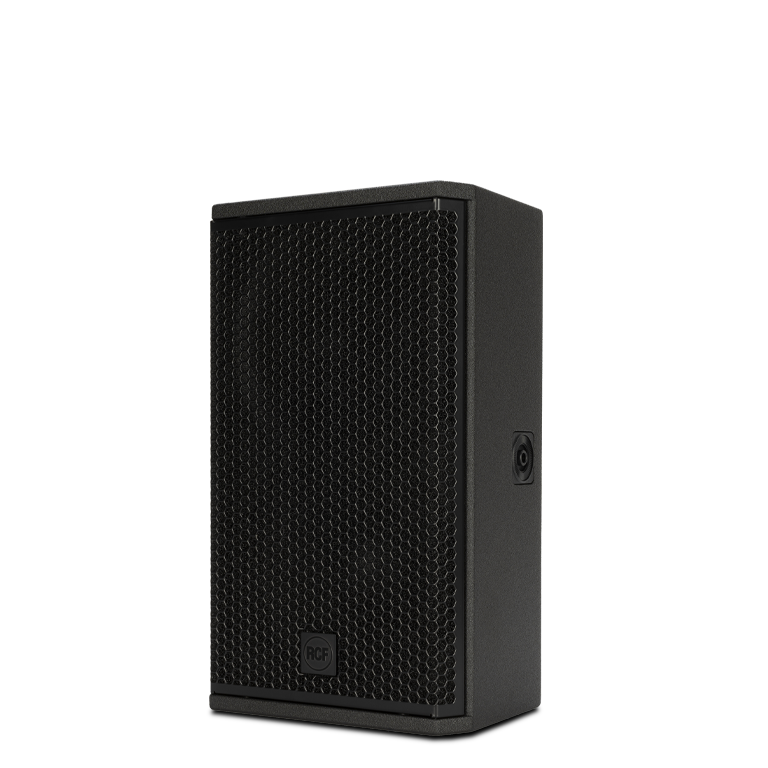

TOURING | KX 10-A | HIGH-PERFORMANCE 2-WAY POINT-SOURCE ACTIVE SPEAKER | 130 dB SPL Max | Rotatable 100° x 50° TRW Horn | 10’’ neodymium woofer, 2.5’’ voice coil
Technical Specifications
| Acoustical specifications |
| Frequency Response |
60 Hz - 20000 Hz |
| Max SPL @ 1m |
130 dB |
| Horizontal coverage angle |
100° |
| Vertical coverage angle |
50° |
| Transducers |
| Compression Driver |
1 x 1.0'' neo, 1.75'' v.c |
| Woofer |
10'' neo, 2.5'' v.c |
| Input/Output section |
| Input signal |
bal/unbal |

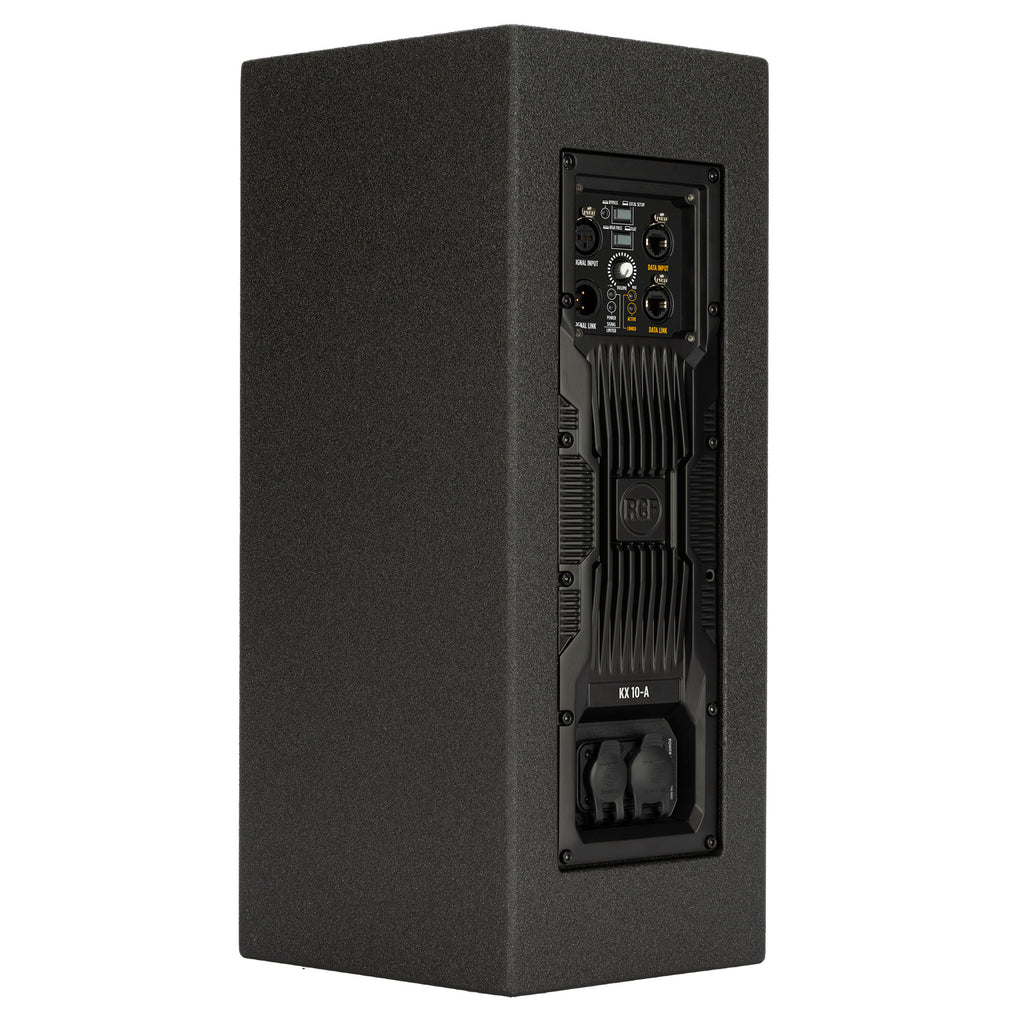

| Input connectors |
XLR, RDNet Ethercon |
| Output connectors |
Input sensitivity |
| -2 dBu/+4 dBu |
| Processor section |
| Crossover Frequencies |
1600 Hz |
| Protections |
Thermal, HF |
| Limiter |
Fast Limiter |
| Controls |
| Bypass, Linear/High Pass, Volume |
Onboard |
| Power section |
| Total Power |
2000 W Peak |
| High frequencies |
600 W Peak |
| Low frequencies |
1400 W Peak |
| Cooling |
Convection |
| Connections |
| Powercon TRUE1 TOP IN/OUT |
| Standard compliance |
| Safety agency |
CE compliant |
| Physical specifications |
| Cabinet/Case Material |
Baltic birch plywood |
| Hardware |

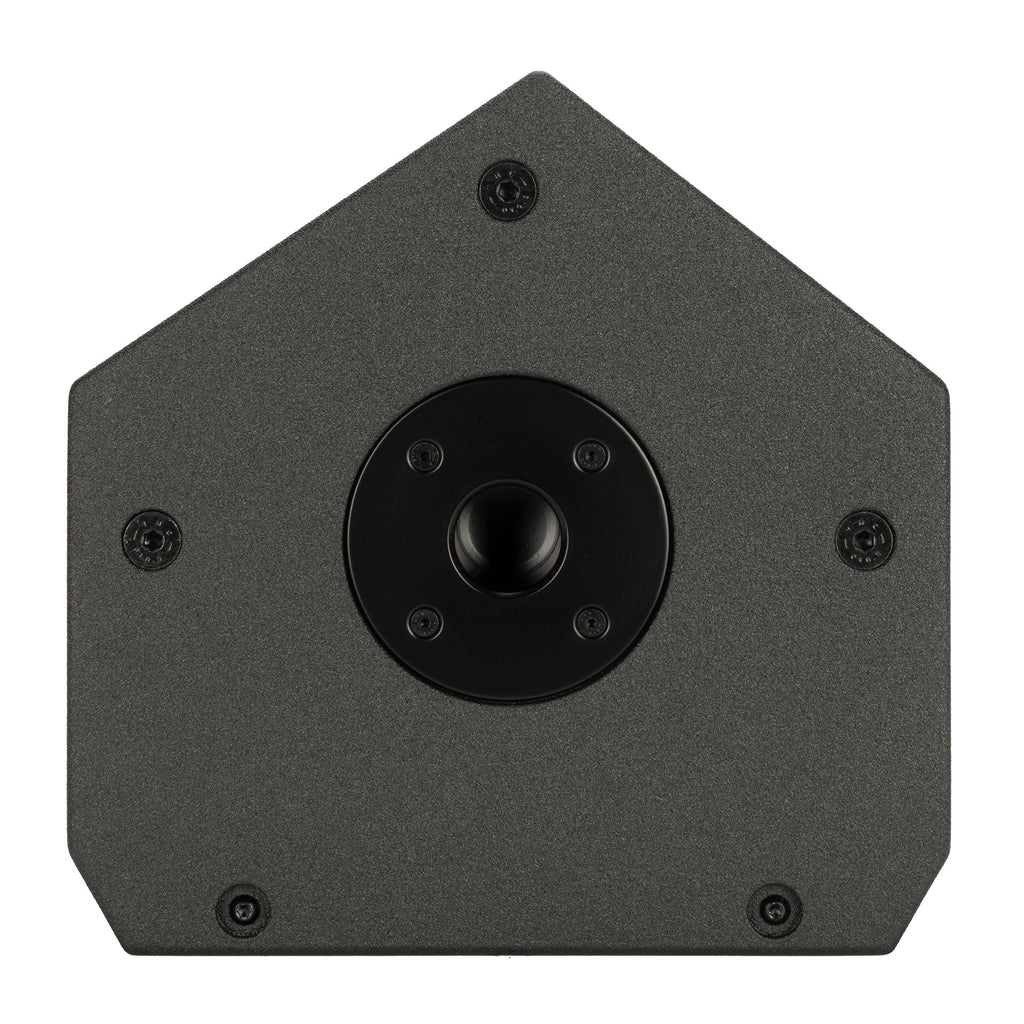

3X M10 TOP AND BOTTOM |
| 2X PIN D.10 AND M10 SIDE |

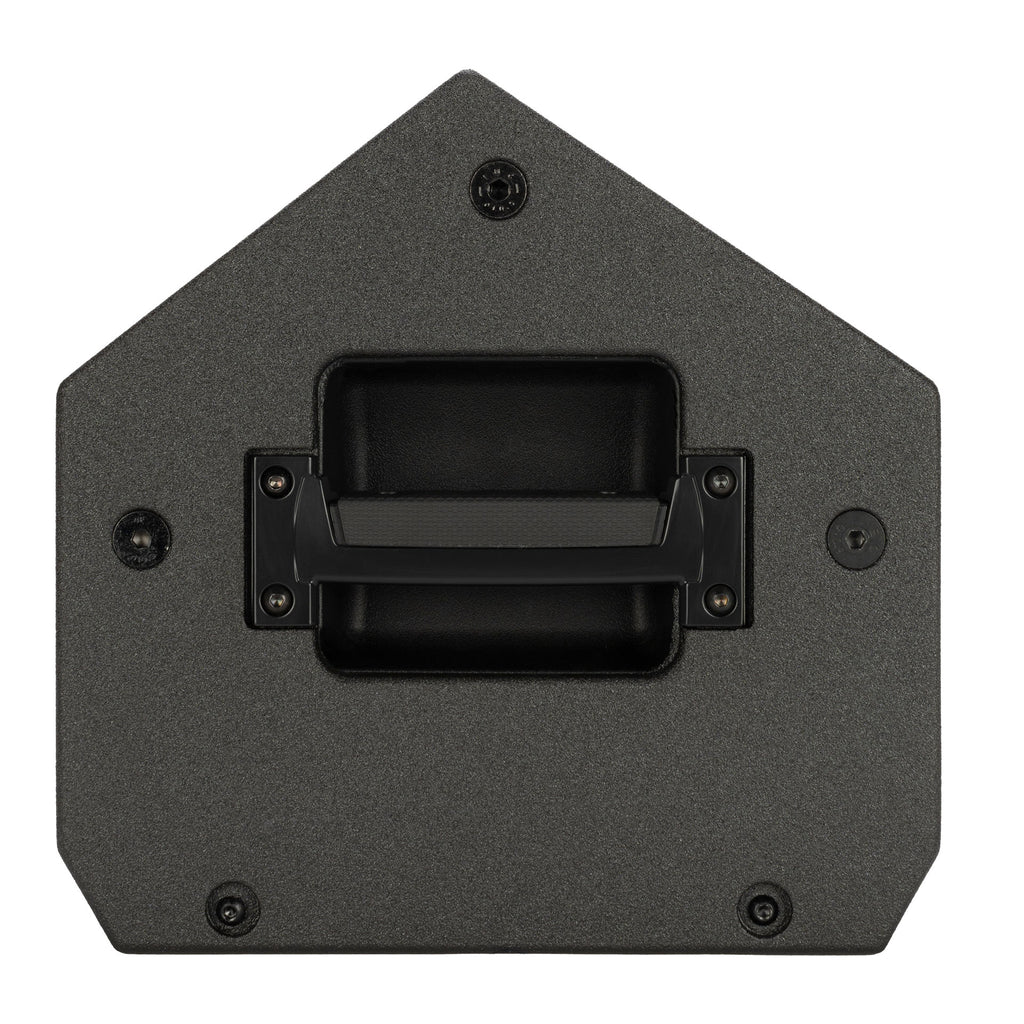

Handles |
| 1 TOP |
Pole mount/Cap |
| 35 mm insert |

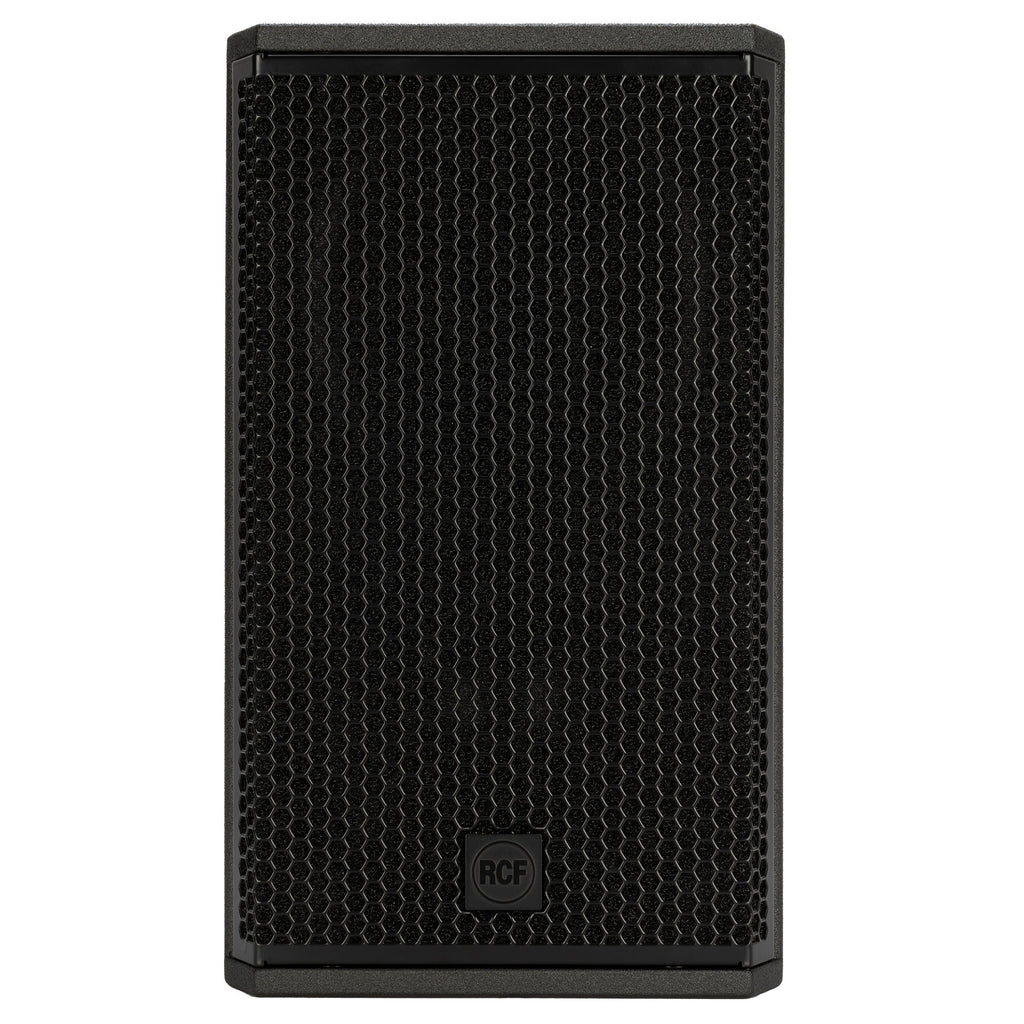

Grille |
| Steel with clothing |
Color |
| Black |
| Size / Weight |
| Height |
510 mm / 20.08 inches |
| Width |
300 mm / 11.81 inches |
| Depth |
Weight |
| 14 kg / 30.86 lbs |
| Shipping information |
| Package Height |
615 mm / 24.21 inches |
| Package Width |
355 mm / 13.98 inches |
| Package Depth |
Package Weight |
| 15.5 kg / 34.17 lbs |
