Description

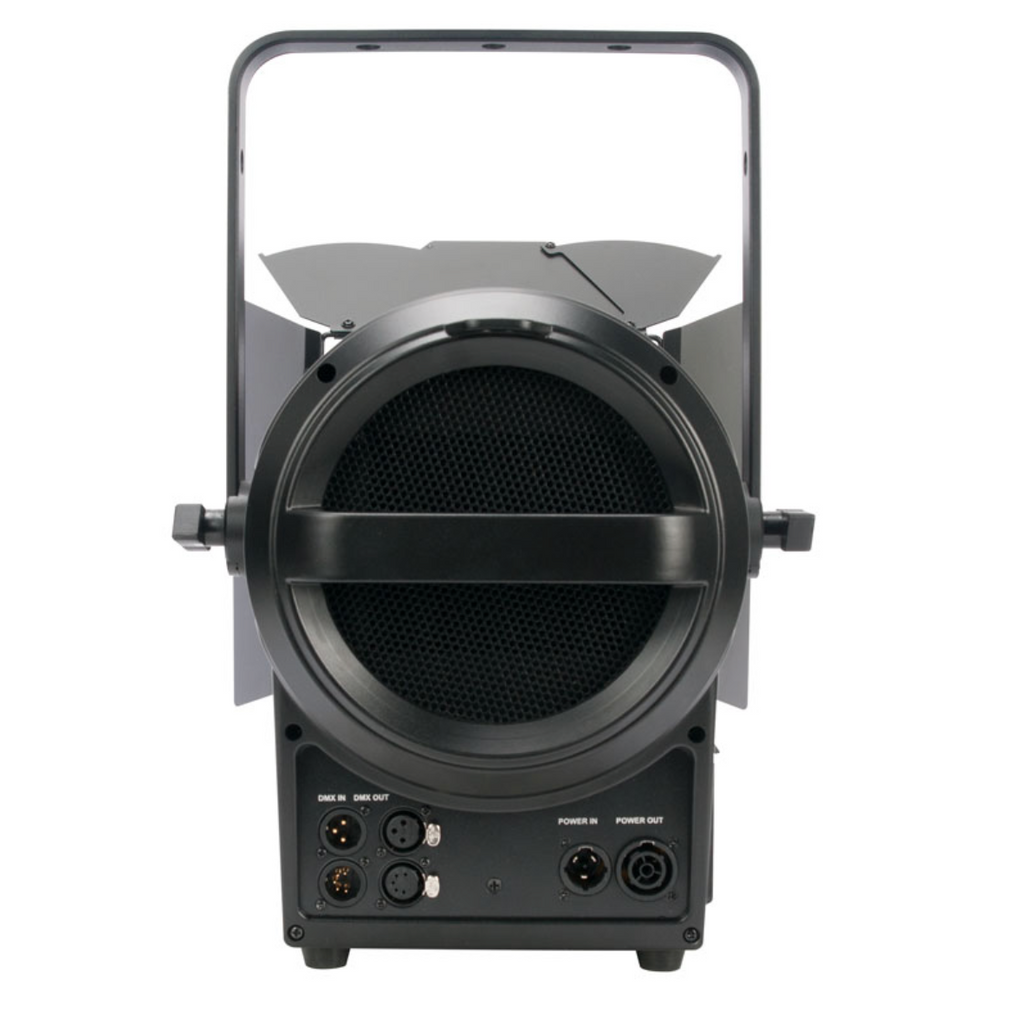

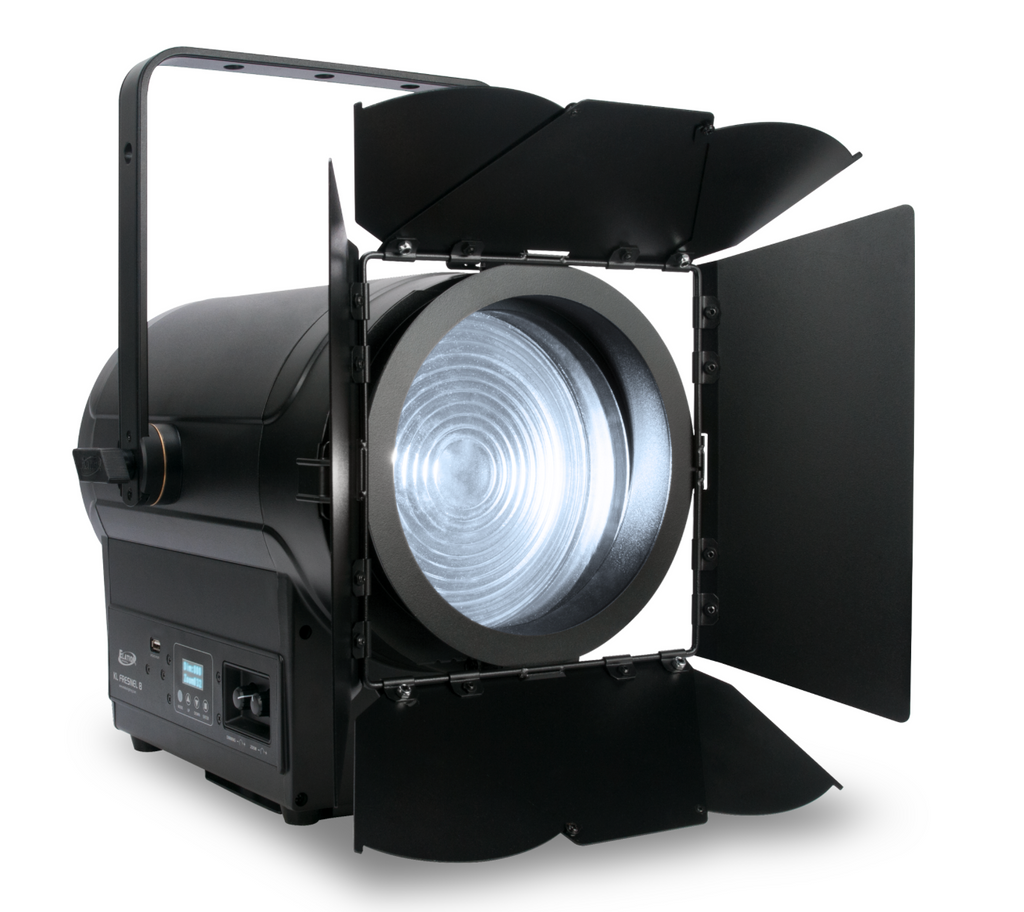

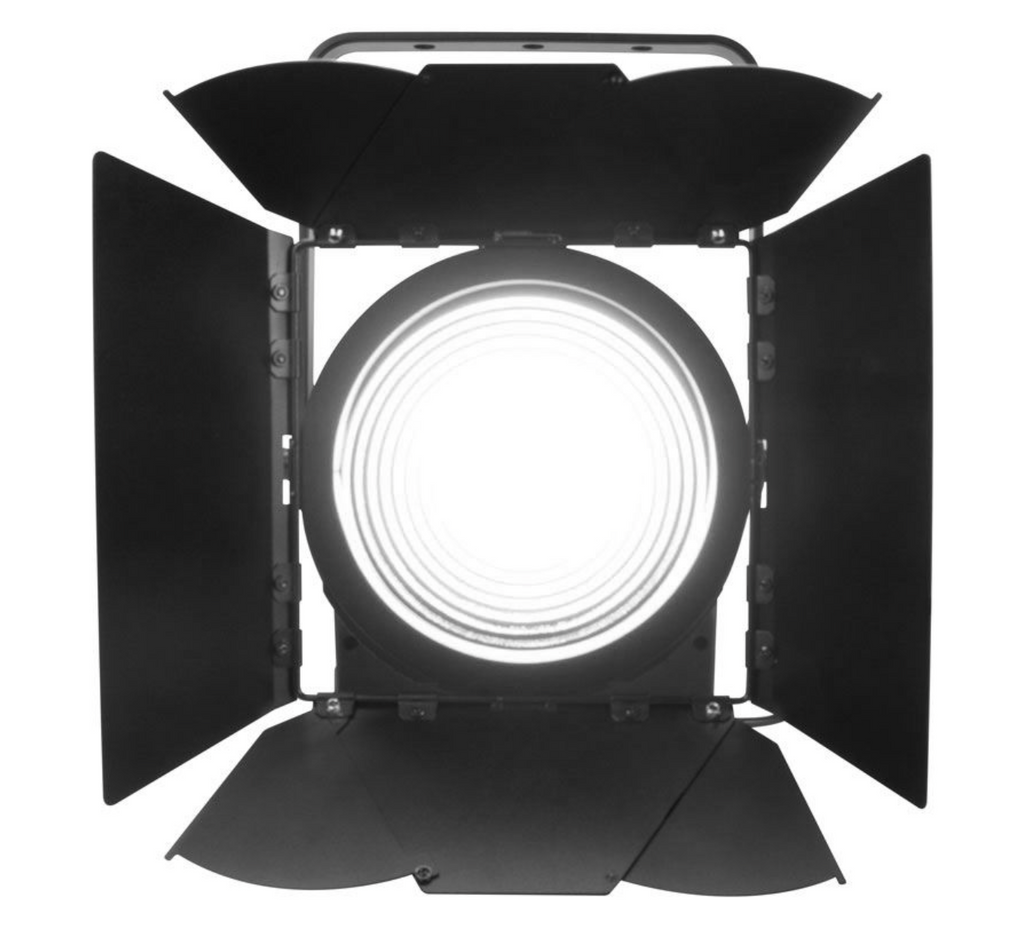

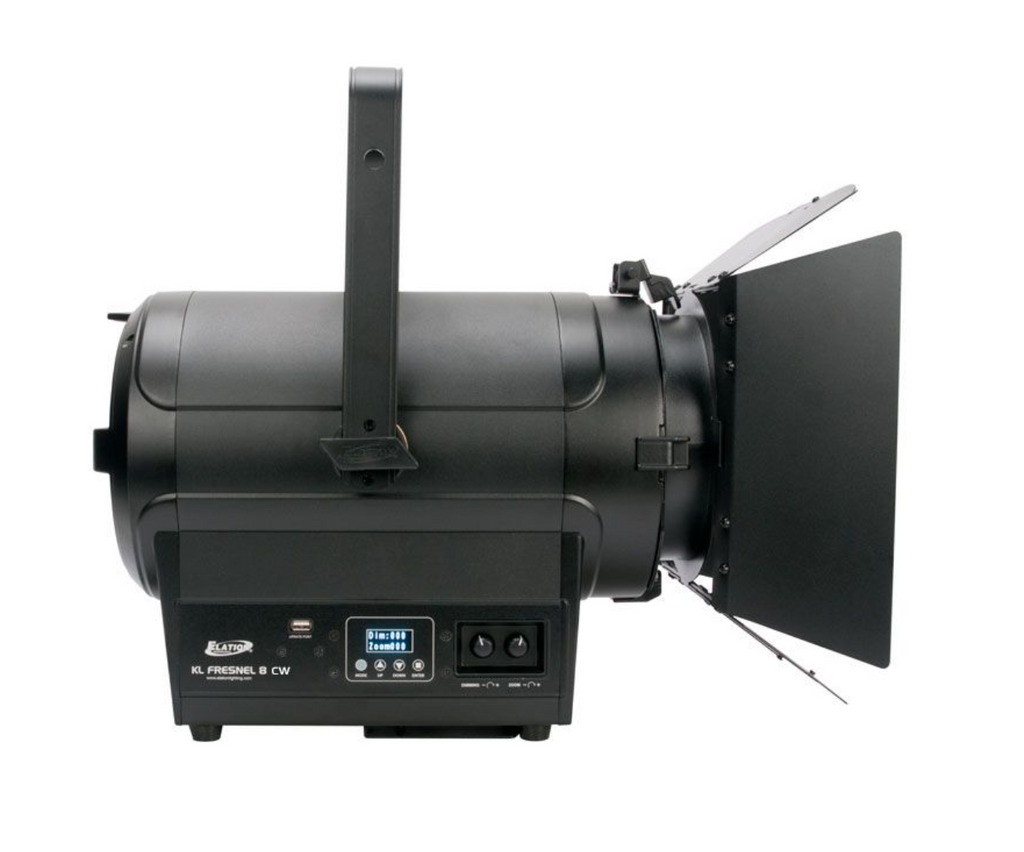

KL FRESNEL 8 CW™ is a 350W 5,600K >97CRI Cool White LED Fresnel, producing over 14,000 total lumen output. Features include manual and DMX control, 11° to 56° wide motorized zoom, manual and DMX controlled dimmer, shutter, and zoom, dimmer and zoom rotary dials, smooth 16-bit selectable dimming modes and curves, LED refresh rate frequency adjustment for flicker free operation for TV and FILM, removable barn doors (included), RDM (remote device management) protocol support, 3/5pin DMX and IP65 Locking Power Cable in/out connections, 4 button control panel, LCD menu display, multiple unit power linking, a universal auto switching power supply (100-240v), gel frame and rotating bar doors (included).
Features:
Specifications:
SOURCE
350W Cool White LED Engine, 5,600K, 97CRI
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
up to 14,000 Total Lumen Output
16,762 LUX 1,557 FC @ 9.8’ (3m) (Min. Zoom)
1462 LUX 136 FC @ 9.8’ (3m) (Max. Zoom)
Zoom Range 11° - 56°
Beam Angle 11° - 56.2°
Field Angle 17.9° - 77°
EFFECTS
Motorized Zoom
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves
COLOR
5,600K Cool White LED
CONTROL / CONNECTIONS
Manual and DMX Controlled Dimmer, Shutter and Zoom
Dimmer and Zoom Rotary Dials
(5) DMX Channel Modes (2 / 3 / 3 / 6 / 7)
4 Button Control Panel LCD Menu Display
RDM (Remote Device Management)
3/5pin DMX and IP65 Locking Power In/Out Connection
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 17.5” (445mm)
Width: 12.89” (327.5mm)
Vertical Height: 17.95” (456mm)
Weight: 28.0 lbs. (12.7kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
430W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
Power Linking: 3Pcs @ 110V / 6Pcs @ 240V
INCLUDED ITEMS
Gel Frame and Rotating Barn Doors
IP65 Locking Power Cable
APPROVALS / RATINGS
CE | cETLus | IP20
Specifications and documentation subject to change without notice.
Features:
- 5,600K Cool White LED Fresnel Luminaire
- 350W Single Source LED
- Manual and DMX Controlled Dimming
- Quick Single Press Light Output for Focusing
- 11° - 56° Motorized Zoom
- Including 8-Leaf Barn Doors and Gel Frame Holder
- Adjustable Refresh Frequency
- Silent Operation
- Variable Dimming Curves, Dim Modes and Dimming Delays
- Flicker Free Operation for Broadcast TV and Film
- RDM (Remote Device Management)
- Gel Frame and Rotating Barn Doors (included)
- 3 Clamp Position Adjustable Mounting Yoke
Specifications:
SOURCE
350W Cool White LED Engine, 5,600K, 97CRI
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
up to 14,000 Total Lumen Output
16,762 LUX 1,557 FC @ 9.8’ (3m) (Min. Zoom)
1462 LUX 136 FC @ 9.8’ (3m) (Max. Zoom)
Zoom Range 11° - 56°
Beam Angle 11° - 56.2°
Field Angle 17.9° - 77°
EFFECTS
Motorized Zoom
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves
COLOR
5,600K Cool White LED
CONTROL / CONNECTIONS
Manual and DMX Controlled Dimmer, Shutter and Zoom
Dimmer and Zoom Rotary Dials
(5) DMX Channel Modes (2 / 3 / 3 / 6 / 7)
4 Button Control Panel LCD Menu Display
RDM (Remote Device Management)
3/5pin DMX and IP65 Locking Power In/Out Connection
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 17.5” (445mm)
Width: 12.89” (327.5mm)
Vertical Height: 17.95” (456mm)
Weight: 28.0 lbs. (12.7kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
430W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
Power Linking: 3Pcs @ 110V / 6Pcs @ 240V
INCLUDED ITEMS
Gel Frame and Rotating Barn Doors
IP65 Locking Power Cable
APPROVALS / RATINGS
CE | cETLus | IP20
Specifications and documentation subject to change without notice.
