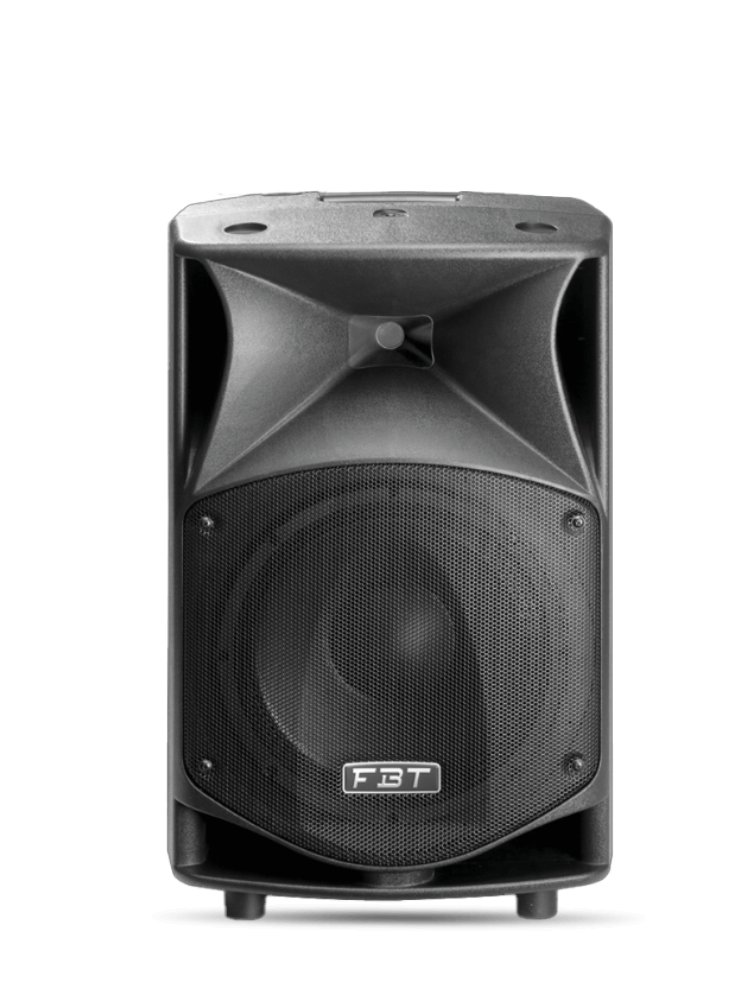

The JMAXX 114A is the most powerful model in the jmaxx range, offering extended low-frequency response and high SPL output. It features a 14″ custom woofer with a 2.5″ voice coil and a 1″ B&C compression driver with a 1.4″ voice coil, delivering full-range sound with clarity and authority.Equipped with a 700W + 200W Class D bi-amplified module and onboard DSP with multiple EQ presets, it adapts easily to FOH, monitoring, or distributed sound applications. The constant directivity horn (90° x 60°) and robust polypropylene enclosure offer flexible installation options and excellent durability, complete with M10 rigging points, ergonomic handles, and a 35mm pole mount.
Technical Specifications
| Code |
42632 |
| Configuration |
2 way |
| Built-in amplifier LF/HF |
700 / 200W RMS |
| Frequency response |
45Hz - 20KHz -6dB |
| Low frequency woofer |
14'' - 2.5'' coil |
| High Frequency driver |
1'' - 1.4'' coil |
| Maximum SPL cont/peak |
126 / 132dB |
| Dispersion |
90° x 60° H x V |
| Input impedance |
22 kOhm |
| Input connector |
XLR - Jack |
| Power cord |
5 m / 16.4 ft |
| Net Dimension (WxHxD) |
402 x 644 x 345 mm / 15.8 x 25.4 x 13.6 inch |
| Net Weight |
16.6 Kg / 36.5 lLb |
| Transport Dimension (WxHxD) |
500 x 760 x 445 mm / 19.7 x 29.9 x 17.5 inch |
| Transport Weight |
19.3 Kg / 42.5 lb |
