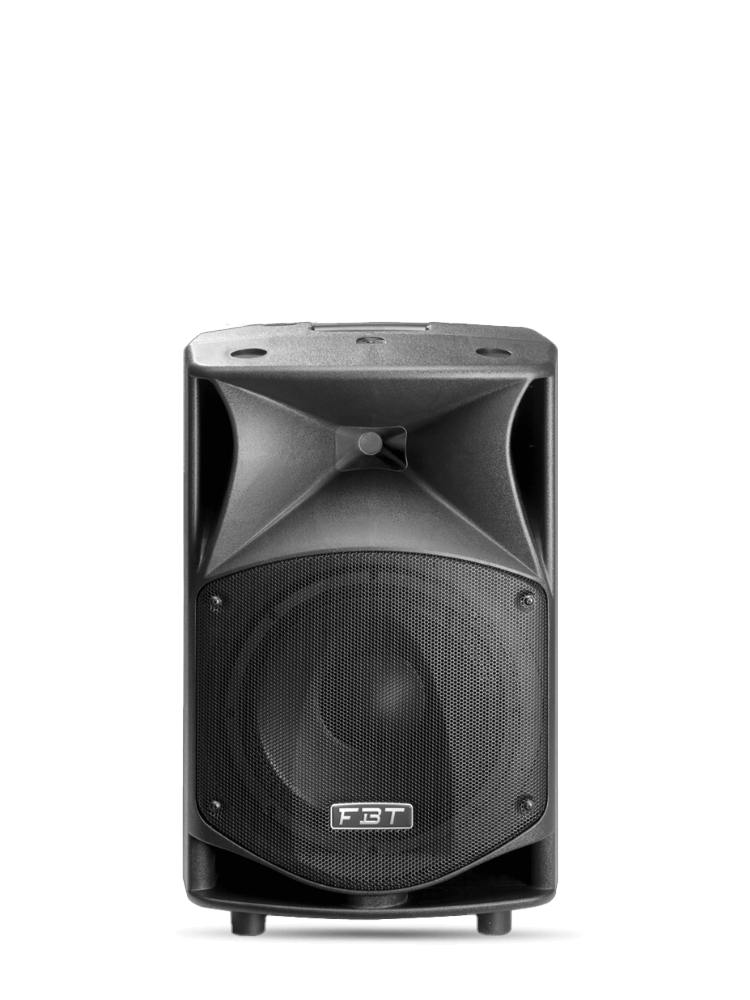

JMAXX 110A is an active 2-way speaker designed for versatility in portable sound reinforcement and fixed installations. Equipped with a 10″ custom woofer and a 1″ B&C compression driver with a 1.4″ voice coil, it delivers articulate midrange, controlled bass, and smooth high-frequency response. The integrated Class D amplifier provides 700W RMS for low frequencies and 200W RMS for the highs, with 4 EQ presets for different use scenarios. The constant directivity horn (90° x 60°) allows flexible mounting and precise coverage. The polypropylene cabinet ensures durability, light weight, and acoustic consistency, with integrated handles and M10 rigging points, and a 35mm pole mount.
Technical Specifications
| Code |
42604 |
| Configuration |
2 way |
| Built-in amplifier LF/HF |
700 / 200W RMS |
| Frequency response |
58Hz - 20kHz -6dB |
| Low frequency woofer |
10" - 2" coil |
| High Frequency driver |
1" - 1" coil |
| Maximum SPL cont/peak |
123.5 / 129.5dB |
| Dispersion |
90° x 60° H x V |
| Input impedance |
22 kOhm |
| Input connector |
XLR - Jack |
| Power cord |
5 m / 16,4 ft |
| Net Dimension (WxHxD) |
320 x 550 x 275 mm / 12.6 x 21.6 x 10.8 inch |
| Net Weight |
11.5 Kg / 25.3 lb |
| Transport Dimension (WxHxD) |
408 x 650 x 360 mm / 16 x 25.5 x 14.2 inch |
| Transport Weight |
13.5 Kg / 29.7 lb |
