Description

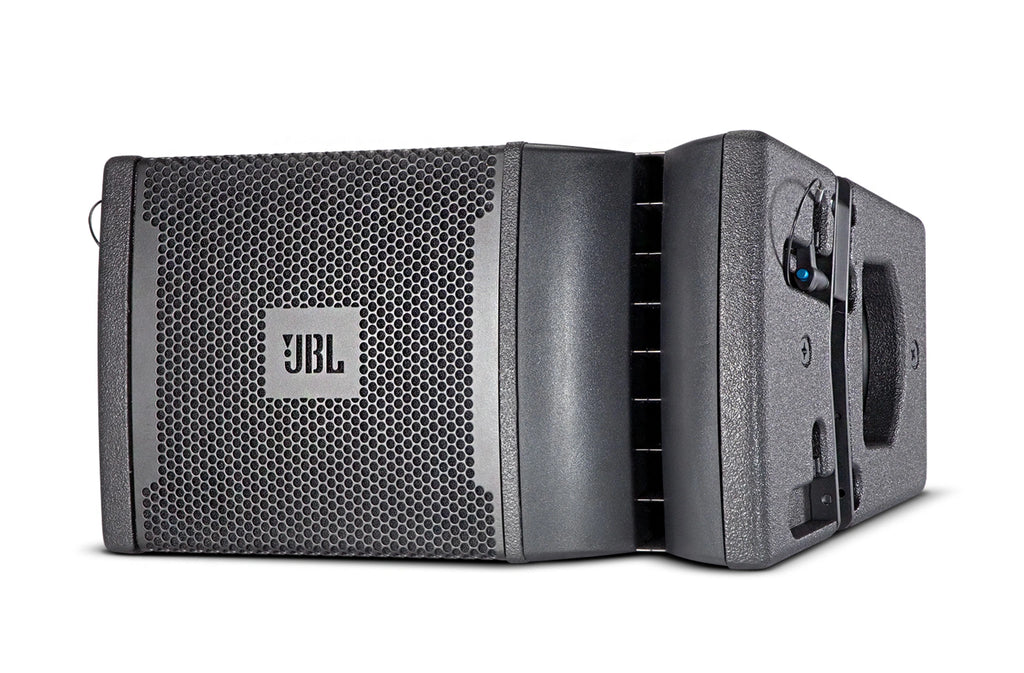

8 in. Two-Way Line Array Loudspeaker System The VRX928LA is a lightweight (28 lb / 13 kg) compact 8" two-way linearray speaker system designed for use in arrays of up to six units.
Features
- Constant Curvature Array - The waveguide mounts two compression drivers on a continuous arc enabling them to work together acoustically as if they were a single driver.
- Amplitude Shading- Convenient series of switches on each enclosures that controls the output of each high frequency section in the array.
- Suspension and Rigging.
- Dual Angle Pole Socket - JBL's dual angle pole sockets allow great flexibility in aiming the enclosure (not on - WH version)
- Differential Drive® Woofer.
Specifications
- Model: VRX928LA-WH
- Power Rating: 400 W / 800 W / 1600W
- Frequency Range (-10dB): 70 Hz - 20 kHz
- Dimensions (H x W x D): 230mm x 420mm x 270mm (9.0in x 16.5in x 10.5in)
- Coverage Pattern: 100 x 15 nominal
- Frequency Response (±3 dB): 85 Hz - 19 Hz

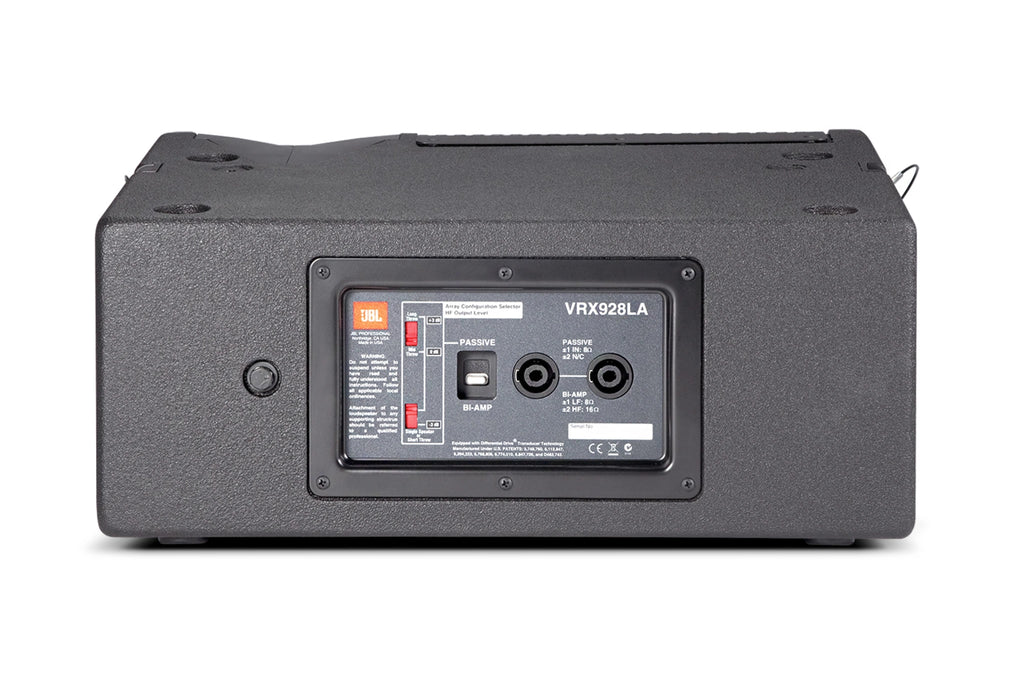

- Crossover Modes: Bi-amp / passive,
- Crossover Frequency: 2.0 kHz
- Net Weight (each): 12.7 kg (28 lb)
- Inputs: Neutrik® Speakon NL-4 (x2)
- Outputs: 1 x XLR
- Enclosure: Duraflex coated plywood
- System Type: Constant Curvature 8" Two-Way Line Array System
- Maximum SPL (1m): 122 dB SPL peak (passive mode) LF: 122 dB (bi-amp mode) HF: 128 dB (bi-amp mode)
- Nominal Impedance: Passive = 8 ohm Bi-amp LF = 8 ohm Bi-amp HF = 16 ohm
- LF Driver: 1 x 200 mm (8 in) Differential Drive® woofer
- HF Driver: 2 x 25 mm (1.0 in) neodymium compression driver
- Suspension / Mounting: Dual 36 mm pole socket included. Suspension requires optional VRX-SMAF line array frame kit or M10 eyebolts.
- Weight: 30 lb
- Dimensions (L x W x H): 14 x 12 x 18 in
- UPC: 50036903660
- Country of Origin: MX
