Description

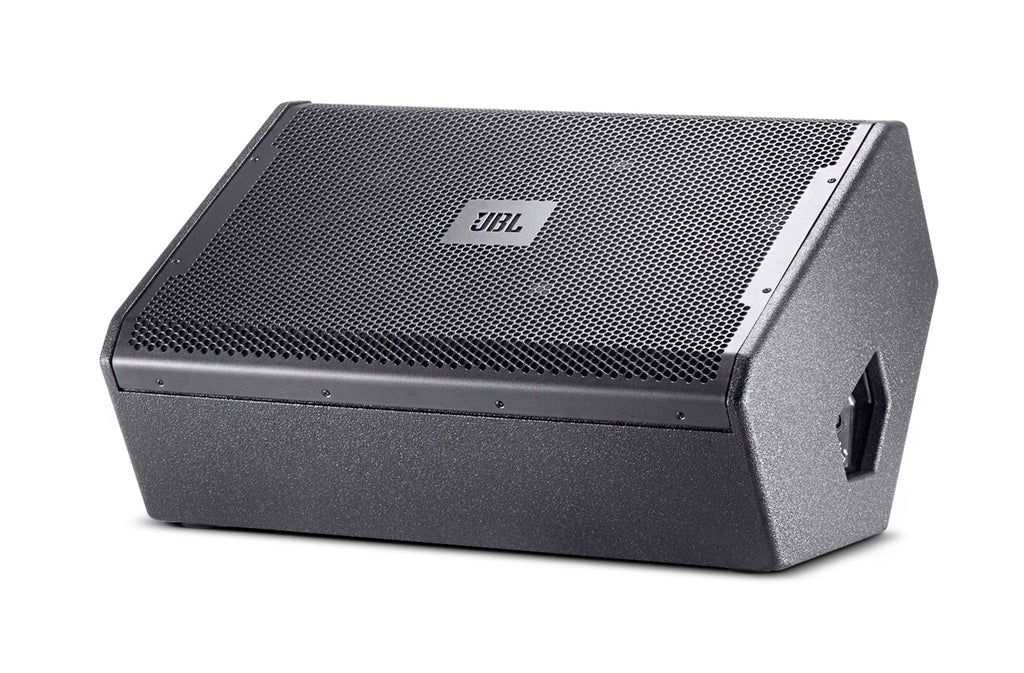

15 in. Two-Way Stage Monitor
Features
- Compact and low-profile for minimal obstruction of audience sightlines
- 50° x 90° nominal coverage
- Bi-amplified or full-range passive operation
- Differential Drive® woofer with neodymium magnet for high power capacity and very light weight
- 4" (voice coil) diameter compression driver with neodymium magnet
Specifications
- Model: VRX915M
- Power Rating: 800 W / 1600 W / 3200W
- Frequency Range (-10dB): 60 Hz - 20 kHz
- Dimensions (H x W x D): 629 mm x 432 mm x 324 mm (375 mm stage height) 24.75 in x 17 in x 12.75 in (14.75" stage height)
- Coverage Pattern (-6 dB): 50° x 90° nominal
- Crossover Modes: Passive / Bi-amp
- Crossover Frequency: 1.1 kHz
- Maximum SPL (1m): 127 dB SPL continuous (133 dB SPL peak)
- Sensitivity: 98 dB SPL
- LF Driver: 1 x JBL 2265H 380 mm (15 in) Differential Drive® woofer 8 Ohms
- HF Driver: 1 x JBL 2453H-SL, 38 mm (1.5 in) exit compression driver, 100 mm (4 in) voice coil and neodymium magnet
- Nominal Impedance: 8 ohms
- Active Tunings: Tunings available at www.jblpro.com
- Enclosure: Symmetrical stage monitor, 15/18 mm, plywood
- Finish: Black DuraFlex™ finish
- Grille: Powder coated, black, 16 gauge perforated steel with acoustically transparent black screen backing
- Inputs: Neutrik® Speakon® NL-4 (x2), one on each end
- Net Weight (each): 21 kg (46.0 lb)
- Outputs: 1 x XLR
- Weight: 51 lb
- Dimensions (L x W x H): 21 x 17 x 27 in
- UPC: 50036903233
- Country of Origin: MX
