JBL SRX922, Powered Point-source Speaker

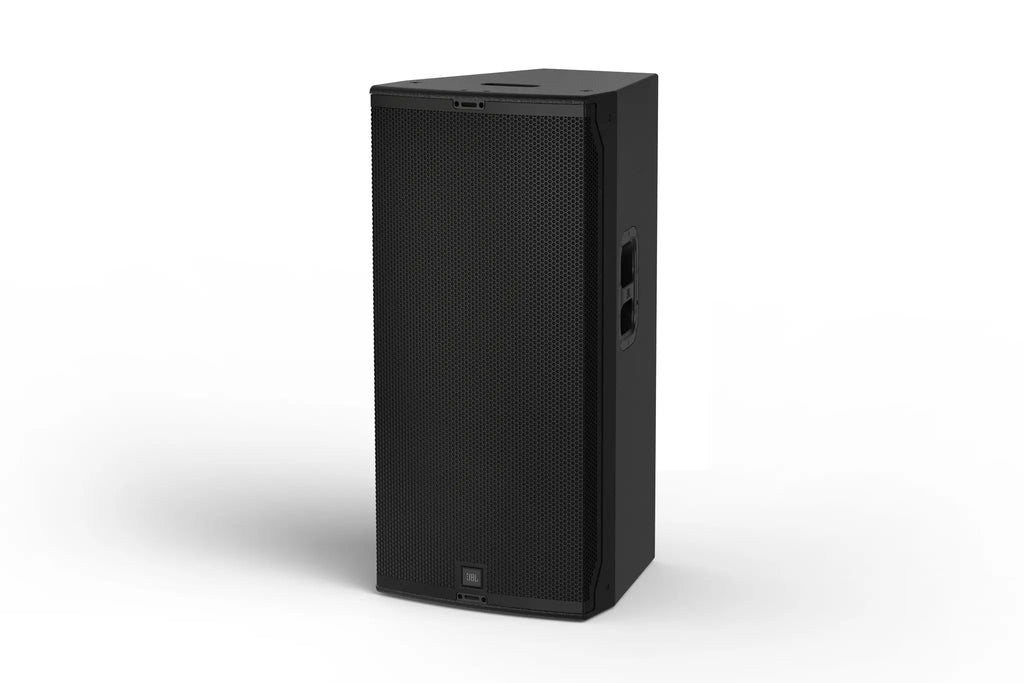

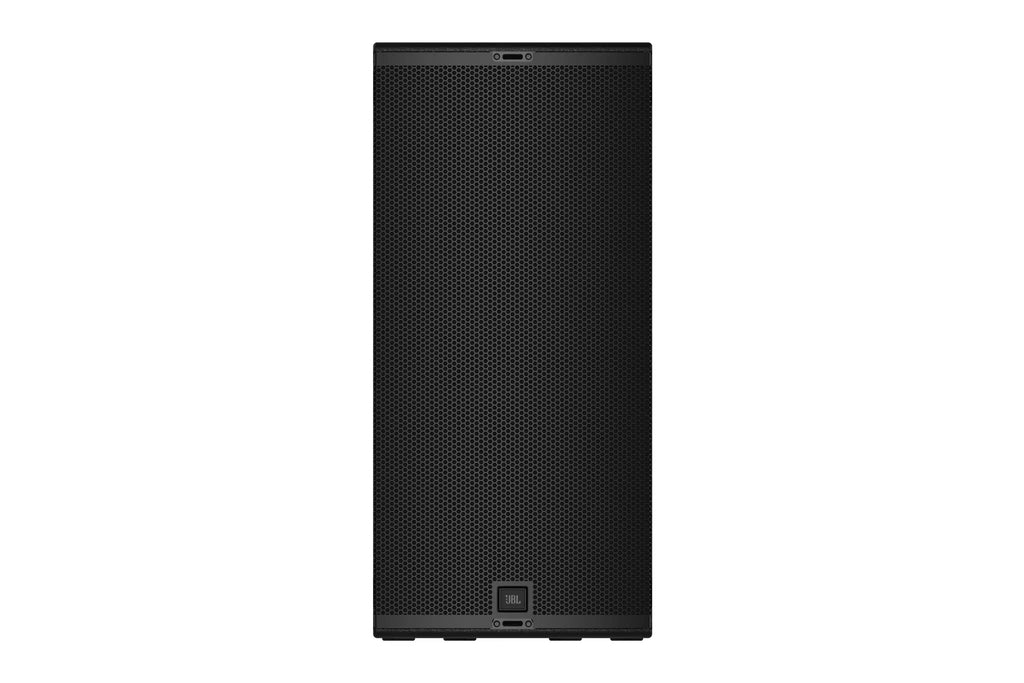

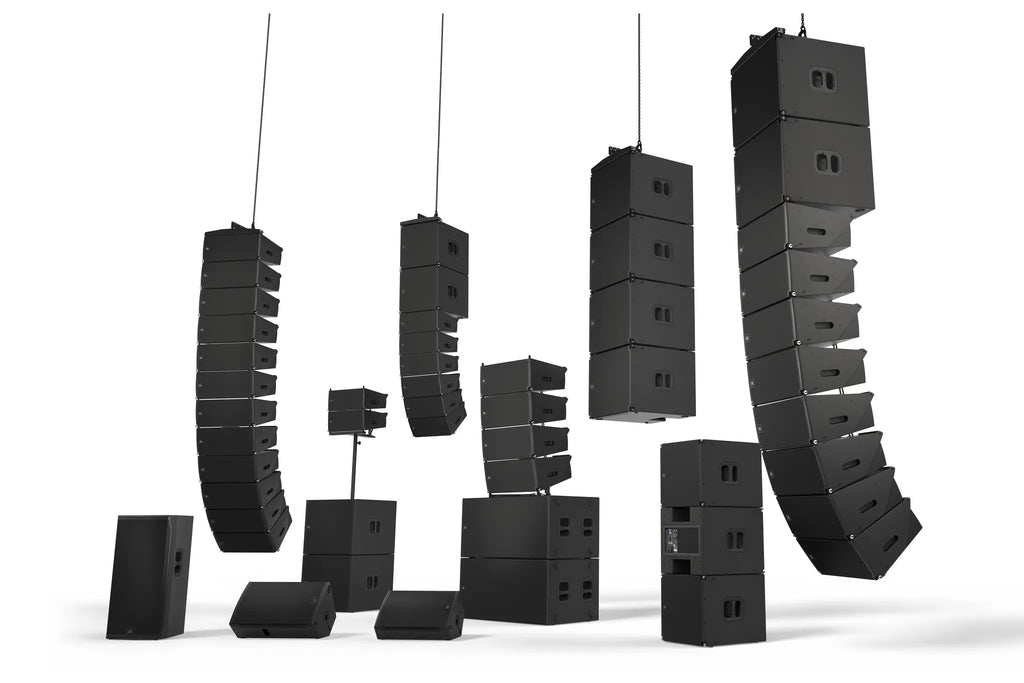

The SRX922 is a compact, acoustically three-way, dual 12-inch powered point-source loudspeaker engineered for applications requiring high output and precise directivity control from a trapezoidal full-range enclosure. It is an ideal choice for high-output mains systems, side-fills, or as a high-performance point-source element within larger SRX900 deployments. The system delivers an exceptional output-to-weight ratio thanks to its innovative acoustic design, with dual LF woofers providing higher output than traditional 15-inch three-way systems in a significantly more compact enclosure. Multiple M10 QuickLink™ suspension points support fast, secure integration with a variety of dedicated accessories for touring and installed applications. Integrated DSP and amplification provide a true plug-and-play experience, ensuring consistent, optimized performance anywhere in the world. A full-featured software suite provides comprehensive control and monitoring across Windows, macOS, and iPadOS platforms.

Features

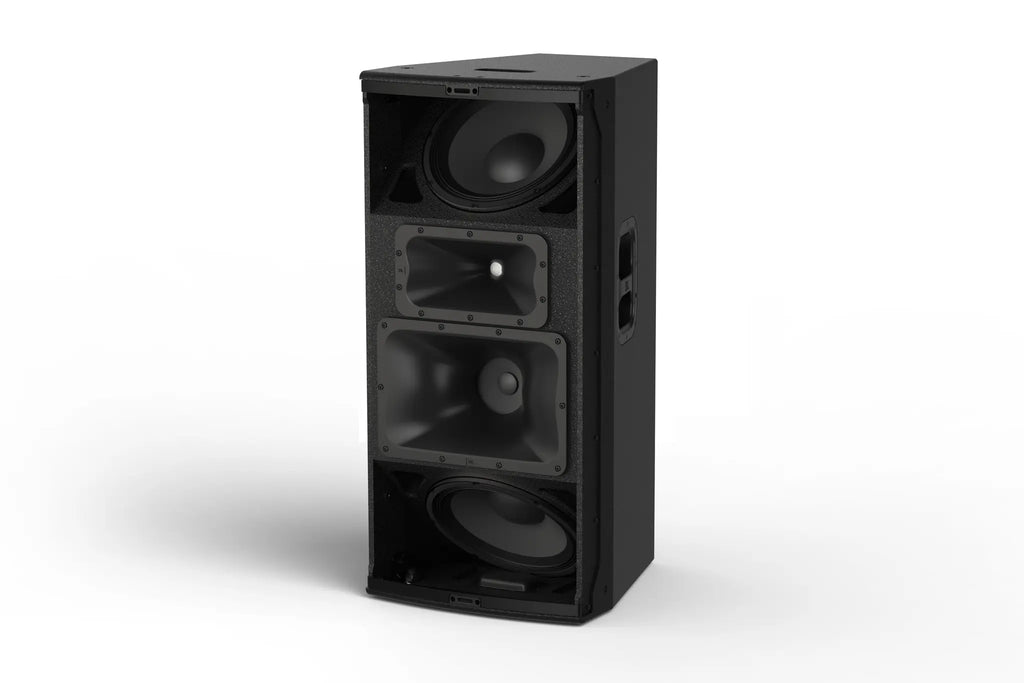

• Includes dual 12-inch LF woofers, a 6.5-inch horn-loaded MF driver, and a 1.5-inch annular-diaphragm compression driver
• Symmetrically-arranged dual LF section provides double the low-frequency headroom of traditional single-woofer designs
• Dipole configuration delivers enhanced vertical directivity control
• Horn-loaded MF section enables LF drivers to operate in their most efficient and controlled bandwidth
• Dual 90° × 60° Progressive Transition™ waveguides provide smooth, predictable coverage

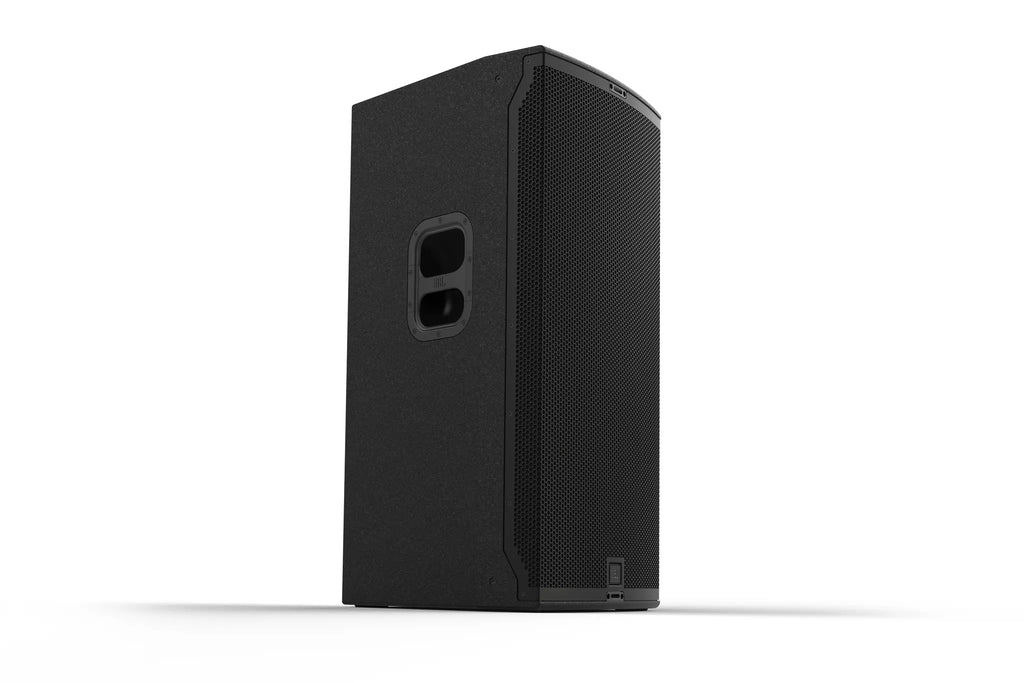

• Four large, flared ports extend low-frequency response down to 50 Hz
• 80 Hz high-pass preset available for applications using SRX900 subwoofers
• Voicing and phase response carefully optimized to match SRX900 line-source products
• Integrated amplification delivers plug-and-play operation

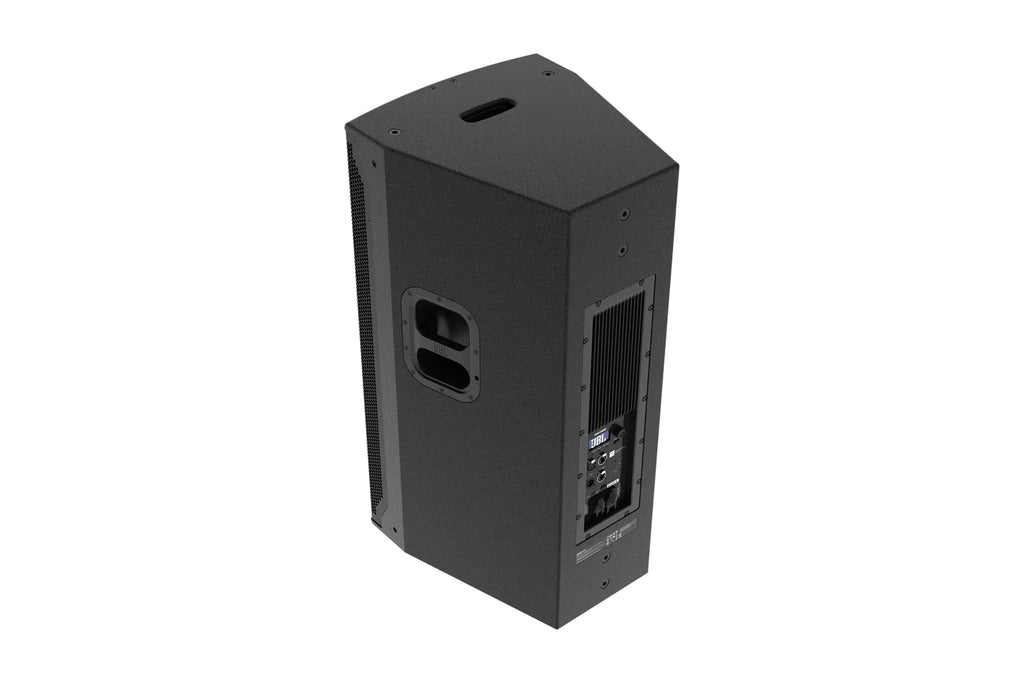

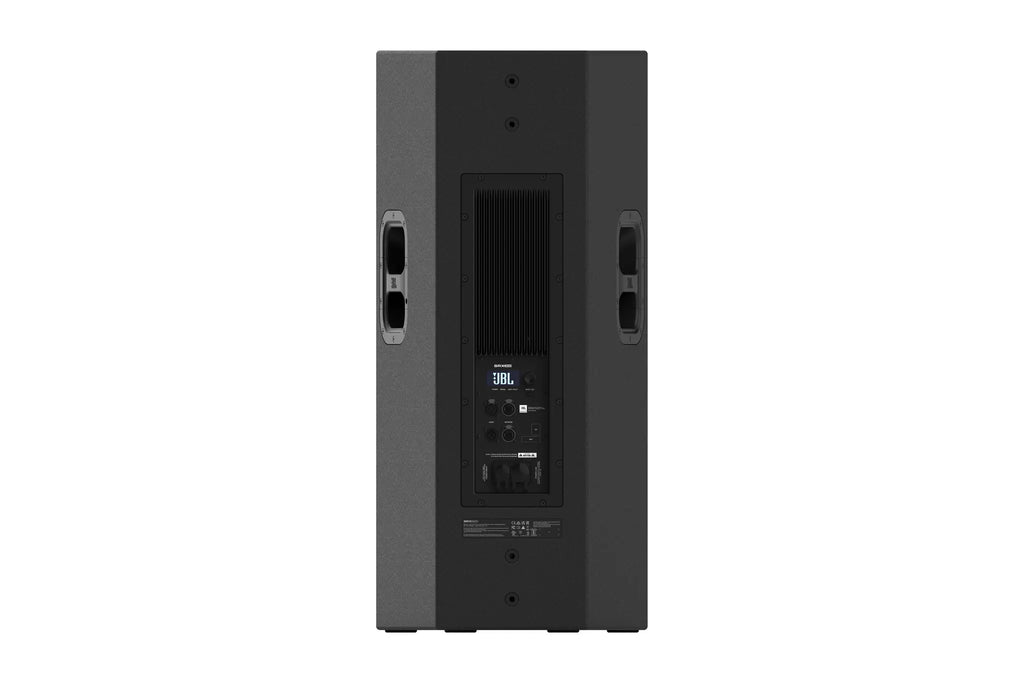

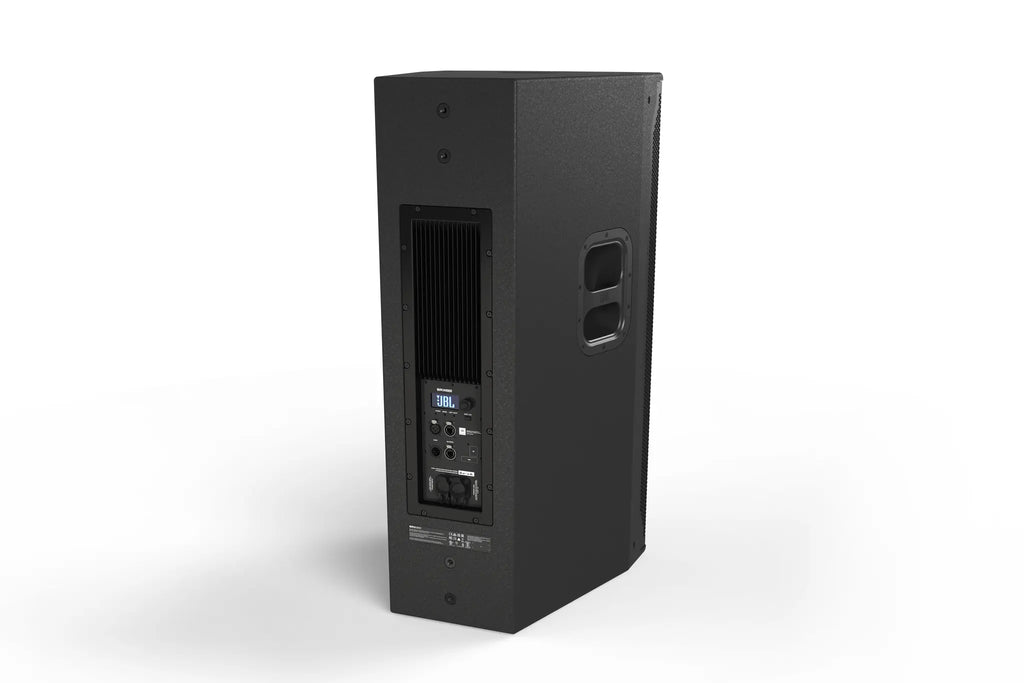

• Rear LCD enables fast configuration
• DSP includes 24 user-adjustable filters, 2,000 ms delay, and essential loudspeaker management tools

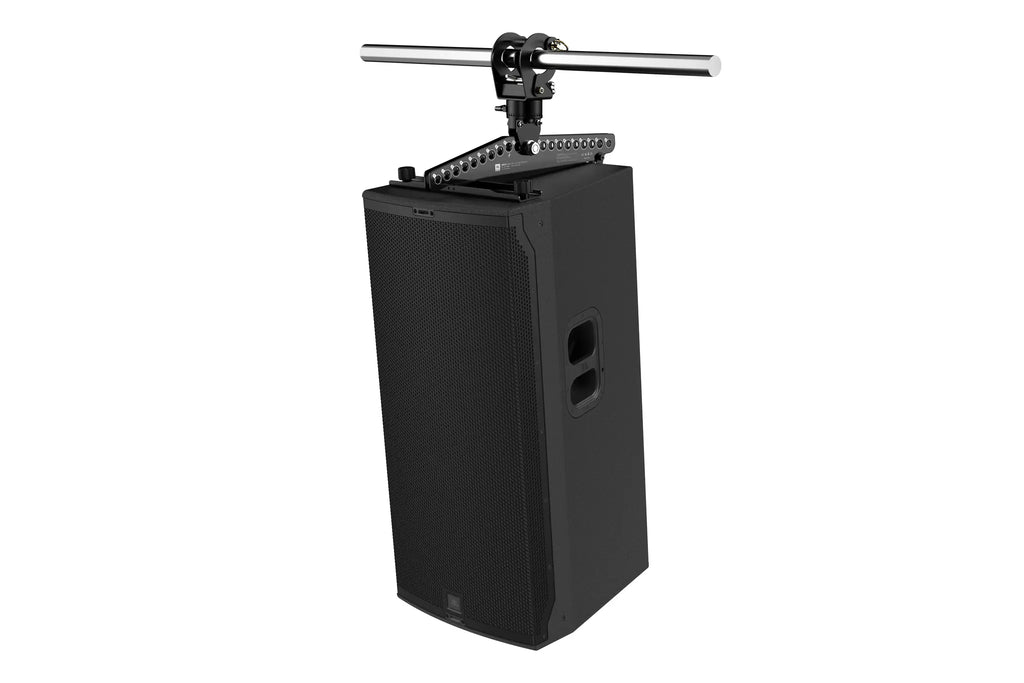

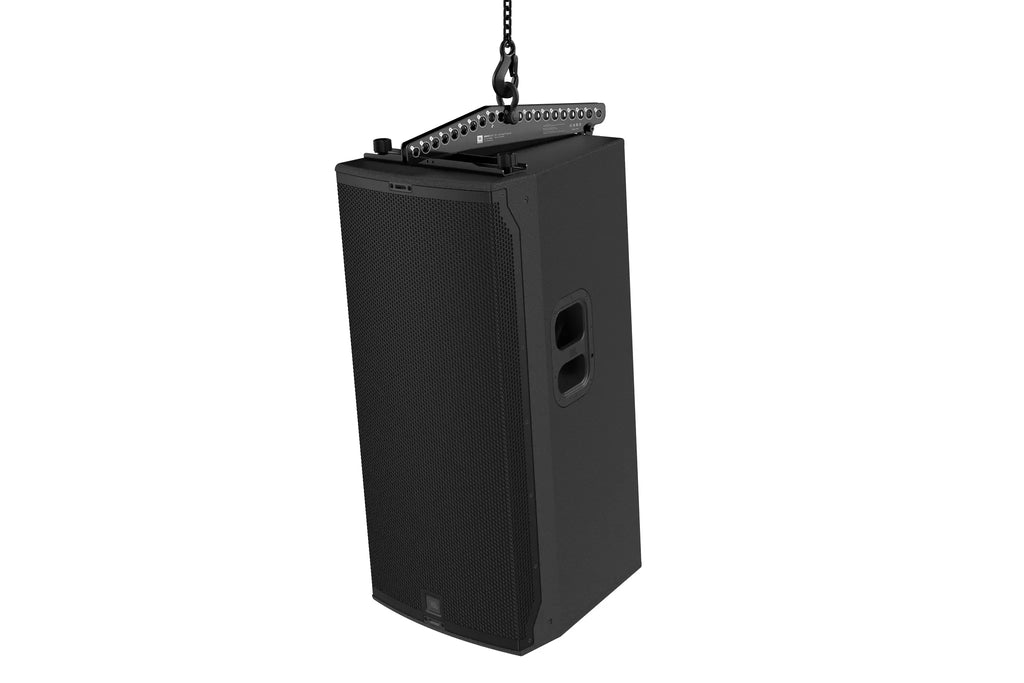

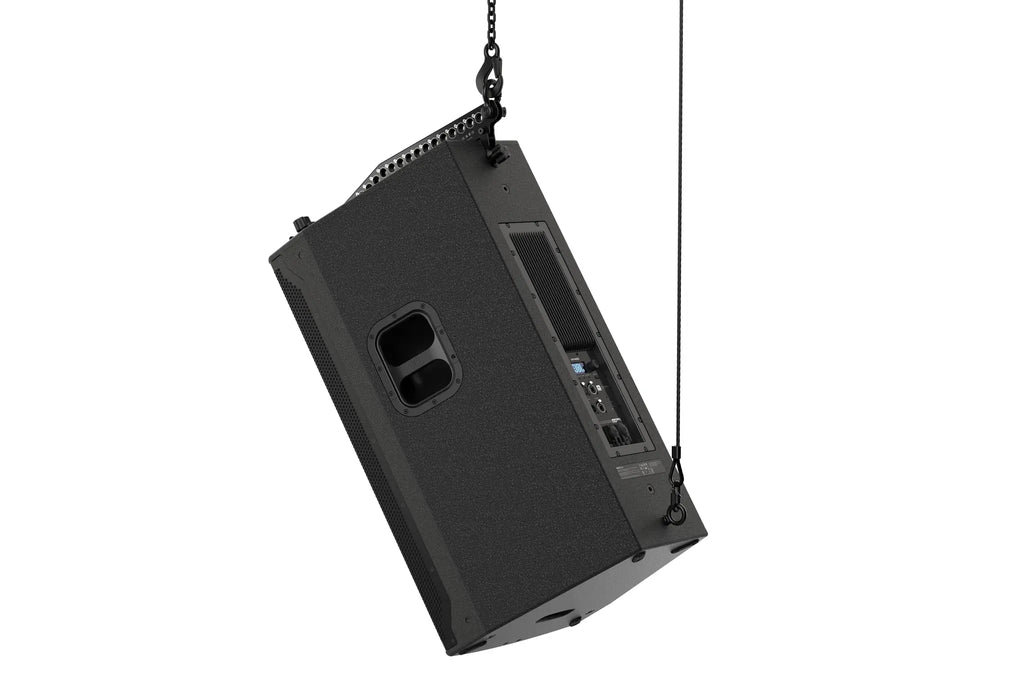

• Eight M10 Quick-Link™ attachment points are provided for suspension using standard M10 eye bolts
• Constructed from outdoor-grade Baltic birch plywood for excellent durability

Specifications

• Model: SRX922
• Frequency Range (-10dB): 40 Hz-17.5 kHz
• Coverage Pattern: 90° x 60°
• Maximum SPL: 138 dB
• System Type: Point-source, acoustically three-way, bi-amplified, powered
• Amplifier Design: Class-D
• Continuous Power Rating: 1100 Watts | LF: 550 Watts | MHF: 550 Watts
• LF Driver: (2) JBL 2273G, 12 in diameter, dual 3.0 in diameter voice coil, ferrite Differential Drive®
• MF Driver: (1) JBL 196H-1, 6.0 in diameter, 1.5 in diameter voice coil, ferrite
• HF Driver: (1) JBL 2408H-1, 1 in exit neodymium compression driver with 1.5 in voice coil
• Enclosure: Exterior grade birch plywood, DuraFlexTM finish, two integral handholds, two integral recessed handles
• Suspension: (8) JBL QuickLink M10 points
• Dimensions (H x W x D): 944 mm x 440 mm x 505 mm (37.2 in x 17.3 in x 19.9 in)
• Net Weight (each): 45.5 Kg (100 lbs)
• Weight: 117 lb
• Dimensions (L x W x H): 19.9 x 17.3 x 37.2 in
• UPC: 691991039775
• Country of Origin: Mexico
