Description

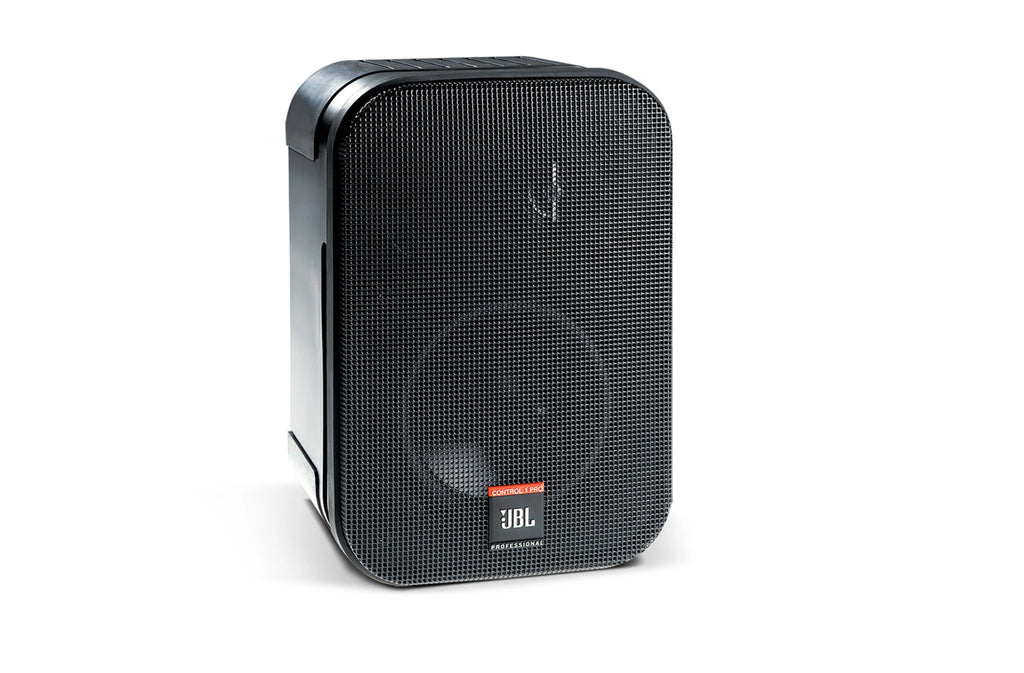

Compact Two-Way 100V/70V/8-Ohm Loudspeaker CSS-1S/T is a versatile, compact two-way loudspeaker designed for use on 100V or 70V distributed speaker lines, or in 8 ohm direct mode. The 135 mm (5.25 inch) low frequency loudspeaker and 19 mm (.75 inch) polycarbonate dome tweeter reproduce full-range sound quality for foreground or background music and are voiced for maximum speech clarity and intelligibility.
Features
- 10 Watt Multi-Tap Transformer for 100V or 70V Distributed Speaker Lines
- 8 Ohm Direct Setting
- Included Wall-Mounting Bracket
- Professional Drivers and Network
Specifications
- Model: CSS-1S/T
- Frequency Range (-10dB): 85 Hz - 18 kHz
- Frequency Response (±3 dB): 120 Hz - 16 kHz
- Power Capacity: 60 Watts
- Sensitivity: 86 dB SPL, 1W (2.83V) at 1m (3.3 ft)
- Maximum SPL (1m): 106 dB at 8 Ohm Direct setting; 96 dB at 10W setting
- Nominal Coverage: 120ºH x 120ºV
- Directivity Factor (Q): 6.2
- Directivity Index (DI): 7.9 dB
- Nominal Impedance: 8 ohms (in 8Ω DIRECT mode, selectable on back panel)
- Transformer Taps: 10 W, 5 W (& 2.5W @ 70V)
- Crossover Frequency: 4.3 kHz
- LF Driver: 135 mm (5.25 in) low frequency driver
- HF Driver: 19 mm (0.75 in) polycarbonate dome tweeter
- Input Connectors: Spring-loaded terminals
- Enclosure Material: Polypropylene Structural Foam
- Color: Black
- Dimensions: 229 mm x 159 mm x 143 mm(9.0 in x 6.3 in x 5.6 in)
- Net Weight (each): 2.0 kg (4.5 lb)
- Shipping Weight (pair): 4.8 kg (10.5 lb)
- Included Accessories: Wall-mounting bracket assembly
- Weight: 6.1 lb
- Dimensions (L x W x H): 28 x 15 x 15 in
- UPC: 50036904698
- Country of Origin: CN
