Description

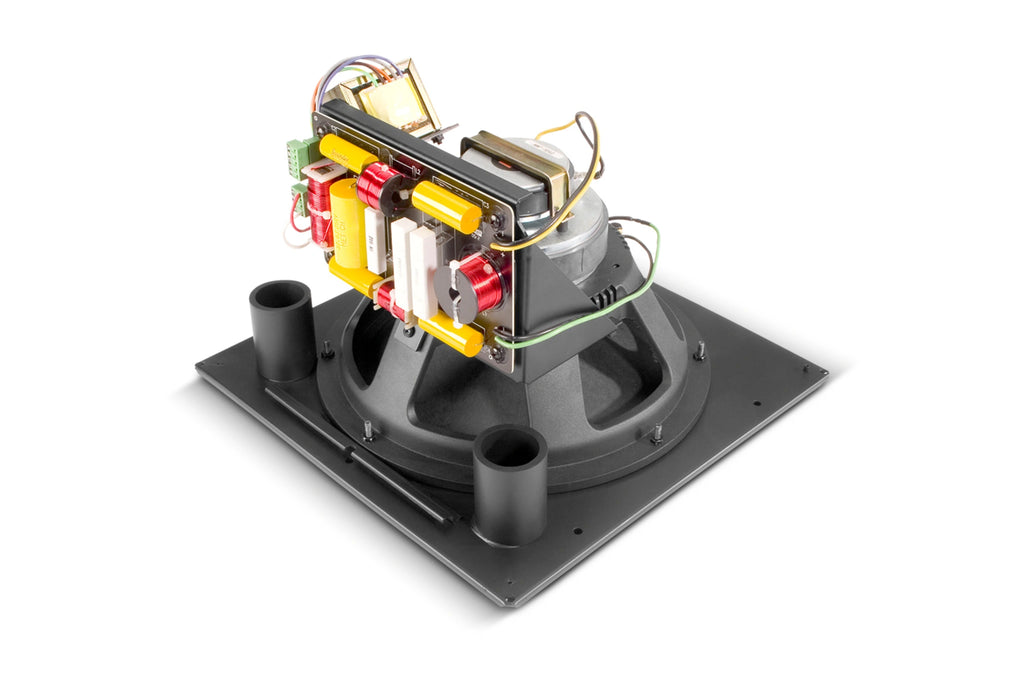

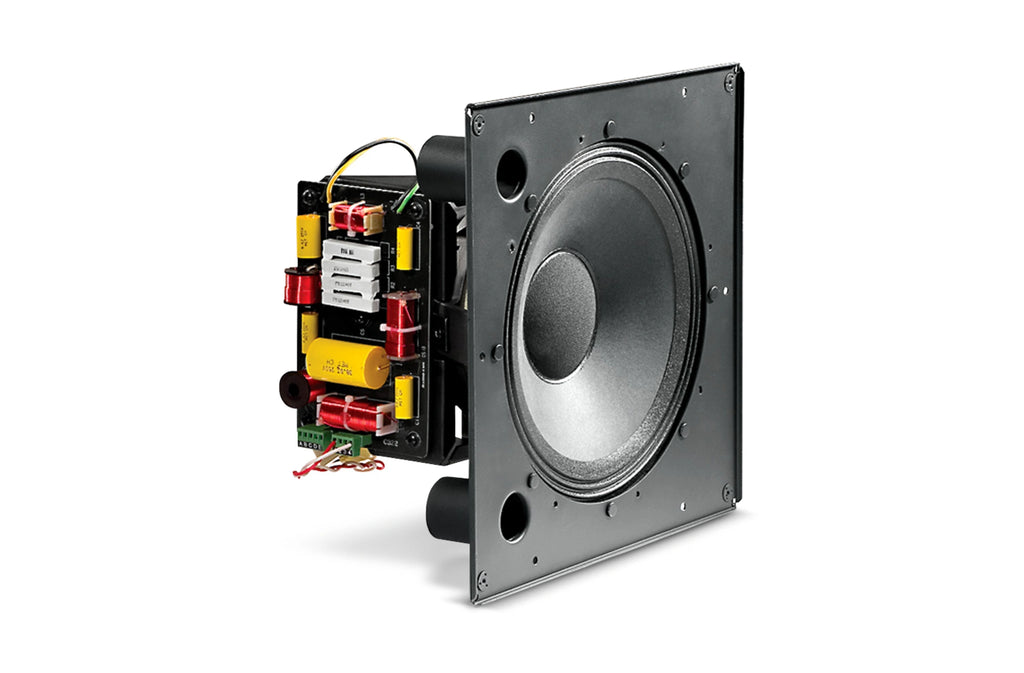

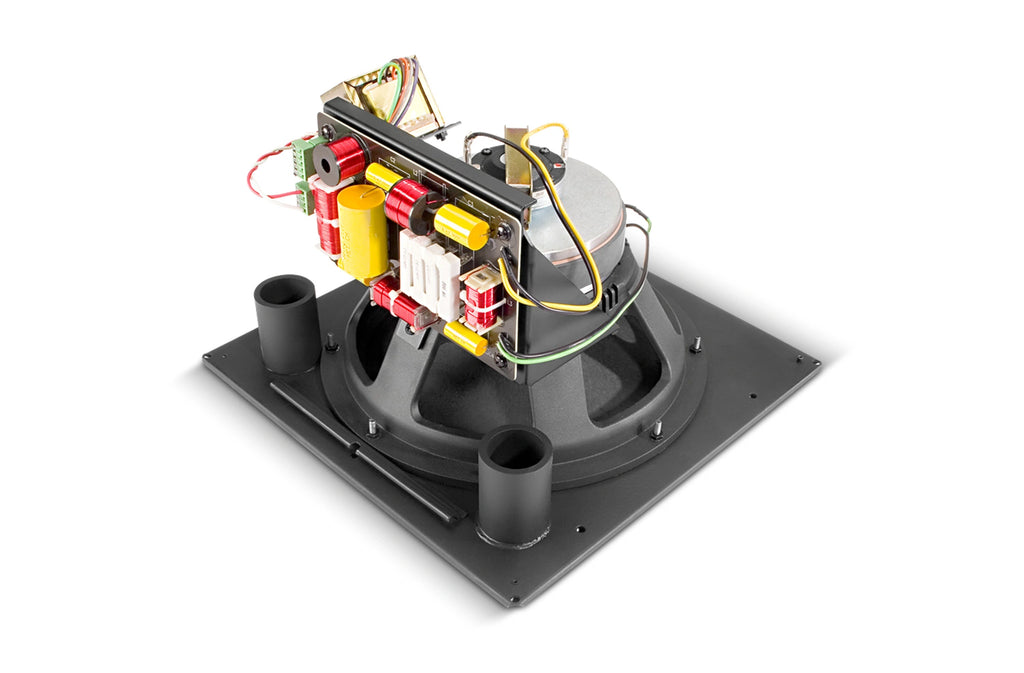

High-output 12 in. Coaxial Ceiling Loudspeaker The 322CT delivers exceptional next-generation performance in a coaxial point source design ceiling loudspeaker.
Features
- Consistent 90° broadband pattern control.
- Components • Kevlar-reinforced 300 mm (12 in) woofer with 75 mm (3 inch) voice-coil cone. • Medium-format compression driver.
- Extraordinary clarity for speech and vocals with extended frequency response for music.
- Power handling of 400 Watts with high sensitivity provides high SPL capability.
- Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
- Clean, contemporary grille and optional backbox available.
Specifications
- Model: CONTROL 322CT
- Frequency Range (-10dB): 32 Hz - 20 kHz
- Power Rating: see transformer taps
- Transformer Taps: 100W, 50W, 25W (& 12.5W @ 70V)
- Frequency Response (±3 dB): 48 Hz - 19 kHz
- Coverage Angle: 90° conical, constant directivity
- Directivity Factor (Q): 9 (1k - 16kHz)
- Directivity Index (DI): 9.5dB (1k - 16kHz)
- Sensitivity: 95 dB (1 kHz - 16 kHz)
- Maximum SPL (1m): 121 dB (top 70V/100V tap)
- Dimensions (H x W x D): 366 x 366 mm (14.4 x 14.4 in) square baffle x depth from back of baffle of 240 mm (9.5 in)
- Input Connectors: Screw locking barrier strip for bare wire
- Drivers: LF Driver: 300 mm (12 in) HF Driver: compression driver, 37 mm (1.5 inch) coil
- Color: White
- Safety Agency: Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70 when installed with UL listed backcan such as JBL MTC-300BB12. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
- Backcan: formed steel (wood-lined; accessory)
- Baffle/Rim: Metal, driver pre-mounted to baffle, ported.
- Ceiling Cutout Size: 378 x 378 mm (14.9 x 14.9 in) (for MTC-300BB12 backcan)
- Included Accessories: Ported baffle pre-attached, transformer on 322CT
- Plenum Usage: Yes, with accessory backcan
- Weight: 26.15 lb
- Dimensions (L x W x H): 18 x 18 x 13 in
- UPC: 50036905169
- Country of Origin: MX
