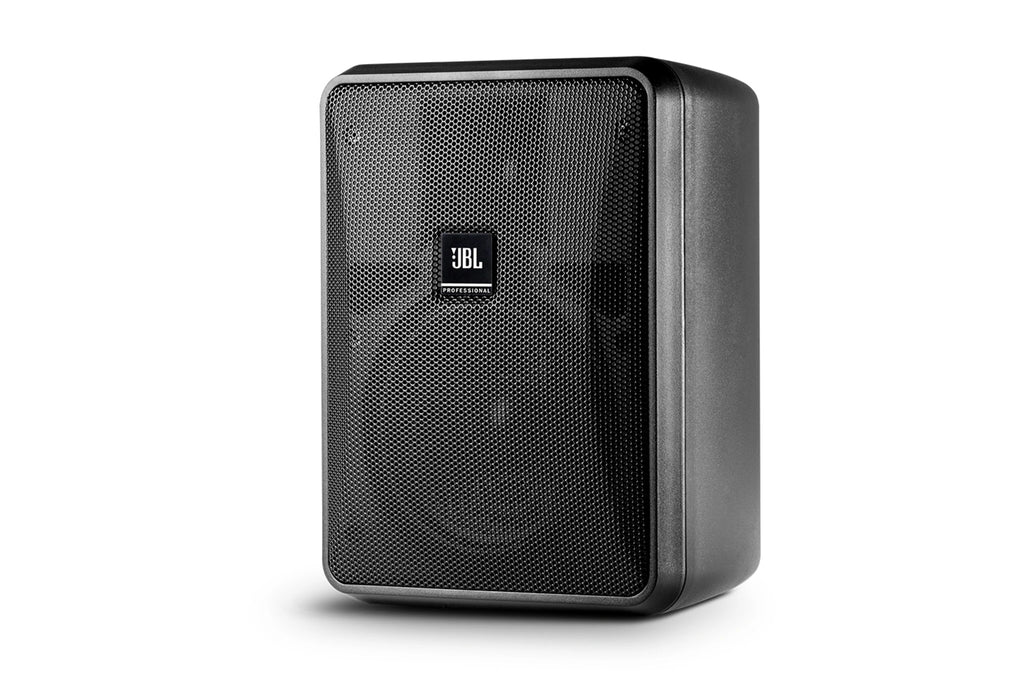

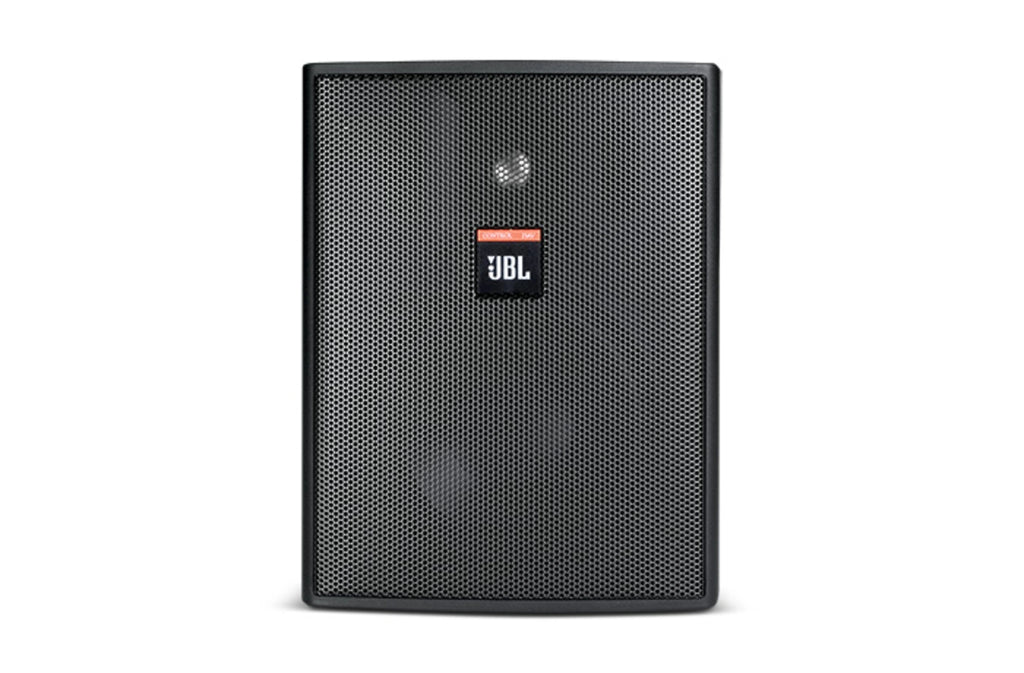

JBL CONTROL 25AV-WH, 5.25" 2-WAY Surface-Mt Speaker, Av, Wht

Compact Indoor/Outdoor Background/Foreground Loudspeaker The Control® 25AV utilizes a deep cabinet, high power components and complex network to achieve extremely smooth high fidelity performance from a compact 2-way loudspeaker.

Features

• Video shielded for use near video monitors.
• Extremely smooth frequency response.
• Stainless steel grill for harsh environments.
• 60 W transformer for 70 V or 100 V lines, with 8 ohms thru.
• SonicGuard™ overload protection.
• 130 mm (5.25 in) polypropylene coated woofer, 20 mm (.75 in) titanium coated horn-loaded tweeter.
• Includes InvisiBall® mounting hardware and sealed input panel cover.
• Screw-down input terminals.
• 100° x 100° high frequency horn.

Specifications

• Model: CONTROL 25AV-WH
• Frequency Range: 70 Hz - 23 kHz (-10 dB)
• Power Capacity: 200 W Continuous Program Power; 100 W Continuous Pink Noise
• Transformer Taps: 70V: 60 W, 30 W, 15 W, 7.5 W 100V: 60 W, 30 W, 15 W
• Sensitivity: 87 dB SPL, 1 W @ 1 m (3.3 ft)
• Midrange (±1.5 dB, typical): 130 Hz - 14 kHz
• Coverage Angle: 100°H x 100°V
• Maximum SPL (1m): 113 dB continuous peak pink noise 107 dB continuous average pink noise 103 dB continuous average music or speech
• Directivity Factor (Q): 4.9 dB, averaged 500 Hz to 4 kHz
• Directivity Index (DI): 6.9 dB, averaged 500 Hz to 4 kHz
• Impedance: 8 ohms
• Minimum Impedance: 6.7 ohms at 230 Hz
• Crossover Network: Second Order Low Pass, Second Order High Pass, Complex Optimization for Maximally Flat Response
• Drivers: LF: 130 mm (5.25 in) polypropylene-coated paper with WeatherEdge surround, 25 mm (1 in) voicecoil on kapton former HF: 20 mm (.75 in) titanium coated PEI
• Enclosure: High Impact polystyrene
• Grille: Painted stainless steel, black or white to match cabinet, paintable
• Overload Protection: Full-range power limiting to protect network and transducers. Internal fuse to protect during exceptional overload condition
• Outdoor Capability: Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IEC 529 IP-X4 splashproof rating
• Input Connectors: Screw-down terminal strip, zinc-plated copper base, nickel plated metal screws/washers, accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10), plus bare wire. (up to 12 AWG)
• Safety Agency: Transformer is listed per UL1876

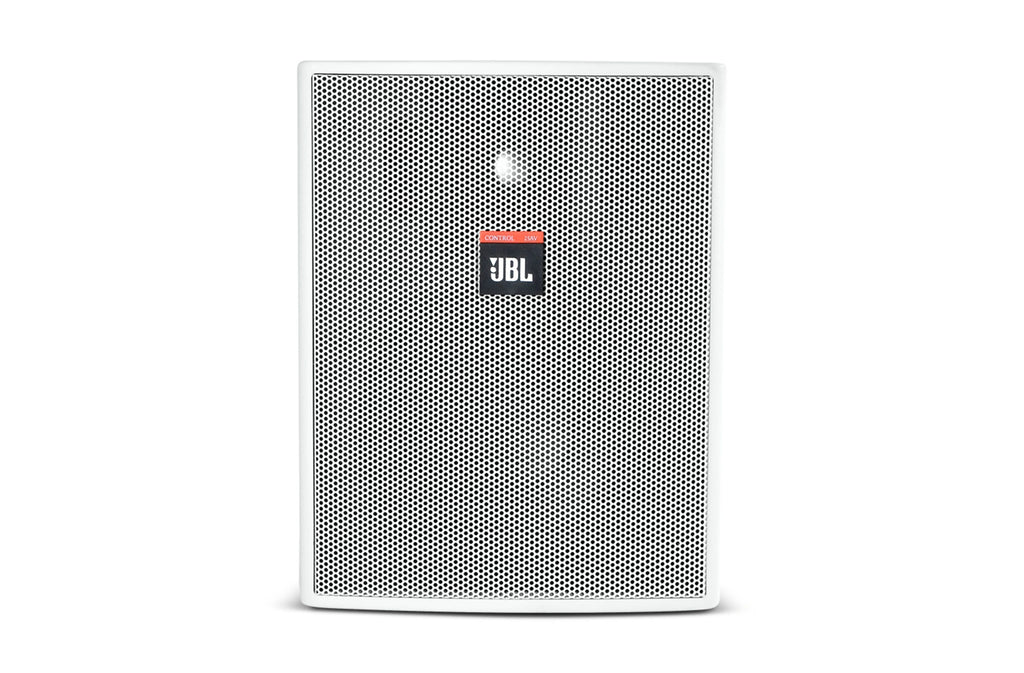

• Colors: Black or white (-WH)
• Rotation: Against wall on InvisiBall Base: 37° vertical 44° horizontal On bracket: 44° all directions
• Dimensions (H x W x D): 236 x 186 x 159 mm (9.3 x 7.4 x 6.3 in)
• Net Weight (each): 4.0 kg (9 lb)
• Shipping Weight (ea): 9.0 kg (20 lb) per pair
• Included Accessories: 1 Pr MTC-PC input panel cover, InvisiBall mounting base, 6 mm x 100 mm InvisiBall hex wrench
• Optional Accessories: MTC-25V: For vertical columnar orientation of up to 3 loudspeakers extension of the woofer surround that MTC-25/23H: For horizontal splaying of two speakers. Three brackets array up to six loudspeakers in a 360° array. MTC-28/25CM: Ceiling-mount adapter.
• Mounting Hardware: InvisiBall™ aimable wall-mounting system included.
• Weight: 10.5 lb
• Dimensions (L x W x H): 5 x 7 x 5 in
• UPC: 50036903318
• Country of Origin: CN
