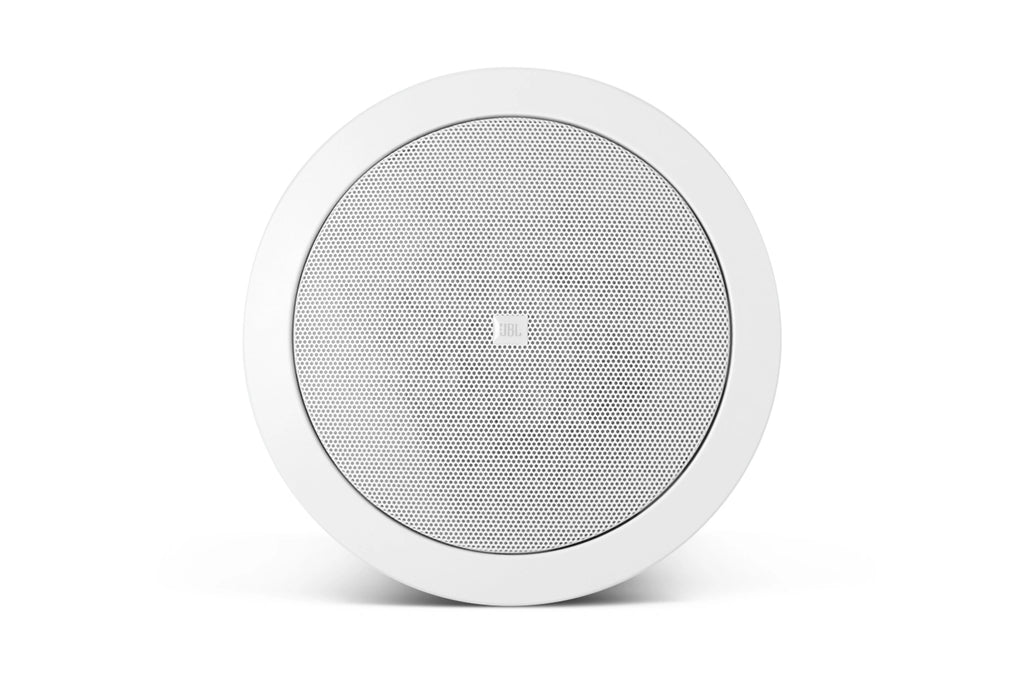

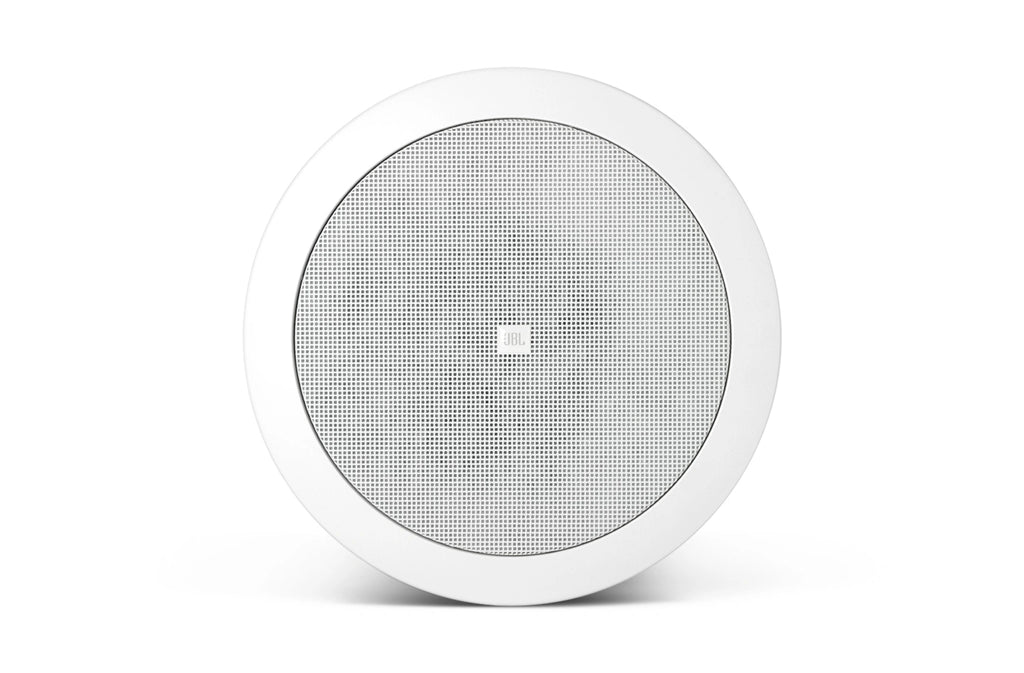

JBL CONTROL 24C MICRO, 4.5" Compact 2-WAY Ceiling Speaker

Background Music Ceiling Loudspeaker The Control 24C Micro is a compact in-ceiling speaker, providing full, high quality sound for background music and music-plus-paging systems.

Features

• Extremely wide 150°coverage.
• Smooth frequency response.

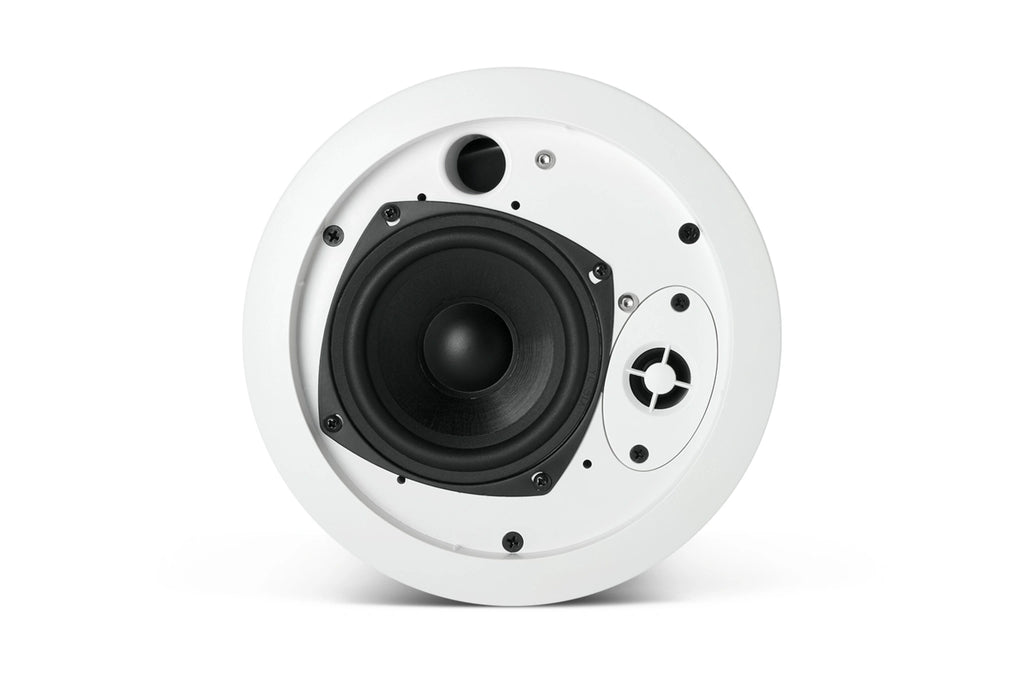

• Components: 4.5 in (115 mm) woofer, injection molded graphite cone with butyl rubber surround. .5 in (12 mm) polycarbonate tweeter for extended response.
• Control 24C Micro is 8 ohms and handles 15 W.
• Shallow 4 in (100 mm) depth.

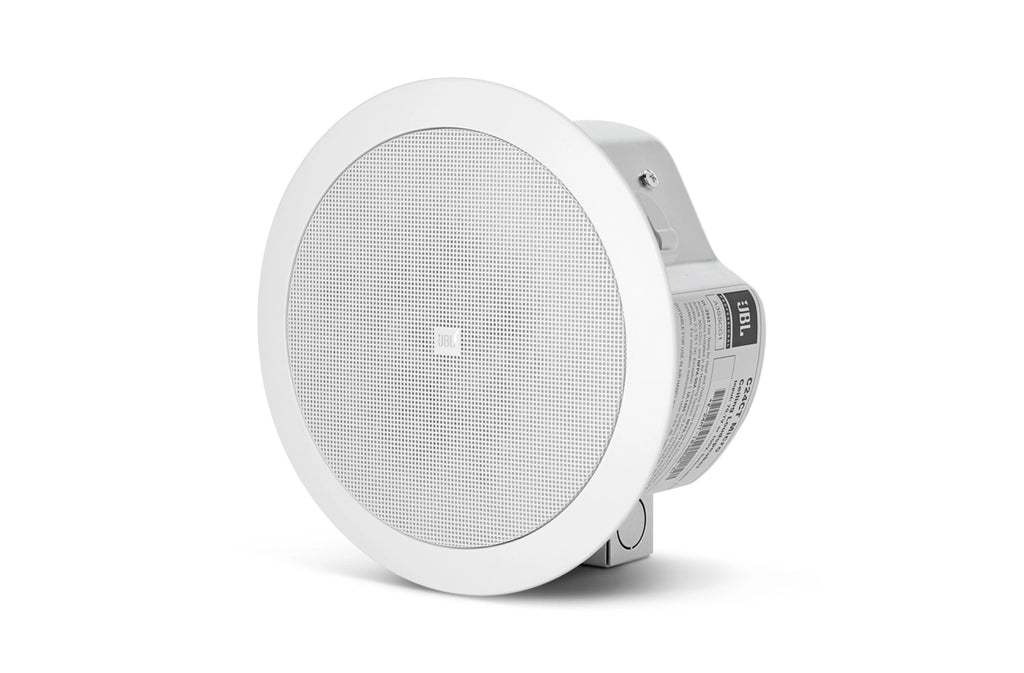

• Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.

Specifications

• Model: CONTROL 24C MICRO
• Frequency Range: 85 Hz - 25 kHz
• Power Rating: IEC System Long-Term Ratings (low-Z direct): 30 Watts Continuous Program Power 15 Watts Continuous Pink Noise (60W peak), 100 hrs
• Sensitivity: 86 dB (100 Hz - 10 kHz)
• Crossover Frequency: 3.5 kHz
• Maximum SPL (1m): 98 dB (104 dB peak)
• Coverage Angle: 150° conical
• Impedance: 7.1 ohms
• Input Connectors: Screw-down terminals.
• Drivers: LF Driver: 115 mm (4.5 in) HF Driver: 12 mm (0.5 in)
• Color: White
• Safety Agency: Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
• Backcan: formed steel (included "blind-mount")
• Baffle/Rim: Medium impact polystyrene, fire rated UL94V-O
• Ceiling Cutout Size: 167 mm (6.6 in) diameter (cardboard cutout template included)
• Included Accessories: C-shaped support backing plate 2 tile support rails (fits both 2 ft and 600 mm tiles) Cutout template, cardboard
• Optional Accessories: MTC-24TR trim ring for retrofit installations MTC-24NC optional new construction bracket, flat MTC-24MR optional mud ring construction bracket
• Plenum Usage: Yes, backcan included
• Weight: 7.3 lb
• Dimensions (L x W x H): 3.31 x 1.89 x 2.75 in
• UPC: 50036904643
• Country of Origin: CN
