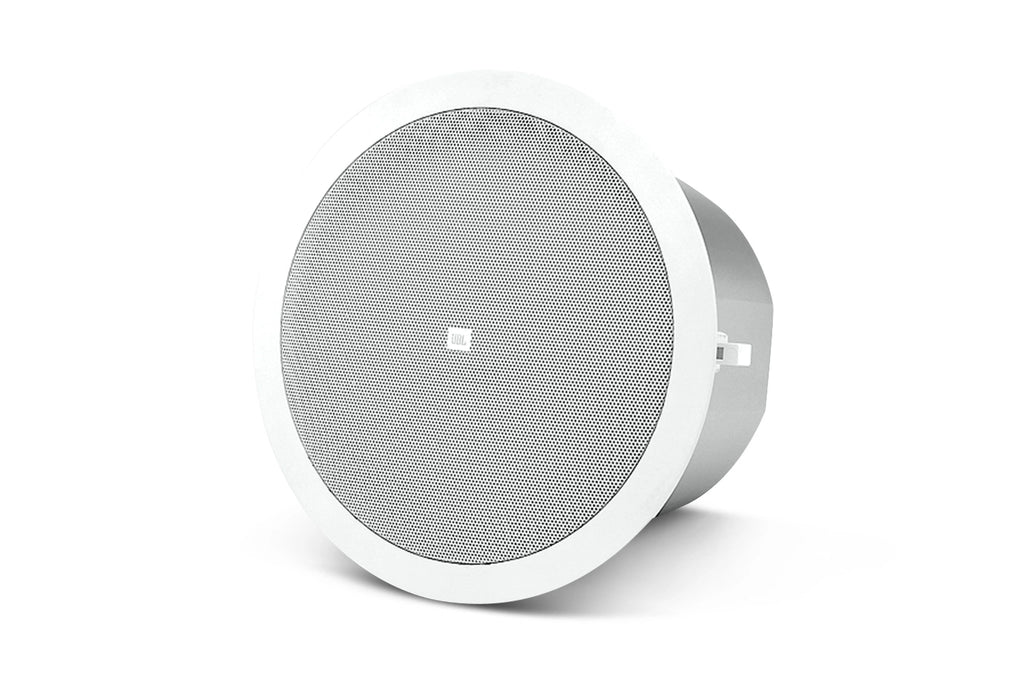

JBL CONTROL 24C, 4" 2-WAY Coaxial Ceiling Speaker

Background/ Foreground Ceiling Loudspeakers The Control 24C is a compact in-ceiling speakers, providing full, high quality sound for background music and music-plus-paging systems.

Features

• Coaxially mounted 100 mm (4 in) woofer with butyl rubber surround and 19 mm (.75 in) titanium coated diffraction-loaded tweeter.
• High power, wide frequency response and low distortion for high sound level capability.
• Wide coverage allows fewer speakers, reducing the cost of the installed sound system without sacrificing performance.
• JBL’s exclusive SonicGuard™ overload protection allows higher operational levels and improved system reliability.
• Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.

Specifications

• Model: CONTROL 24C
• Frequency Range: 80 Hz - 20 kHz
• Power Rating: IEC System Long-Term Ratings (low-Z direct): 80 Watts Continuous Program Power 40 Watts Continuous Pink Noise (160W peak), 100 hrs
• Sensitivity: 86 dB SPL @ 1 m (3.3 ft)
• Coverage Angle: 130° conical
• Directivity Factor (Q): 2.4 dB averaged 500 Hz to 4 kHz
• Directivity Index (DI): 3.8 dB averaged 500 Hz to 4 kHz
• Maximum SPL (1m): 102 dB (low-impedance, 108 dB peak)
• Impedance: 16 ohms
• Input Connectors: Removable 4-pin locking connector with screw-down terminals.
• Drivers: LF Driver: 100 mm (4.0 in) HF Driver: 19 mm (0.75 in)
• Color: White
• Safety Agency: Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
• Backcan: formed steel (included "blind-mount")
• Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0
• Ceiling Cutout Size: 168 mm (6.6 in) diameter (cardboard cutout template included)
• Included Accessories: C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector
• Plenum Usage: Yes, backcan included
• Weight: 8.25 lb
• Dimensions (L x W x H): 13.25 x 4.5 x 13 in
• UPC: 50036905046
• Country of Origin: CN
